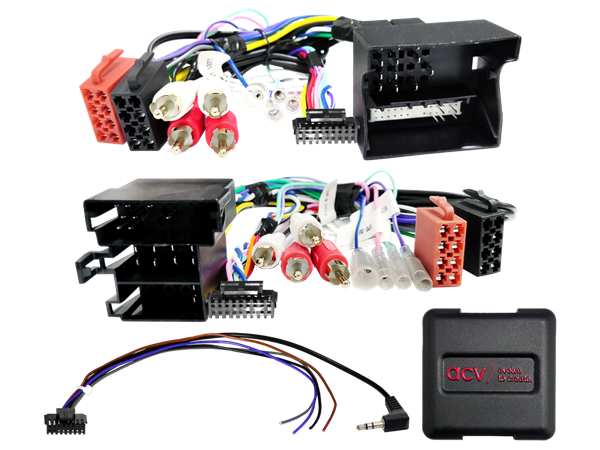

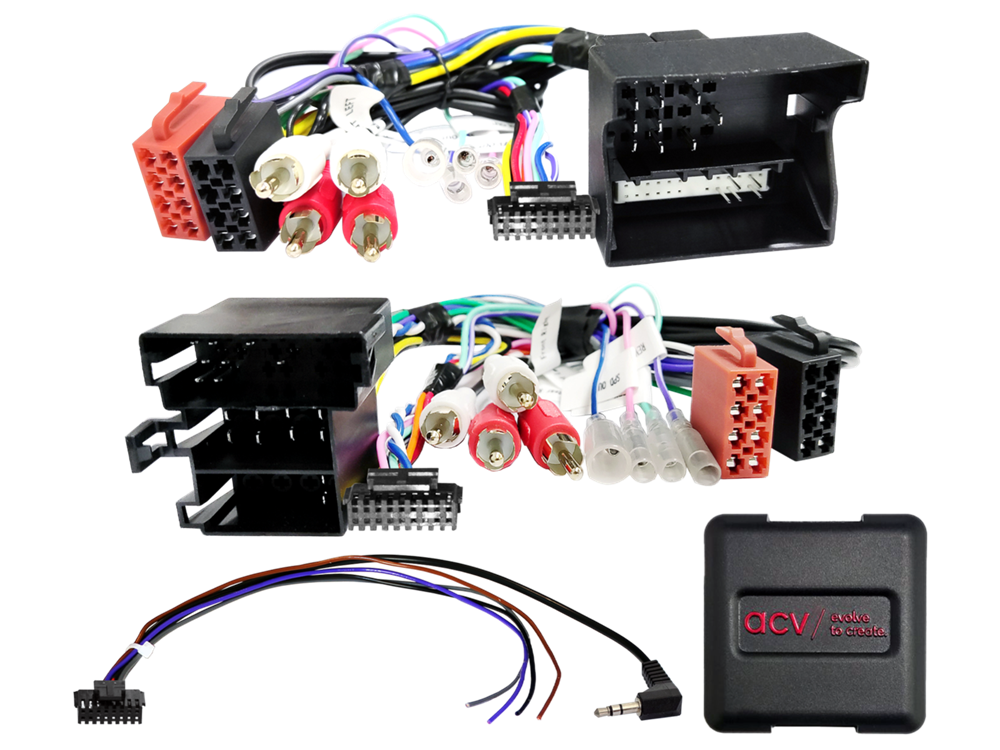

RAT INTERFACE TIL AUDI. HALV OG FULD AKTIVE BILER (ALL INCL:)

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.

Passer til følgende modeller:



Note:

CAN Bus

connector: ISO / Mini ISO
connector: 40 Pin Quadlock VAG
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM amplified system 2 channel / 4 channel > RCA(m) front/rear

blue: +12V amplified system remote

vehicles with Blaupunkt / Matsushita / Grundig Chorus II / Concert II / Symphony II 1-DIN OEM HU with 2 rotary knobs
vehicles with Blaupunkt / Matsushita / Grundig Chorus II / Concert II / Symphony II 2-DIN OEM HU
vehicles with RNS-E 16:9 OEM Nav Sat

vehicles without BNS 5.0 monochrome OEM Sat Nav*

retrofit HU with pre amp power more than 3V

retrofit HU ISO connector with pre amp output less than 3V:
SWC Audi A3/A3/A4/A6/TT ISO/Mini ISO Amp 2/4 channel > ietm: 4xsad008

compatible with all vehicles from LFB Interface:

SWC Audi A3/A4/A6/R8/TT 40Pin Quadlock Amp 2/4 channel> item: 42xad002
SWC Audi A3/A3/A4/A6/TT ISO/Mini ISO Amp 2/4 channel > item: 42xad008

vehicles Audi TT 08/2010 - 04/2010 with non-functioning OEM sound system:
amplified system coding from CAN Bus activation to remote activation required if possible
Address J525 > activation 1 remote (0xxx?xx)

vehicles with amplifier switch-off noise test additionally:
Noise filter NF GND decouple RCA > item: 30.5000-01

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Audi A1 (8X) 07/2010 - 04/2018**
Audi A2 (8Z) 11/1999 - 07/2005
Audi A3 (8L) 08/2000 - 06/2003
Audi A3 (8P) 05/2003 - 04/2005
Audi A3 (8P) 10/2004 - 04/2013
Audi A4 B6 (8E) 11/2000 - 10/2005
Audi A4 B7 (8E) 11/2004 - 02/2009
Audi A6 (C5/B4) 05/2001 - 03/2006
Audi Q3 (8U) 10/2011 - 11/2014**
Audi Q3 (8U) 02/2015 - 06/2018**
Audi R8 (42) 04/2007 - 05/2015
Audi TT (8N) 09/1998 - 07/2006
Audi TT (8J) 09/2006 - 04/2010
Audi TT (8J) 08/2010 - 04/2014

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min

SWC

OEM amplified system 2 channel / 4 channel

Ratbetjeningsinterface, Can-bus til audi med bose og halv aktive systemer.Leveres med kabler til både uadlock og mini iso. Bemærk ny radio der monteres skal have rca/phono ud for at virke .
