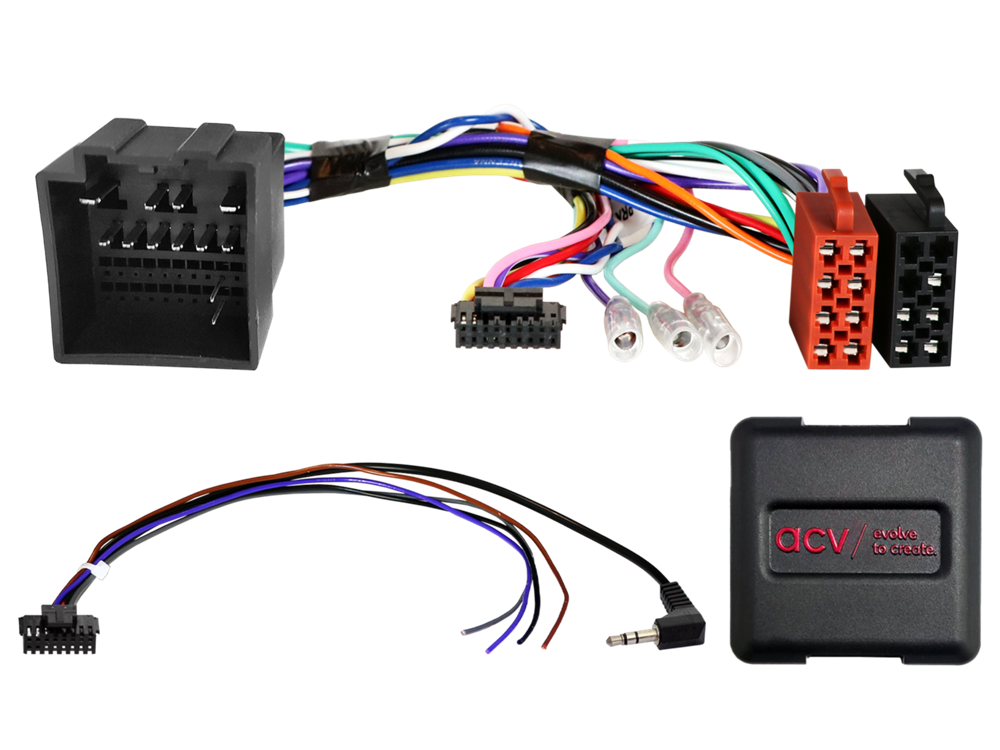

RAT INTERFACE TIL FORD FIESTA/TRANSIT 2018 > (ALL INCL)

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.

Passer til følgende modeller:

CAN Bus

connector: 32 Pin Ford
connector: OEM SWC > 3,5mm Jack / loose wire

vehicles with OEM rear view camera:
Rear view camera adapter OEM camera 52Pin Fiat/32Pin Ford > item: 771000-2000

yellow: Video(+)
black: Video(-)

check assignment by measuring before installation
Pin 14: Video(+)
Pin 25: Video(-)

troubleshooting for flickering camera image:
connect Video(-) Pin 25 to Pin 24

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Ford Fiesta (JHH) 06/2017 - 03/2022
Ford Fiesta (JHH) 03/2022 - 2024
Ford Transit (FAC/FAD) 06/2019 - 2024
Ford Transit Custom (FAC/FAD) 01/2018 - 2024

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal
Kan udbygges til modeller med kamera, se herunder for kamera bibeholdelse.
