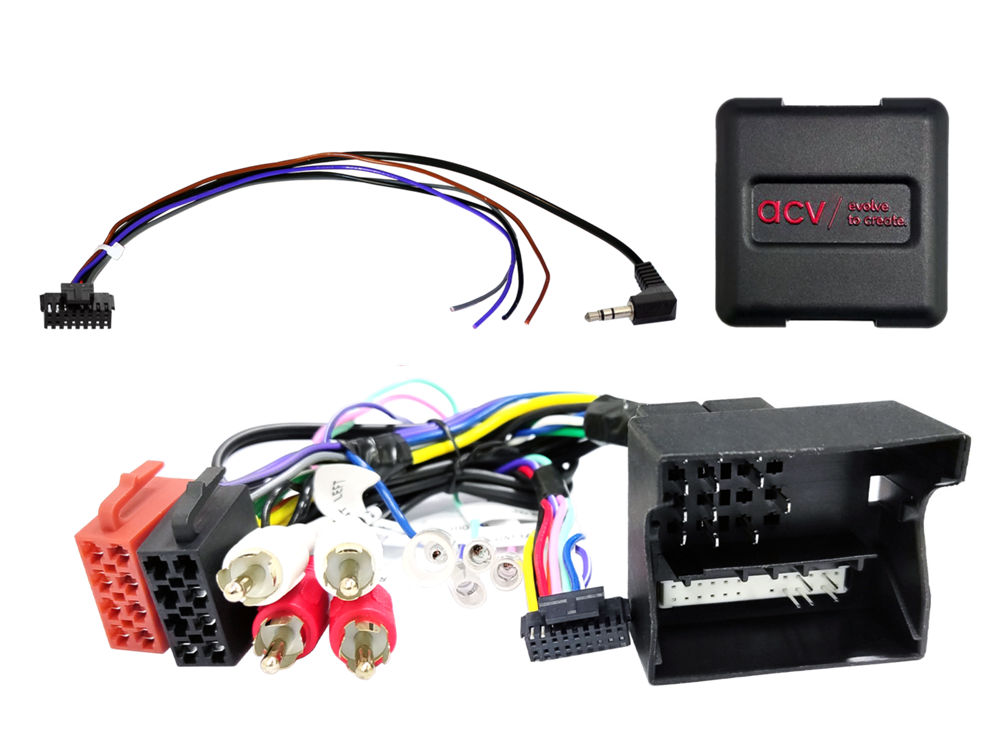

RAT INTERFACE TIL AUDI 2003> MED CAN-BUS (ALL INCL)

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.

Passer til følgende modeller:
Note:
Virker ikke hvis ny headunit har mindre end 3 volt rca udgange, Ved mindre end 3 V så brug ad006
CAN Bus

connector: 40 Pin Quadlock VAG
connector: 2 channel / 4 channel OEM amplified system > RCA(m) front/rear*

for unknown Audi connector variant > item: 42sad00c with ISO/Mini ISO und 40 Pin Quadlock wiring harness

vehicles with Blaupunkt / Matsushita / Grundig Chorus II / Concert II / Symphony II 2 DIN OEM HU
vehicles with RNS-E 16:9 OEM Nav Sat

vehicles without BNS 5.0 monochrome OEM Sat Nav*

retrofit HU with pre amp power more than 3V**

blue: +12V amplified system remote

Vehicle application:

Audi A1 (8X) 07/2010 - 04/2018***
Audi A3 (8P) 05/2003 - 04/2005
Audi A3 (8P) 10/2004 - 04/2013
Audi A4 B6 (8E) 11/2000 - 10/2005
Audi A4 B7 (8E) 11/2004 - 02/2009
Audi A6 (C5/B4) 05/2001 - 03/2006****
Audi Q3 (8U) 10/2011 - 11/2014***
Audi Q3 (8U) 02/2015 - 06/2018***
Audi R8 (42) 04/2007 - 05/2015
Audi TT (8J) 09/2006 - 04/2010
Audi TT (8J) 08/2010 - 04/2014

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
green: GND park brake signal

load capacity total outputs: 100 mA max.

current requirement more than 100 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC

OEM amplified system 2 channel / 4 channel
***vehicles with Chorus OEM HU with monochrome display
****vehicles with RNS-E OEM Sat Nav.
