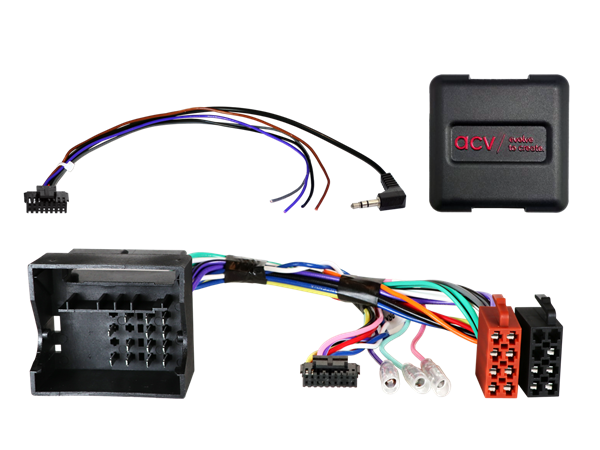

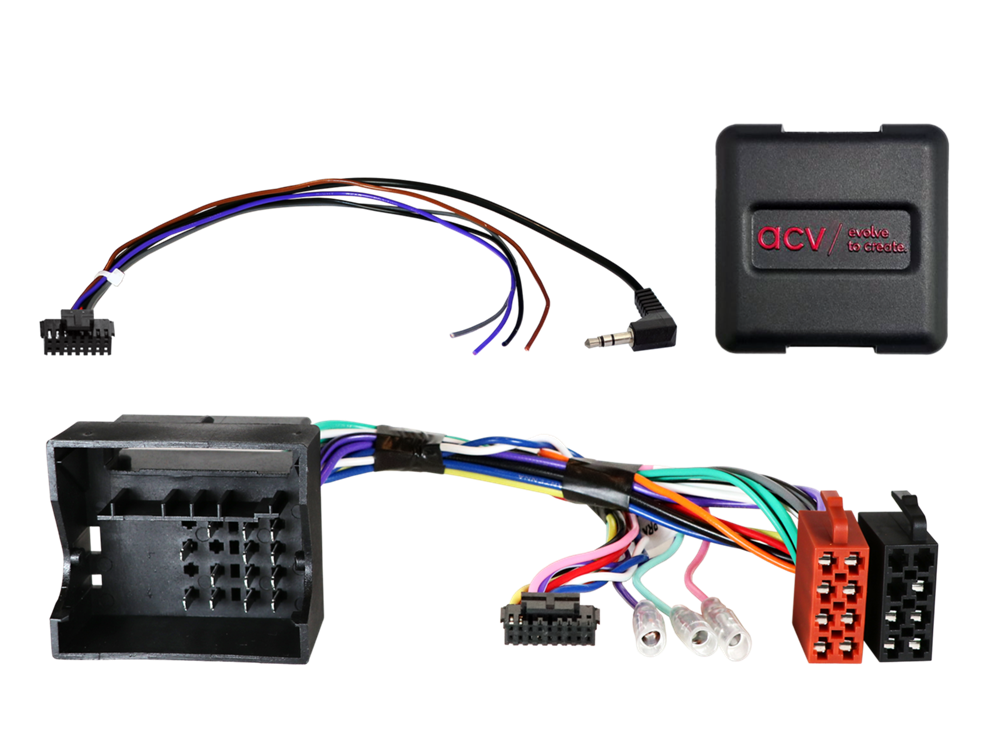

RAT INTERFACE TIL VW,SEAT,SKODA MED CAN-BUS 2005> (ALL INCL) Forside » VOGNLISTE » VOLKSWAGEN » PASSAT (B6/3C)(2005 - 2010) Varenr.: 42xvw002 DKKSEK PRIS ER PR. Stk Pris ved køb af 1 Stk,599,95 DKK På lager hos os Download manual Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening. Det gør det muligt at styre primær funktioner på radioen. Passer til følgende modeller: Note: CAN Bus connector: 40 Pin Quadlock VAG connector: OEM SWC > 3,5mm Jack / loose wire vehicles without OEM amplified system vehicles with OEM amplified system: LFB Audi/Seat/Skoda/VW diverse Fahrzeuge Quadlock > item: LFB Audi/Seat/Skoda/VW diverse Fahrzeuge Quadlock vehicles Seat without Seat Exeo (3R) 03/2009 - 05/2013 vehicles Skoda with Bolero / Stream OEM HU vehicles Skoda with Amundson / Columbus OEM Sat Nav vehicles Skoda without Technisat OEM HU vehicles with RCD200 / RCD210 / RCD300 / RCD310 / RCD500 / RCD510 OEM HU vehicles with RNS315 / RNS510 OEM Sat Nav vehicles without RCD320 OEM HU with ISO connector vehicles without OEM amplified system dip switch settings for the retrofit device manufacturer (look into the manual) Vehicle application: Seat Alhambra (7N) 10/2010 - 04/2015 Seat Altea (5P) 06/2004 - 03/2009 Seat Altea (5P) 04/2009 - 07/2015 Seat Ibiza (6J) 06/2008 - 02/2012 Seat Ibiza (6J) 03/2012 - 06/2015 Seat Leon (1P) 09/2005 - 03/2009 Seat Leon (1P) 04-2009 - 11/2012 Seat Mii (AA) 12/2011 - 06/2019* Seat Toledo (5P) 01/2005 - 10/2009 Seat Toledo (NH) 03/2013 - 05/2015 Skoda Skoda Citigo (AA) 06/2012 - 05/2017* Skoda Fabia (5J) 03/2007 - 04/2010 Skoda Fabia (5J) 06/2010 - 06/2014 Skoda Octavia (1Z) 06/2004 - 05/2009 Skoda Octavia (1Z) 01/2009 - 03/2013 Skoda Rapid (NH) 10/2012 - 04/2015 Skoda Roomster (5J) 09/2006 - 04/2010 Skoda Roomster (5J) 06/2010 - 02/2015 Skoda Superb (3T) 07/2008 - 05/2013 Skoda Superb (3T) 06/2013 - 05/2015 Skoda Yeti (5L) 08/2009 - 10/2013 VW VW Amarok (2H) 03/2010 - 08/2016 VW Beetle (16) 11/2011 - 06/2016 VW Caddy III (2K) 10/2003 - 08/2010 VW Caddy III (2K) 09/2010 - 04/2015 VW Caddy IV (DU) 06/2015 - 09/2020** VW CC (3C/35) 06/2008 - 08/2016 VW Eos (1F) 05/2006 - 10/2010 VW Eos (1F) 10/2010 - 04/2015 VW Fox (5Z) 04/2005 - 08/2011 VW Fusca (Brazil) 2005 - 2011 VW Golf V (1K) 11/2003 - 09/2008 VW Golf V (1KM) 06/2007 - 10/2009 VW Golf V Plus (1KP) 01/2005 - 02/2009 VW Golf VI (1K) 11/2008 - 09/2012 VW Golf VI (1KM) 11/2009 - 04/2013 VW Golf VI Plus (1KP) 03/2009 - 01/2014 VW Jetta III (1K5/1KM) 09/2005 - 10/2010 VW Jetta IV (162) 01/2011 - 08/2014 VW Magotan (Asia) 2005 - 2011 VW Passat B6 (3C2) 11/2005 - 07/2010 VW Passat B6 (3C5) 08/2005 - 07/2010 VW Passat B7 (3C/362) 11/2010 - 10/2014 VW Polo IV (9N) 03/2005 - 03/2009 VW Polo V (6R) 06/2009 - 01/2014 VW Scirocco III (13) 08/2008 - 04/2014 VW Sagitar (China) 2005 - 2011 VW Sharan II (7N) 08/2010 - 04/2015 VW Suran 2009 - 2015 VW Tiguan I (5N) 10/2007 - 02/2011 VW Tiguan I (5N) 06/2011 - 04/2016 VW Touareg I (7L) 11/2006 - 02/2010 VW Touran (1T) 01/2003 - 09/2006 VW Touran (1T) 11/2006 - 04/2010 VW Touran (1T) 08/2010 - 04/2015 VW UP! (AA) 12/2011 - 06/2016* VW Vento (Mexico) 2005 - 2011 Following signals are provided: Reimported vehicles or vehicles with different software may be incompatible in functions. red: +12V ignition clamp 15 orange: +12V illumination clamp 58 purple/white: +12V reverse gear signal pink: speed pulse signal green: GND park brake signal load capacity outputs: 250 mA max. current requirement more than 250 mA: 1 relay coil resistance 75 Ohm min. 2 relays coil resistance 150 Ohm min. SWC *vehicles without OEM amplified system **vehicles with Composition Audio MIB Entry OEM HU with front AUX/SD/USB General installation instructions: Verification: 1: Check all operating functions and vehicle setting functions of the OEM HU. 2: Disconnect the OEM HU voltage-free. 3: Check all interface connections for correctness voltage-free. Connection and connection sequence: 1: Check settings and hardware configuration of the interface voltage-free. 2: Check configuration of the HU connection cable voltage-free. 3: Connect the HU connection cable according to the operating instructions of the retrofit HU. 4: Connect all other connections according to the operating instructions of the retrofit HU. 5: Connect the entire installation to the vehicle with the main connection last. 6: Software configuration of the interface according to the instructions in the item text and in the manual. 7: Configure the retrofit HU according to the operating instructions of the retrofit device steering wheel remote control/camera/handsfree kit/antenna phantom powering and others. 8: Function test of steering wheel remote control and vehicle Changes to the configuration of the interface and the HU connection cable: 1: Change configuration voltage-free 2: Reconnection see above 5 to 8 In case of malfunction of the interface or the vehicle: 1: Reinstall the OEM HU 2: Operate the OEM HU 3: Establish CAN bus shut down 4: Check the hardware configuration of the interface 5: Reconnection after CAN Bus shut down see above 5 and 6 More connections, connection changes, alternative connections, connections of loose cables or connection extensions of loose cables specified in the information text or the manual are for orientation purposes only and for the information of trained specialist installer. More connections, changes to the cable configuration of the wiring harness or use of alternative connections or connection extensions: 1: Connections and changes are to be carried out exclusively by trained specialist installer. 2: Connections and modifications must be checked before connection for any manufacturer approvals or manufacturer warranty conditions that may be affected by the modifications. 3: Connections and modifications must be checked for function and correctness by measuring and comparing them with the vehicle's cable assignment diagram before connection. 4: Connections and modifications are made on the user's own responsibility without guarantee of function. 5: Connections and modifications are made on the user's own responsibility without any guarantee of damage to the vehicle, the retrofit device or the interface. 6: Modifications to the pre-assembled wiring harness may invalidate the product's warranty. Kunder købte også RADIORAMME SEAT LEON 2005> GRÅ/ANTRAZIT DKK 99,00 DOBBELT UNIVERSAL ISO (alm 113MM HØJ) DKK 169,00 HVID FAKRA (B) TIL DIN 12V PHANTOM ANTENNE ADAPTOR DKK 89,00
