Varenr.: 42xfa019
På lager hos vores leverandør
Download manual

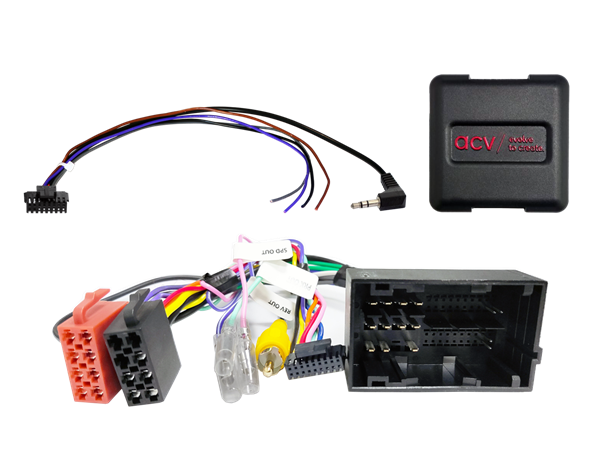

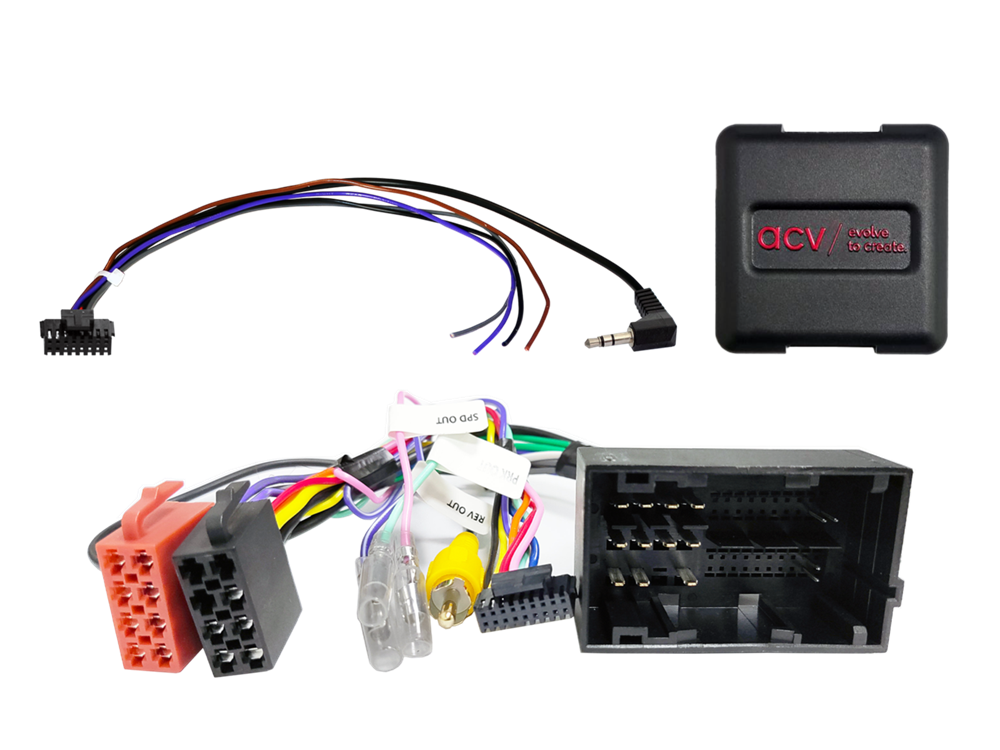

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.
Passer til følgende modeller:
CAN Bus
connector: 52 Pin Fiat
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM rear view camera > RCA(m) yellow rear viev camera input
vehicles with Continental 250VP1 / 250VP2 OEM HU
vehicles with UConnect OEM HU
vehicles with Daiichi OEM HU*
dip switch settings for the retrofit device manufacturer (look into the manual)
vehicles with error display trip meter after installation > dip switch position:
adjust dip switch position voltage-free
dip switch 1 on / dip switch 2 off / cut or loop white wire
dip switch 1 off / dip switch 2 on / cut or loop white wire
dip switch 6 on > 250VP1 OEM HU
dip switch 5 on > 250VP2 OEM HU
cut white loop > Blue&Me OEM function
dip switch 1 off / dip switch 2 off / cut white loop > Daiichi OEM Gerät
after changeover CAN Bus must shut down
vehicles with persistent error display and other software package not compatible
vehicle settings not supported**
high beam assistance not supported
driver assistance systems not supported
date/time adjustment not supported**
Vehicle application:
Citroen
Citroen Jumper (250) 05/2014 - 10/2022*
Citroen Jumper (250) 10/2022 - 2024*
Citroen e-Jumper (259 10/2021 - 2024
Citroen Relay (250) 2006- 2024*
Fiat
Fiat 500 (ZAF 312) 07/2016 - 2023
Fiat 500L (ZAF 199) 10/2012 - 07/2017
Fiat 500L (ZAF 199) 07/2017 - 03/2022
Fiat Doblo (ZAF 263) 01/2015 - 06/2022
Fiat Ducato (ZFA 250) 05/2014 - 11/2021*
Opel
Opel Movano Cargo C (Y) 10/2021 - 01/2024*
Opel Movano Cargo C (Y) 01/2024 - 2024*
Opel Movano Electrik Cargo C (Y) 10/2021 - 01/2024*
Opel Movano Electrik Cargo C (Y) 01/2024 - 2024*
Peugeot
Peugeot Boxer (Y) 09/2014 - 12/2019*
Peugeot Boxer (Y) 08/2018 - 2024*
Peugeot e-Boxer (Y) 10/2021 - 2024*
Following signals are provided:
Reimported vehicles or vehicles with different software may be incompatible in functions.
red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal
load capacity outputs: 250 mA max.
current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.
SWC
*vehicles with Daiichi OEM HU wiring harness black cables > Dismantle adapter wiring harness radio slot driver's side
*vehicles with direct wired OEM Daiichi HU coloured cables not compatible > contact the support/look item: 42xfa016
**vehicle setting retention:
Infodapter Citroen/Fiat/Opel/Peugeot 52Pin Fiat VP1/VP2 > item: 43uft01
General installation instructions:
Verification:
1: Check all operating functions and vehicle setting functions of the OEM HU.
2: Disconnect the OEM HU voltage-free.
3: Check all interface connections for correctness voltage-free.
Connection and connection sequence:
1: Check settings and hardware configuration of the interface voltage-free.
2: Check configuration of the HU connection cable voltage-free.
3: Connect the HU connection cable according to the operating instructions of the retrofit HU.
4: Connect all other connections according to the operating instructions of the retrofit HU.
5: Connect the entire installation to the vehicle with the main connection last.
6: Software configuration of the interface according to the instructions in the item text and in the manual.
7: Configure the retrofit HU according to the operating instructions of the retrofit device steering wheel remote control/camera/handsfree kit/antenna phantom powering and others.
8: Function test of steering wheel remote control and vehicle
Changes to the configuration of the interface and the HU connection cable:
1: Change configuration voltage-free
2: Reconnection see above 5 to 8
In case of malfunction of the interface or the vehicle:
1: Reinstall the OEM HU
2: Operate the OEM HU
3: Establish CAN bus shut down
4: Check the hardware configuration of the interface
5: Reconnection after CAN Bus shut down see above 5 and 6
More connections, connection changes, alternative connections, connections of loose cables or connection extensions of loose cables specified in the information text or the manual are for orientation purposes only and for the information of trained specialist installer.
More connections, changes to the cable configuration of the wiring harness or use of alternative connections or connection extensions:
1: Connections and changes are to be carried out exclusively by trained specialist installer.
2: Connections and modifications must be checked before connection for any manufacturer approvals or manufacturer warranty conditions that may be affected by the modifications.
3: Connections and modifications must be checked for function and correctness by measuring and comparing them with the vehicle's cable assignment diagram before connection.
4: Connections and modifications are made on the user's own responsibility without guarantee of function.
5: Connections and modifications are made on the user's own responsibility without any guarantee of damage to the vehicle, the retrofit device or the interface.
6: Modifications to the pre-assembled wiring harness may invalidate the product's warranty.
