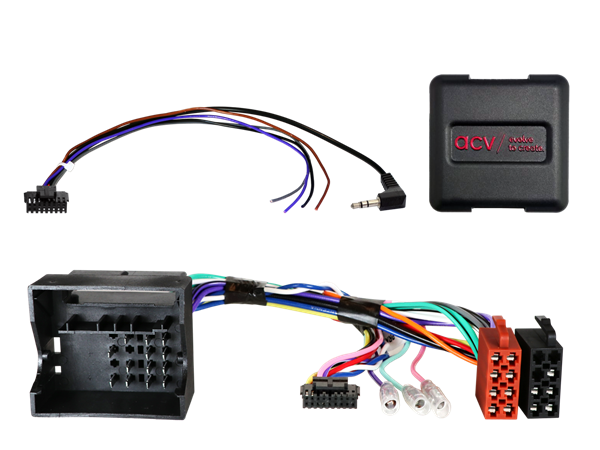

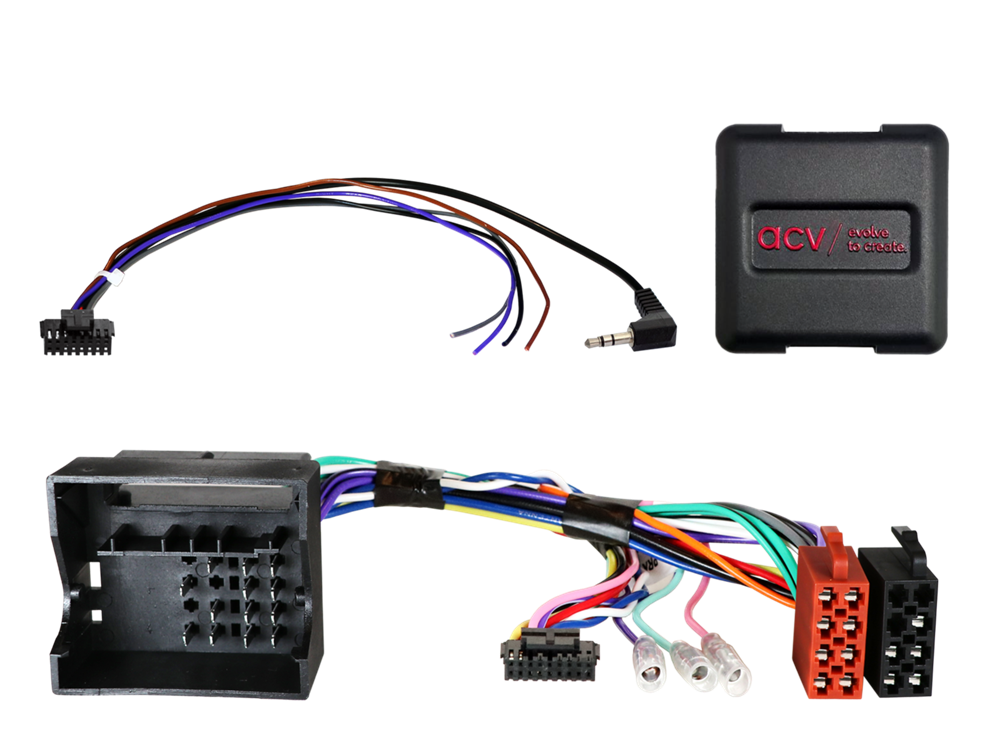

RAT INTERFACE TIL MERCEDES DIV 2004> QUADLOCK 40 PIN (ALL INCL) Forside » VOGNLISTE » MERCEDES » A-KLASSE (W169)(2004 - 2012) Varenr.: 42xmc001 DKKSEK PRIS ER PR. Stk Pris ved køb af 1 Stk,599,95 DKK 2 Stk På lager hos vores leverandør Download manual Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening. Det gør det muligt at styre primær funktioner på radioen. Note: CAN Bus connector: 40 Pin Quadlock Mercedes connector: OEM SWC > 3,5mm Jack / loose wire vehicles with 2-DIN Audio 20 OEM HU vehicles with 2-DIN Audio 50 APS Comand NTG2 / NTG2.5 OEM Sat Nav vehicles Mercedes without open dash vehicles Mercedes without 1-DIN OEM HU vehicles with Audio 50 APS Comand NTG2 / NTG2.5 OEM Sat Nav: clock adjustment not supported > vehicles code to Audio 20 OEM HU if possible vehicles Mercedes with Harman Kardon OEM amplified system*/** dip switch settings for the retrofit device manufacturer (look into the manual) Vehicle application: Mercedes Mercedes A-class (C169/W169) 10/2004 - 04/2008 Mercedes A-class (C169/W169) 06/2008 - 06/2012 Mercedes B-class (T245) 07/2005 - 04/2008 Mercedes B-class (T245) 04/2008 - 09/2011 Mercedes C-class (CL203/S203/W203) 02/2004 - 09/2007 Mercedes CLC-class (CL203) 06/2008 - 02/2011 Mercedes CLK-class (W209) 04/2005 - 01/2010 Mercedes CLS-classe (C219) 04/2008 - 09//2010* Mercedes E-class (S211/W211) 03/2008 - 01/2009 Mercedes G-class (W463) 04/2007 - 06/2008 Mercedes G-class (W164) 09/2008 - 06/2012 Mercedes GL-class (X164) 09/2006 - 05/2009 Mercedes GL-class (X164) 05/2009 - 07/2012 Mercedes M-class (W164) 07/2005 - 04/2008 Mercedes M-class(W164) 10/2008 - 07/2011 Mercedes ML (W164) 07/2005 - 04/2008** Mercedes ML (W164) 10/2008 - 07/2011** Mercedes R-class (W251) 09/2005 - 05/2007 Mercedes R-class (W251) 05/2007 - 05/2010 Mercedes SLK-class (R171) 04/2008 -03/2011 Mercedes Sprinter (W906) 04/2006 - 08/2013 Mercedes Sprinter (W906) 08/2013 - 05/2018 Mercedes Vito/Viano (W639) 04/2006 - 08/2010 Mercedes Vito/Viano (W639) 09/2010 - 03/2014 Smart Smart For Four (W454) 01/2004 - 04/2007*** Following signals are provided: Reimported vehicles or vehicles with different software may be incompatible in functions. red: +12V ignition clamp 15 orange: +12V illumination clamp 58 purple/white: +12V reverse gear signal pink: speed pulse signal green: GND park brake signal load capacity outputs: 250 mA max. current requirement more than 250 mA: 1 relay coil resistance 75 Ohm min. 2 relays coil resistance 150 Ohm min. SWC *vehicles with Harman Kardon OEM amplified system >item.: 13-1190-53 **vehicles with Harman Kardon OEM amplified system > item: 13-1190-52 ***vehicles with 2-DIN OEM CD HU ***vehicles with Comand OEM Sat Nav 40 Pin Quadlock General installation instructions: Verification: 1: Check all operating functions and vehicle setting functions of the OEM HU. 2: Disconnect the OEM HU voltage-free. 3: Check all interface connections for correctness voltage-free. Connection and connection sequence: 1: Check settings and hardware configuration of the interface voltage-free. 2: Check configuration of the HU connection cable voltage-free. 3: Connect the HU connection cable according to the operating instructions of the retrofit HU. 4: Connect all other connections according to the operating instructions of the retrofit HU. 5: Connect the entire installation to the vehicle with the main connection last. 6: Software configuration of the interface according to the instructions in the item text and in the manual. 7: Configure the retrofit HU according to the operating instructions of the retrofit device steering wheel remote control/camera/handsfree kit/antenna phantom powering and others. 8: Function test of steering wheel remote control and vehicle Changes to the configuration of the interface and the HU connection cable: 1: Change configuration voltage-free 2: Reconnection see above 5 to 8 In case of malfunction of the interface or the vehicle: 1: Reinstall the OEM HU 2: Operate the OEM HU 3: Establish CAN bus shut down 4: Check the hardware configuration of the interface 5: Reconnection after CAN Bus shut down see above 5 and 6 More connections, connection changes, alternative connections, connections of loose cables or connection extensions of loose cables specified in the information text or the manual are for orientation purposes only and for the information of trained specialist installer. More connections, changes to the cable configuration of the wiring harness or use of alternative connections or connection extensions: 1: Connections and changes are to be carried out exclusively by trained specialist installer. 2: Connections and modifications must be checked before connection for any manufacturer approvals or manufacturer warranty conditions that may be affected by the modifications. 3: Connections and modifications must be checked for function and correctness by measuring and comparing them with the vehicle's cable assignment diagram before connection. 4: Connections and modifications are made on the user's own responsibility without guarantee of function. 5: Connections and modifications are made on the user's own responsibility without any guarantee of damage to the vehicle, the retrofit device or the interface. 6: Modifications to the pre-assembled wiring harness may invalidate the product's warranty. Måske er du også interesseret i følgende produkter AKTIV SYSTEM ADAPTER MERCEDES RCA TIL MOST DKK 1.649,00 AKTIV SYSTEM ADAPTER MERCEDES/PORSHE RCA TIL MOST DKK 1.649,00
