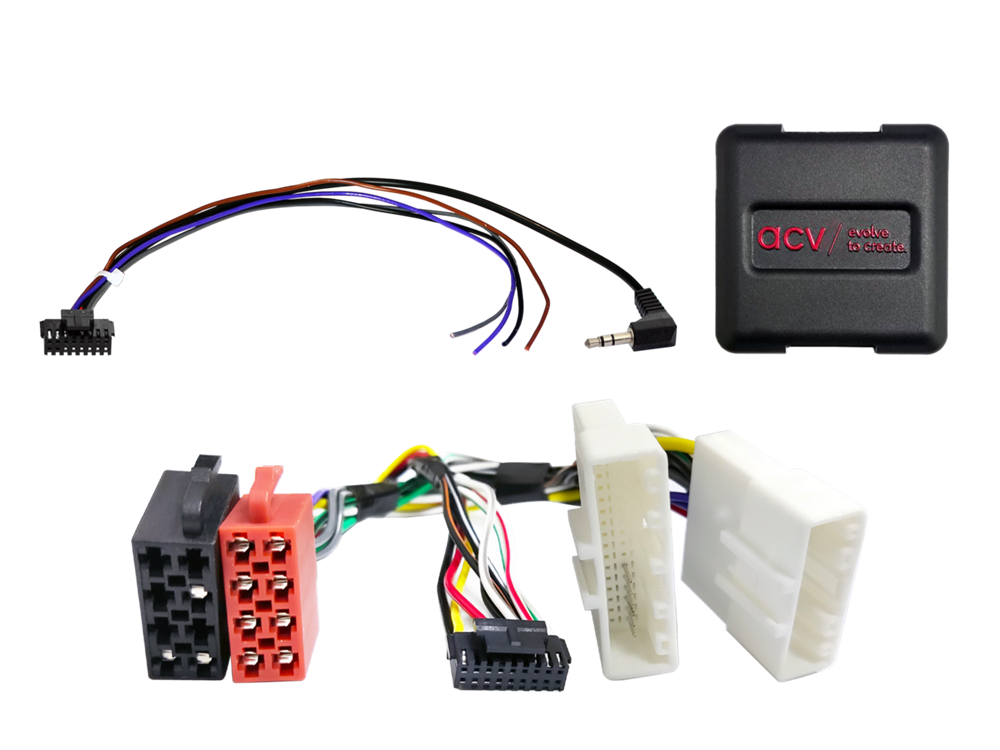

RAT INTERFACE TIL DIV. MED 20/32 PIN NISSAN STIK (ALL INCL) Forside » VOGNLISTE » DACIA » LODGY (2012 >) Varenr.: 42xvx007 DKKSEK PRIS ER PR. Stk Pris ved køb af 1 Stk,449,95 DKK På lager hos vores leverandør Download manual Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening. Det gør det muligt at styre primær funktioner på radioen. Passer til følgende modeller: Note: analog connector: 20 Pin / 32 Pin Nissan connector: OEM SWC > 3,5mm Jack / loose wire vehicles with Visteon Anatel RO13-X07 2-DIN OEM HU vehicles with Browse 1-DIN OEM HU with 2 x black rotary knob vehicles with open dash vehicles without OEM Sat Nav vehicles 2018>: red +12V ignition supply clamp 15 fusebox fused > if necessary vehicles 2018>: interface red +12V ignition supply clamp 15 fusebox fused > if necessary vehicles Renault Trafic Renault Trafic III (J/JL) 09/2019 - 03/2022 with PDC additional: Chimes Interface PDC Nissan Primastar/Renault Trafic > item: 42cxpdc-trafic3-1 Nissan Primastar (4/J4) 09/2021 - 2023 with PDC additional: Chimes Interface PDC Nissan Primastar/Renault Trafic > item: 42cxpdc-trafic3-1 dip switch settings for the retrofit device manufacturer (look into the manual) Vehicle application: Dacia Dacia Dokker (SD) 03/2017 - 11/2020* Dacia Dokker Stepway (SD) 03/2017 - 11/2020* Dacia Duster (SR) 01/2018 - 07/2021* Dacia Lodgy (SD) 03/2017 - 01/2022* Dacia Lodgy Stepway (SD) 03/2017 - 02/2022* Dacia Logan MCV (SD) 11/2016 - 09/2020* Dacia Logan MCV Stepway (SR) 05/2017 - 09/2020* Dacia Sandero (SD) 11/2016 - 09/2020* Dacia Sandero Stepway (SD) 11/2016 - 09/2020* Fiat Fiat Talento (ZAF 296) 07/2016 - 10/2021 Nissan Nissan NV300 (4/J4) 11/2016 - 06/2019*/**/*** Nissan NV300 (4/J4) 06/2019 - 09/2021*/**/*** Nissan NV300 (4/J4) 05/2021 - 09-2021*/**/*** Nissan NV400 (M) 08/2014- 07/2020*/**/*** Nissan NV400 (M) 07/2020 - 12/2021*/**/*** Nissan Primastar (4/J4) 09/2021 - 2024**/**** Opel Opel Movano B (X62) 10/2013 - 09/2019 Opel Movano B (X62) 10/2019 - 08/2021 Opel Vivaro B (X82) 06/2014 - 01/2019 Renault Renault Captur (R) 06/2013 - 03/2017* Renault Captur (R) 03/2017 - 12/2019* Renault Express (RJK) 05/2021 - 2024**** Renault Kangoo (W) 03/2013 - 12/2020** Renault Kangoo Rapid (W) 05/2013 - 05/2021 Renault Kangoo Z.E. Rapid (W) 05/2013 - 06/2022 Renault Kangoo III (RJK) 05/2021 - 2024** Renault Master III (M) 09/2014 - 08/2018** Renault Master III Z.E. (M) 06/2018 - 06/2020** Renault Master III (M) 10/2019 - 2024** Renault Trafic III (L/JL) 09/2014 - 07/2019*/** Renault Trafic III (L/JL) 09/2019 - 03/2022*/** Renault Trafic III (L/JL) 05/2021-2024**/**** Renault Twingo (AH) 09/2014 - 04/2019*/** Smart Smart ForTwo (453) 11/2014 - 06/2019* Following signals are provided: Reimported vehicles or vehicles with different software may be incompatible in functions. SWC *vehicles with Visteon Anatel RO13-X07 OEM HU without CAN Bus **vehicles with Browse 1-DIN OEM HU with 2 x black rotary knob **vehicles with open dash ***vehicles with 1-DIN OEM HU ****vehicles with Browse Visteon 1-DIN OEM HU General installation instructions: Verification: 1: Check all operating functions and vehicle setting functions of the OEM HU. 2: Disconnect the OEM HU voltage-free. 3: Check all interface connections for correctness voltage-free. Connection and connection sequence: 1: Check settings and hardware configuration of the interface voltage-free. 2: Check configuration of the HU connection cable voltage-free. 3: Connect the HU connection cable according to the operating instructions of the retrofit HU. 4: Connect all other connections according to the operating instructions of the retrofit HU. 5: Connect the entire installation to the vehicle with the main connection last. 6: Software configuration of the interface according to the instructions in the item text and in the manual. 7: Configure the retrofit HU according to the operating instructions of the retrofit device steering wheel remote control/camera/handsfree kit/antenna phantom powering and others. 8: Function test of steering wheel remote control and vehicle Changes to the configuration of the interface and the HU connection cable: 1: Change configuration voltage-free 2: Reconnection see above 5 to 8 In case of malfunction of the interface or the vehicle: 1: Reinstall the OEM HU 2: Operate the OEM HU 3: Establish CAN bus shut down 4: Check the hardware configuration of the interface 5: Reconnection after CAN Bus shut down see above 5 and 6 More connections, connection changes, alternative connections, connections of loose cables or connection extensions of loose cables specified in the information text or the manual are for orientation purposes only and for the information of trained specialist installer. More connections, changes to the cable configuration of the wiring harness or use of alternative connections or connection extensions: 1: Connections and changes are to be carried out exclusively by trained specialist installer. 2: Connections and modifications must be checked before connection for any manufacturer approvals or manufacturer warranty conditions that may be affected by the modifications. 3: Connections and modifications must be checked for function and correctness by measuring and comparing them with the vehicle's cable assignment diagram before connection. 4: Connections and modifications are made on the user's own responsibility without guarantee of function. 5: Connections and modifications are made on the user's own responsibility without any guarantee of damage to the vehicle, the retrofit device or the interface. 6: Modifications to the pre-assembled wiring harness may invalidate the product's warranty.
