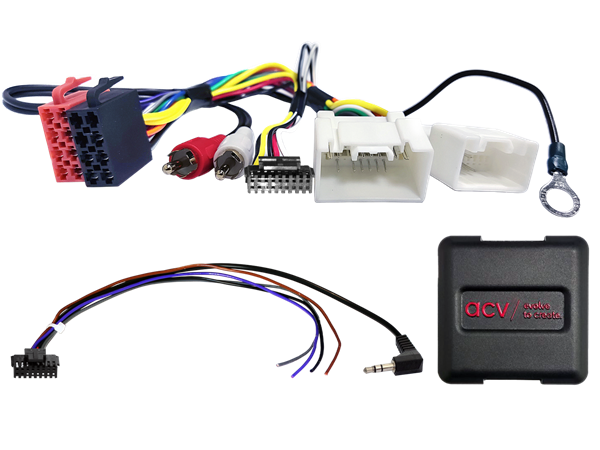

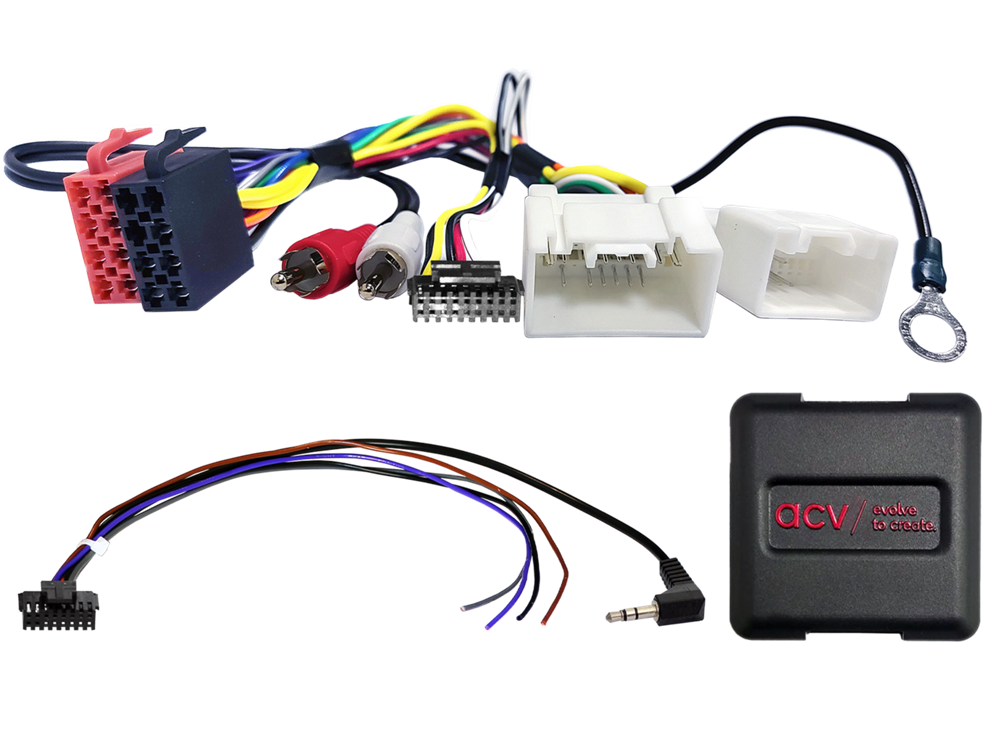

RAT INTERFACE TIL MITSUBISHI + ANDRE MED AUX BIBEHOLDELSE (ALT INCL)

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.

Passer til følgende modeller:
Note:

analog

connector: ISO / Mini ISO
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM AUX > RCA(m) red/white

black: GND clamp 31

vehicles with Mitubishi OEM HU

vehicles without OEM amplified system*

OEM AUX: before installation check for correct assignment by measuring

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Citroen
Citroen C4 Aircross (B) 06/2012 - 05/2017

Fiat
Fiat Fullback (KT0T) 08/2016 - 07/2020

Mitsubishi
Mitsubishi ASX (GAO) 07/2010 - 09/2012
Mitsubishi ASX (GAO) 10/2012 -10/2016
Mitsubishi ASX (GAO) 11/2016 - 08/2019
Mitsubishi ASX (GAO) 09/2019 - 10/2021**
Mitsubishi Challenger (PC) 2010 - 2017
Mitsubishi L200 (KA0T) 10/2015 - 08/2019
Mitsubishi L200 (KJ0T) 09/2019 - 10/2022
Mitsubishi Lancer (CYO) 09/2010 - 04/2015
Mitsubishi Lancer (CYO) 05/2015 - 08/2017
Mitsubishi Mirage (Space Star) 2013 - 2015
Mitsubishi Mirage (Space Star) 2015 - 2022
Mitsubishi Outlander (CWB) 02/2010 - 10/2012
Mitsubishi Outlander Sport (ASX) 2010 - 2022
Mitsubishi Pajero (V80) 10/2014 - 08/2018
Mitsubishi Shogun (V80) 2014 - 2018
Mitsubishi Space Star (A00) 04/2016 - 01/2020
Mitsubishi Space Star (A00) 02/2020 - 2024
Mitsubishi Triton (L200) 2015 - 2022

Peugeot
Peugeot 4008 (B) 06/2012 - 05/2015

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

SWC

*vehicles with Rockford Fosgate OEM amplified system > item: 42smt009
**vehicles with/without Rockford Fosgate OEM HU

General installation instructions:

Verification:
1: Check all operating functions and vehicle setting functions of the OEM HU.
2: Disconnect the OEM HU voltage-free.
3: Check all interface connections for correctness voltage-free.

Connection and connection sequence:
1: Check settings and hardware configuration of the interface voltage-free.
2: Check configuration of the HU connection cable voltage-free.
3: Connect the HU connection cable according to the operating instructions of the retrofit HU.
4: Connect all other connections according to the operating instructions of the retrofit HU.
5: Connect the entire installation to the vehicle with the main connection last.
6: Software configuration of the interface according to the instructions in the item text and in the manual.
7: Configure the retrofit HU according to the operating instructions of the retrofit device steering wheel remote control/camera/handsfree kit/antenna phantom powering and others.
8: Function test of steering wheel remote control and vehicle

Changes to the configuration of the interface and the HU connection cable:
1: Change configuration voltage-free
2: Reconnection see above 5 to 8

In case of malfunction of the interface or the vehicle:
1: Reinstall the OEM HU
2: Operate the OEM HU
3: Establish CAN bus shut down
4: Check the hardware configuration of the interface
5: Reconnection after CAN Bus shut down see above 5 and 6

More connections, connection changes, alternative connections, connections of loose cables or connection extensions of loose cables specified in the information text or the manual are for orientation purposes only and for the information of trained specialist installer.

More connections, changes to the cable configuration of the wiring harness or use of alternative connections or connection extensions:
1: Connections and changes are to be carried out exclusively by trained specialist installer.
2: Connections and modifications must be checked before connection for any manufacturer approvals or manufacturer warranty conditions that may be affected by the modifications.
3: Connections and modifications must be checked for function and correctness by measuring and comparing them with the vehicle's cable assignment diagram before connection.
4: Connections and modifications are made on the user's own responsibility without guarantee of function.
5: Connections and modifications are made on the user's own responsibility without any guarantee of damage to the vehicle, the retrofit device or the interface.
6: Modifications to the pre-assembled wiring harness may invalidate the product's warranty.
