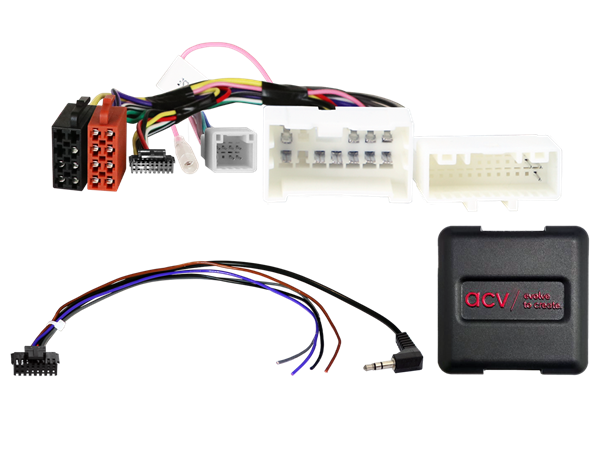

RAT INTERFACE TIL RENAULT/DACIA/OPEL 2012> 12/24/6 PIN (ALL INCL) Forside » VOGNLISTE » DACIA » LODGY (2012 >) Varenr.: 42xvx006 DKKSEK PRIS ER PR. Stk Pris ved køb af 1 Stk,449,95 DKK 2 Stk På lager hos os Download manual Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening. Det gør det muligt at styre primær funktioner på radioen. Passer til følgende modeller. Note: analog connector: 12 Pin / 24 Pin / 6 Pin Dacia connector: OEM SWC > 3,5mm Jack / loose wire customize the coding of the grey OEM connector with workshop tools if necessary vehicles Dacia 2017> with Visteon RO13-X07 OEM HU witout CAN Bus: SWC Dacia/Fiat/Opel/Nissan/Renault 20Pin/32Pin Nissan > item: 42xvx007 vehicles with Opel Navi 50 Intellilink OEM Sat Nav vehicles with Opel Anatel 1-DIN OEM HU black front with AUX/USB 2 x chrome rotary knob vehicles Opel without Navi 80 Intellilink OEM Sat Nav vehicles Rennault without R-Link OEM Sat Nav silver box vehicles 2018>: red +12V ignition supply clamp 15 fusebox fused > if necessary vehicles 2018>: interface red +12V ignition supply clamp 15 fusebox fused > if necessary vehicles with OEM Sat Nav / OEM rear view camera: 24 Pin connector check for correct assignment by measuring with factory HU before installation Pin 9: +6V power supply OEM camera Pin 21: GND OEM camera Pin 10: Video + Pin 22: Video - Voltage dropper +6V power supply OEM camera: Voltage dropper12 Volt > 6 Volt 1.5 A max. > item: 30.3520-04 dip switch settings for the retrofit device manufacturer (look into the manual) Vehicle application: Dacia Dacia Dokker (SD) 12/2012 - 03/2017 Dacia Dokker (SD) 03/2017 - 11/2021 Dacia Dokker Stepway (SD) 11/2014 - 03/2017 Dacia Dokker Stepway (SD) 03/2017 - 11/2020 Dacia Duster (SD) 11/2013 - 12/2017 Dacia Duster (SR) 01/2018 - 07/2021 Dacia Duster (SR) 09/2021 - 2024* Dacia Lodgy (SD) 06/2012 - 06/2021 Dacia Lodgy Stepway (SD) 11/2014 - 06/2021 Dacia Logan MCV (SD) 07/2013 - 09/2020 Dacia Sandero (SD) 01/2013 - 09/2020 Dacia Sandero Stepway (SD) 01/2013 - 09/2020 Fiat Fiat Talento (ZAF 296) 07/2016 - 10/2021** Mercedes Mercedes Citan (W415) 10/2012 - 12/2020 Nissan Nissan NV300 (4/J4) 11/2016 - 06/2019** Nissan NV300 (4/J4) 06/2019 - 09/2021** Nissan NV300 (4/J4) 05/2021 - 09-2021** Nissan NV400 (M) 07/2014- 07/2020 Nissan NV400 (M) 07/2020 - 12/2021 Nissan Primastar (4/F4/J4) 01/2011 - 05/2015** Opel Opel Movano B (X62) 10/2013 - 09/2019*** Opel Movano B (X62) 10/2019 - 08/2021*** Opel Vivaro B (X82) 06/2014 - 01/2019*** Renault Renault Captur (R) 06/2013 - 03/2017** Renault Captur (R) 03/2017 - 12/2019 Renault Clio IV (X98) 11/2012 - 06/2016*** Renault Clio IV (X98) 06/2016 - 12/2020*** Renault Kangoo (W) 03/2013 - 12/2020 Renault Master III (M) 09/2014 - 08/2018** Renault Master III Z.E. (M) 06/2018 - 06/2020** Renault Master III (M) 10/2019 - 2024** Renault Trafic III (J/JL) 09/2014 - 07/2019** Renault Trafic III (J/JL) 09/2019 - 03/2022** Renault Twingo (N) 01/2012 - 07/2014**** Following signals are provided: Reimported vehicles or vehicles with different software may be incompatible in functions. SWC Speed pulse *vehicles with open dash **vehicles with Media Nav / Media Nav Evo OEM Sat Nav ***vehicles with Navi 50 Intellilink OEM Navigation with front AUX/USB / Media Nav OEM Sat Nav ***vehicles with 1-DIN OEM HU black with front AUX/USB 2 x chrome rotary knob ****vehicles with 1-DIN OEM HU black with front USB General installation instructions: Verification: 1: Check all operating functions and vehicle setting functions of the OEM HU. 2: Disconnect the OEM HU voltage-free. 3: Check all interface connections for correctness voltage-free. Connection and connection sequence: 1: Check settings and hardware configuration of the interface voltage-free. 2: Check configuration of the HU connection cable voltage-free. 3: Connect the HU connection cable according to the operating instructions of the retrofit HU. 4: Connect all other connections according to the operating instructions of the retrofit HU. 5: Connect the entire installation to the vehicle with the main connection last. 6: Software configuration of the interface according to the instructions in the item text and in the manual. 7: Configure the retrofit HU according to the operating instructions of the retrofit device steering wheel remote control/camera/handsfree kit/antenna phantom powering and others. 8: Function test of steering wheel remote control and vehicle Changes to the configuration of the interface and the HU connection cable: 1: Change configuration voltage-free 2: Reconnection see above 5 to 8 In case of malfunction of the interface or the vehicle: 1: Reinstall the OEM HU 2: Operate the OEM HU 3: Establish CAN bus shut down 4: Check the hardware configuration of the interface 5: Reconnection after CAN Bus shut down see above 5 and 6 More connections, connection changes, alternative connections, connections of loose cables or connection extensions of loose cables specified in the information text or the manual are for orientation purposes only and for the information of trained specialist installer. More connections, changes to the cable configuration of the wiring harness or use of alternative connections or connection extensions: 1: Connections and changes are to be carried out exclusively by trained specialist installer. 2: Connections and modifications must be checked before connection for any manufacturer approvals or manufacturer warranty conditions that may be affected by the modifications. 3: Connections and modifications must be checked for function and correctness by measuring and comparing them with the vehicle's cable assignment diagram before connection. 4: Connections and modifications are made on the user's own responsibility without guarantee of function. 5: Connections and modifications are made on the user's own responsibility without any guarantee of damage to the vehicle, the retrofit device or the interface. 6: Modifications to the pre-assembled wiring harness may invalidate the product's warranty. Måske er du også interesseret i følgende produkter VOLTAGE DROPPER 12 V TIL 6 V TIL ISO/KAMERA BRUG DKK 139,00
