Varenr.: ZXMPSZ1
På lager hos vores leverandør

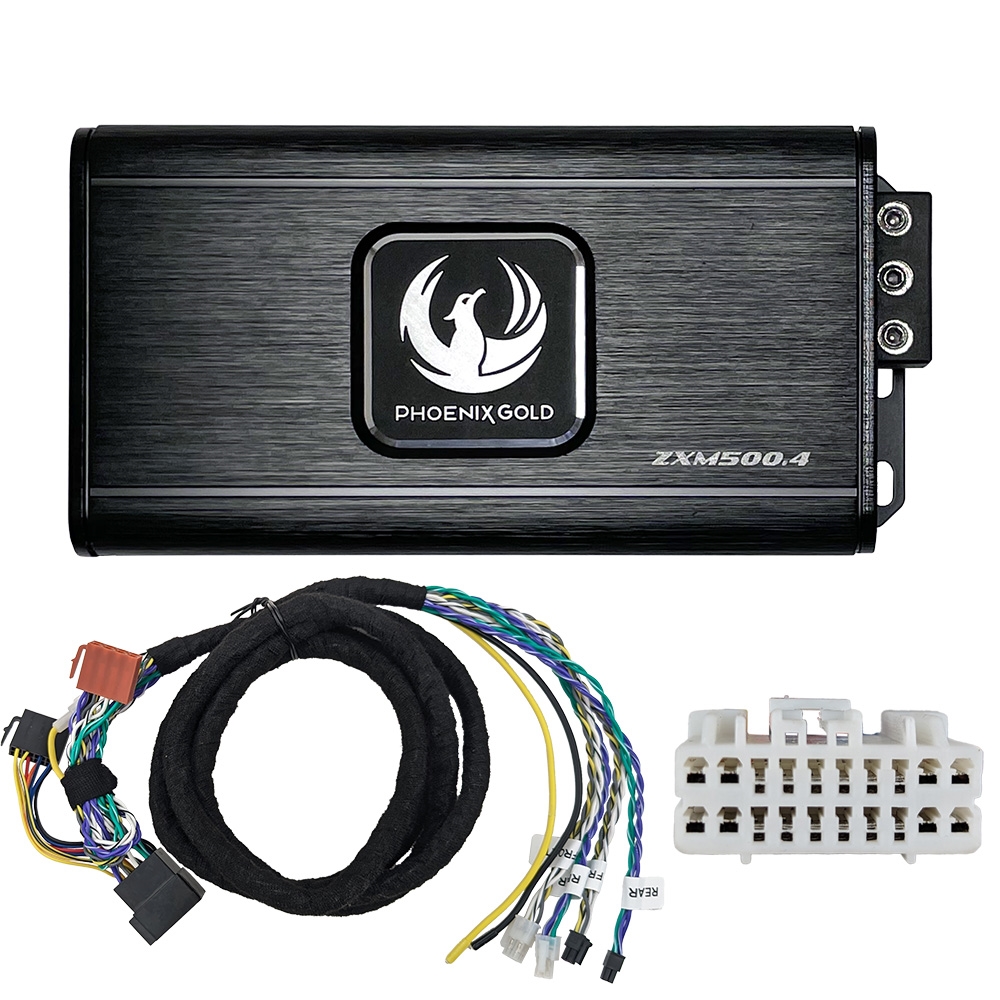

ZXMPSZ1 is a Plug and Play power-up kit made for Suzuki (for a full model list please view Vehicle Applications). The ZXMPSZ1 power up kit consists of a variety of technology designed to improve the overall audio output of a vehicle. The ZXMPSZ1 includes a ZXM500.4 Amplifier and ZXMISOT2 ISO-T harness.
Utilising the high-level signals from your vehicle and passing it through the 4-channel 500W amplifier transforming and amplifying the audio signal before sending it to your speakers, gives them a real boost in both output and performance delivering an all new and improved audio experience with ZXMPSZ1.
The amplifier boasts a sleek, compact design while delivering substantial power in a remarkably small package. This makes the amplifier easy to install almost anywhere and thanks to the use of class-D technology the amplifier does not run the risk of getting hot or overheating.
The ZXMISOT2 2.2M ISO-T Harness is the perfect accessory when installing the ZXM500.4 amplifier. This 220cm long plug-and-play harness is installed between the amplifier and vehicle, taking high-level input signal from the car and passing it through the amplifier and sending it to the speakers, giving you extra power.
The amplifier boasts a sleek, compact design while delivering substantial power in a remarkably small package. This makes the amplifier easy to install almost anywhere and thanks to the use of class-D technology the amplifier does not run the risk of getting hot or overheating.
ZXMPSZ1 Power-up Kit Key Features
Quick and easy install
No modifications needed on the vehicle
Invisible integration
Sound quality superior to the original one
No additional accessories required
All in one box
The ZXM500.4 is an impressive Class-D 4-channel Mini Amplifier. The ZXM amplifiers are made to be as small as possible without compromising sound quality, power and functions. The ZXM500.4 is a 4-channel amplifier with a total power of 500W RMS. This equals 4x80W RMS in 4Ohm but the amplifier is stable into 2Ohm and then delivers 4x125W RMS. The 4 channels can also be bridged into 2x250W RMS in 4Ohm. The amplifier comes with adjustable HP/ LP filters and also a switch to use 2ch input or 4ch input low or high level.
A high level of engineering has gone into making these amps with low EMI emissions to not interfere with the advanced electronics or FM signal.
ZXM500.4 Key Features
Massive Power & Performance
Full Class-D technology offers efficiency & performance
Short circuit/thermal and high/low voltage protection
Excellent signal-to-noise ratio and FM noise rejection
Built-in protection LED light status indicator
Surface mount component technology
Ultra small size for easy installation
Autostart on high-level input
Full adjustable HP & LP filter
ZXM500.4 Specifications
Class-D 4-Channel Mini Amplifier
Power (MAX) 1000W
Power Ratings (RMS)
125W x 4 @ 2Ohm
80W x 4 @ 4Ohm
250W x 2 @ 4Ohm bridged
Frequency Response: 20Hz 20kHz
Signal to Noise Ratio: > 90dB
Total Harmonic Distortion: < 0.3%
Low Pass Filter: 40Hz 400Hz (12dB/Oct)
High Pass Filter: 40Hz 400Hz (12dB/Oct)
High-Level Input Auto Turn-On
Dimensions (LxWxH) 165 x 83.1 x 34.8mm
Honda Legend 1996 >
Honda HR-V 1999 > 2006
Honda Logo 1996 > 2001
Honda Prelude 1997 < 2001
Honda S2000 1999 > 2009
Honda Shuttle 1999 >
Honda Jazz 2004 > 2008
Honda Stream 2001 > 2008
Honda CR-V 1999 > 2007
Honda Amaze 2012 >
Honda Accord 2002 > 2008
Honda Civic 1999 > 2005
Honda City 2002 > 2008
Honda Element 2003 > 2011
Honda Fit 2004 > 2007
Honda FR-V 2004 > 2007
Honda Insight 1999 > 2006
Honda Integra 2001 > 2006
Honda MDX 2000 > 2002
Honda MR-V 2003 > 2008
Honda NSX 2006 >
Honda Odyssey 2007 >
Honda Pilot 2008 >
Honda Ridgeline 2006 >
Suzuki Aerio 2001 >
Suzuki Alto 2004 >
Suzuki Grand-Vitara 2003 >
Suzuki Ignis 2001 > 2008
Suzuki Jimny 2003 >
Suzuki Kizashi 2010 >
Suzuki Liana 2001 >
Suzuki Splash 2008 >
Suzuki Swift 2005 >
Suzuki SX4 2006 > 2014
Suzuki XL7 2002 > 2006
Suzuki Wagon-R 2002 > 2004
Suzuki Dzire 2008 > 2010
Suzuki Ertiga 2012>
Suzuki Ritz 2009 >
Fiat Sedici 2006 > 2014
Nissan Pixo 2009->
Vauxhall Agila 2008 > 2015
Opel Agila 2008 > 2015
Acura Integra 1999-> 2001
Acura MDX 1999-> 2001
Acura NSX 1998-> 2004
Acura RDX 1998-> 2004
Acura RSX 2002->
Acura TL (UA5) 1999-> 2003
