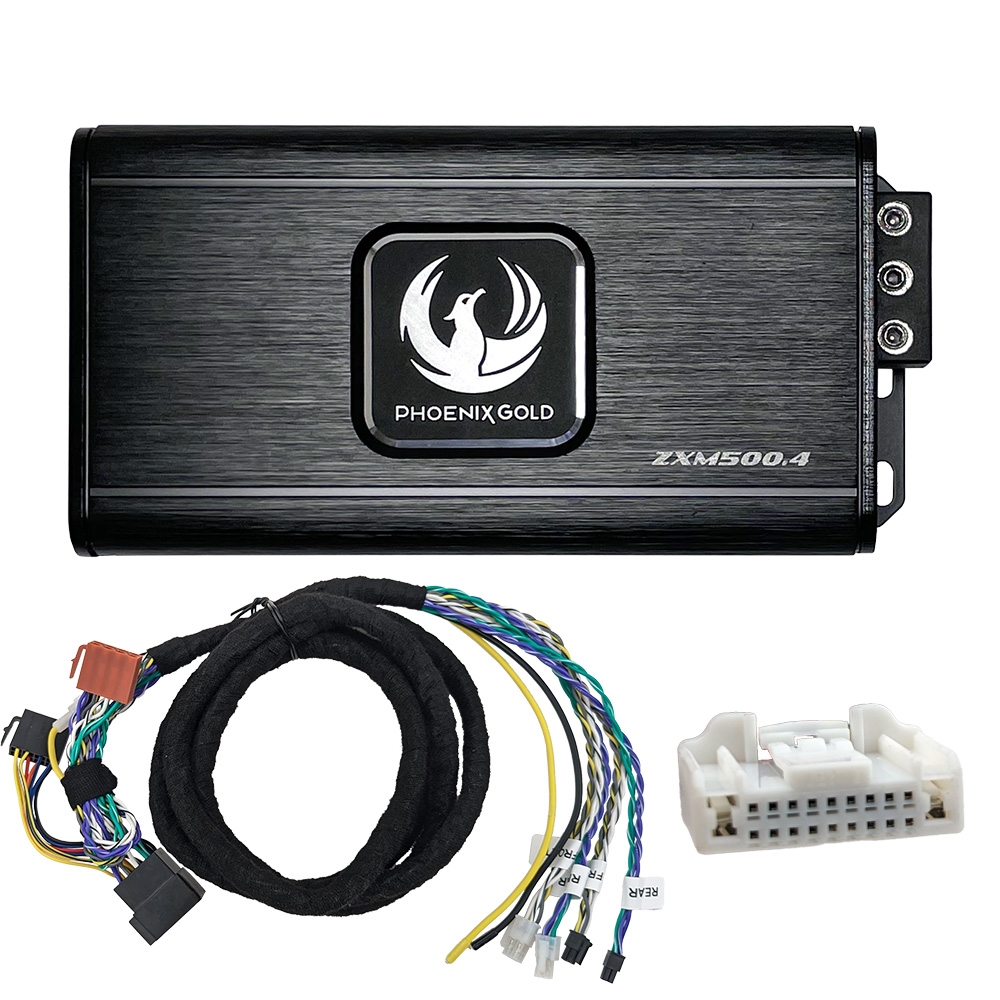

ZXMPN1 is a Plug and Play power-up kit made for Nissan (for a full model list please view Vehicle Applications). The ZXMPN1 power up kit consists of a variety of technology designed to improve the overall audio output of a vehicle. The ZXMPN1 includes a ZXM500.4 Amplifier and ZXMISOT2 ISO-T harness.
Utilising the high-level signals from your vehicle and passing it through the 4-channel 500W amplifier transforming and amplifying the audio signal before sending it to your speakers, gives them a real boost in both output and performance delivering an all new and improved audio experience with ZXMPN1.
The amplifier boasts a sleek, compact design while delivering substantial power in a remarkably small package. This makes the amplifier easy to install almost anywhere and thanks to the use of class-D technology the amplifier does not run the risk of getting hot or overheating.
The ZXMISOT2 2.2M ISO-T Harness is the perfect accessory when installing the ZXM500.4 amplifier. This 220cm long plug-and-play harness is installed between the amplifier and vehicle, taking high-level input signal from the car and passing it through the amplifier and sending it to the speakers, giving you extra power.
The amplifier boasts a sleek, compact design while delivering substantial power in a remarkably small package. This makes the amplifier easy to install almost anywhere and thanks to the use of class-D technology the amplifier does not run the risk of getting hot or overheating.
ZXMPN1 Power-up Kit Key Features
Quick and easy install
No modifications needed on the vehicle
Invisible integration
Sound quality superior to the original one
No additional accessories required
All in one box
The ZXM500.4 is an impressive Class-D 4-channel Mini Amplifier. The ZXM amplifiers are made to be as small as possible without compromising sound quality, power and functions. The ZXM500.4 is a 4-channel amplifier with a total power of 500W RMS. This equals 4x80W RMS in 4Ohm but the amplifier is stable into 2Ohm and then delivers 4x125W RMS. The 4 channels can also be bridged into 2x250W RMS in 4Ohm. The amplifier comes with adjustable HP/ LP filters and also a switch to use 2ch input or 4ch input low or high level.
A high level of engineering has gone into making these amps with low EMI emissions to not interfere with the advanced electronics or FM signal.
ZXM500.4 Key Features
Massive Power & Performance
Full Class-D technology offers efficiency & performance
Short circuit/thermal and high/low voltage protection
Excellent signal-to-noise ratio and FM noise rejection
Built-in protection LED light status indicator
Surface mount component technology
Ultra small size for easy installation
Autostart on high-level input
Full adjustable HP & LP filter
ZXM500.4 Specifications
Class-D 4-Channel Mini Amplifier
Power (MAX) 1000W
Power Ratings (RMS)
125W x 4 @ 2Ohm
80W x 4 @ 4Ohm
250W x 2 @ 4Ohm bridged
Frequency Response: 20Hz 20kHz
Signal to Noise Ratio: > 90dB
Total Harmonic Distortion: < 0.3%
Low Pass Filter: 40Hz 400Hz (12dB/Oct)
High Pass Filter: 40Hz 400Hz (12dB/Oct)
High-Level Input Auto Turn-On
Dimensions (LxWxH) 165 x 83.1 x 34.8mm
Dacia
Dacia Dokker (SD) 03/2017 - 11/2020*
Dacia Dokker Stepway (SD) 03/2017 - 11/2020*
Dacia Duster (SR) 01/2018 - 07/2021
Dacia Duster (SR) 09/2021 - 2023
Dacia Lodgy (SD) 03/2017 - 01/2022*
Dacia Lodgy Stepway (SD) 03/2017 - 02/2022*
Dacia Logan MCV (SD) 11/2016 - 09/2020*
Dacia Logan MCV Stepway (SR) 05/2017 - 09/2020*
Dacia Sandero (SD) 11/2016 - 09/2020*
Dacis Sandero Stepway (SD) 11/2016 - 09/2020*
Fiat
Fiat Talento (ZAF 296) 07/2016 - 10/2021
• Infinity G35 fra 07
Mazda
Mazda CX-5 (KF) 01/2021 - 2023
Maxda 6 2016 >
Nissan
Nissan 370Z (Z34) 08/2008 - 03/2013
Nissan Altima (B32/U32) 06/2007 - 06/2012
Nissan Altima (L33) 06/2012 - 08/2018
Nissan Altima (L34) 09/2018 - 2022
Nissan Cube (Z12) 01/2010 - 03/2011
Nissan Frontier (D231) 01/2016 - 07/2019
Nissan Juke (F15) 10/2010 - 06/2014
Nissan Juke (F15) 06/2014 - 11/2019
Nissan Kicks 05/2017 - 08/2020
Nissan Leaf (ZEO) 04/2012 - 11/2017
Nissan Maxima (A35) 2008 -2014
Nissan Maxima (A36) 2015 - 2022
Nissan Micra (K12) 10/2007 - 09/2010
Nissan Micra C+C (K12) 11/2005 - 03/2009
Nissan Micra (K13) 03/2011 - 02/2017
Nissan Micra (K14) 03/2017 - 08/2018
Nissan Micra (K14) 08/2018 - 10/2020
Nissan Micra (K14) 10/2020 - 2023
Nissan Murano (Z51) 10/2008 - 07/2011
Nissan Murano (Z51) 07/2011 - 08/2019
Nissan Navara (D40) 07/2005 - 04/2010
Nissan Navara (D40) 04/2010 - 08/2015
Nissan Navara (D231) 01/2016 - 07/2019
Nissan Note (E11) 03/2006 - 01/2009
Nissan Note (E11) 01/2009 - 08/2013
Nissan Note (E12) 10/2013 - 12/2016
Nissan NV200 (M20M) 05/2011 - 08/2019
Nissan NV200 electro (M20M) 04/2018 - 08/2022
Nissan NV300 (4/J4) 11/2016 - 05/2021
Nissan NV400 (M) 07/2014- 07/2020**
Nissan NV400 (M) 07/2020 - 12/2021**
Nissan Pathfinder (R51) 04/2010 - 09/2013
Nissan Pathfinder (R51) 09/2013 - 08/2015
Nissan Patrol (Y62) 2011 - 2015
Nissan Pulsar (C13) 10/2014 - 06/2018
Nissan Qashqai (J10) 02/2007 - 10/2014
Nissan Qashqai (J11) 03/2014 - 07/2017
Nissan Qashqai (J11) 07/2017 - 08/2018
Nissan Qashqai (J11) 10/2018 - 07/2021
Nissan Rogue II 2014 - 2017
Nissan Sentra II (B17) 2015 - 2018
Nissan Teana (L33) 2013 - 2020
Nissan Terra 04/2018 - 2023
Nissan Tiida (C11) 01/2008 - 03/2011
Nissan Titan (H61) 2015 - 2019
Nissan Townstar (NFK) 06/2022 - 2023**
Nissan X-Trail (T31) 07/2007 - 10/2010
Nissan X-Trail (T31) 10/2010 - 06/2014
Nissan X-Trail (T32) 07/2014 - 07/2017
Renault
Renault Captur (R) 06/2013 - 12/2019
Renault Kangoo (W) 03/2013 - 12/2020
Renault Kangoo Rapid (W) 05/2013 - 05/2021
Renault Kangoo Z.E. Rapid (W) 05/2013 - 06/2022
Renault Kangoo III (RJK) 05/2021 - 2023**
Renault Master III (M) 09/2014 - 08/2018**
Renault Master III Z.E. (M) 06/2018 - 06/2020**
Renault Master III (M) 10/2019 - 2023**
Renault Trafic III (J/JL) 09/2014 - 07/2019
Renault Trafic III (J/JL) 09/2019 - 03/2022
Renault Trafic III (L/JL) 05/2021 - 2023**
Renault Twingo (AH) 09/2014 - 04/2019*
Toyota
Toyota GT 86 (ZN) 09/2012 - 12/2016
Opel - Movano B (2010 - 2017)
Opel Vivaro (Typ B ) 2014 ->
• Subaru Impreza fra. 2007
• Subaru Forester fra. 2008
• Subaru Legacy fra. 2009
• Subaru Outback fra. 2009
• Subaru XV fra. 2012
