MATCH PP-MB 1.9BUR MERCEDES BURMEISTER 32-PIN TIL MOLEX

MATCH PP-MB 1.9BUR

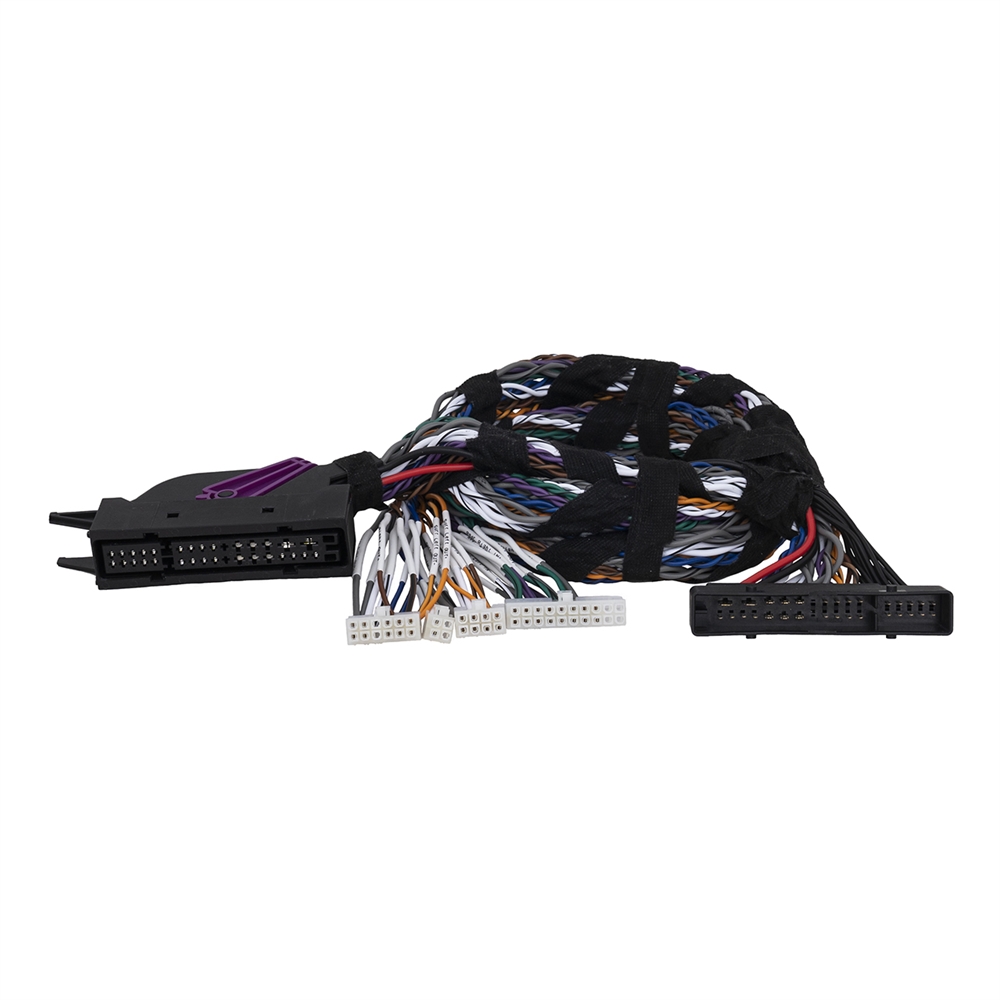

The 9-channel UPGRADE cable harness PP-MB 1.9BUR enables an easy connection of a MATCH UP 10DSP amplifier with integrated Extension Card MEC ANALOG IN to selected Mercedes vehicles with factory installed Burmester sound systems – model year > 2014 and 9-channel Burmester sound system (13 speakers).

Features
Plug & Play connectors for an easy connection of a MATCH UP 10DSP amplifier with integrated MEC ANALOG IN module
Mercedes system plugs for connecting the vehicle cable harness
Cable length 1.00 meter
Technical data
Cable length

1.00 Meter

Connections

1 x 20-pole MOLEX plug for the connection of the System Connector input of the UP 10DSP

1 x 8-pole MOLEX plug for the connection of the highlevel inputs E - H of the UP 10DSP

1 x 12-pole MOLEX plug for the connection of speaker outputs E - J of the UP 10DSP

1 x 4-pole MOLEX plug for the connection of the MEC ANALOG IN module

1 x 32-pole Mercedes system jack

1 x 32-pole Mercedes system plug

Compatibility
For connection of the MATCH UP 10DSP with ANALOG IN Extension Card
Suitable for Mercedes vehicles from model year 2014 with 9-channel Burmester sound system

Scope of delivery
1 x UPGRADE cable harness MATCH PP-MB 1.9BUR (1.00 m)
