KONTAKT ON/OFF

Switch ON/OFF

Type: ON-OFF SPST 1P
Rocker: black imprint I/O

connector: 4,8mm

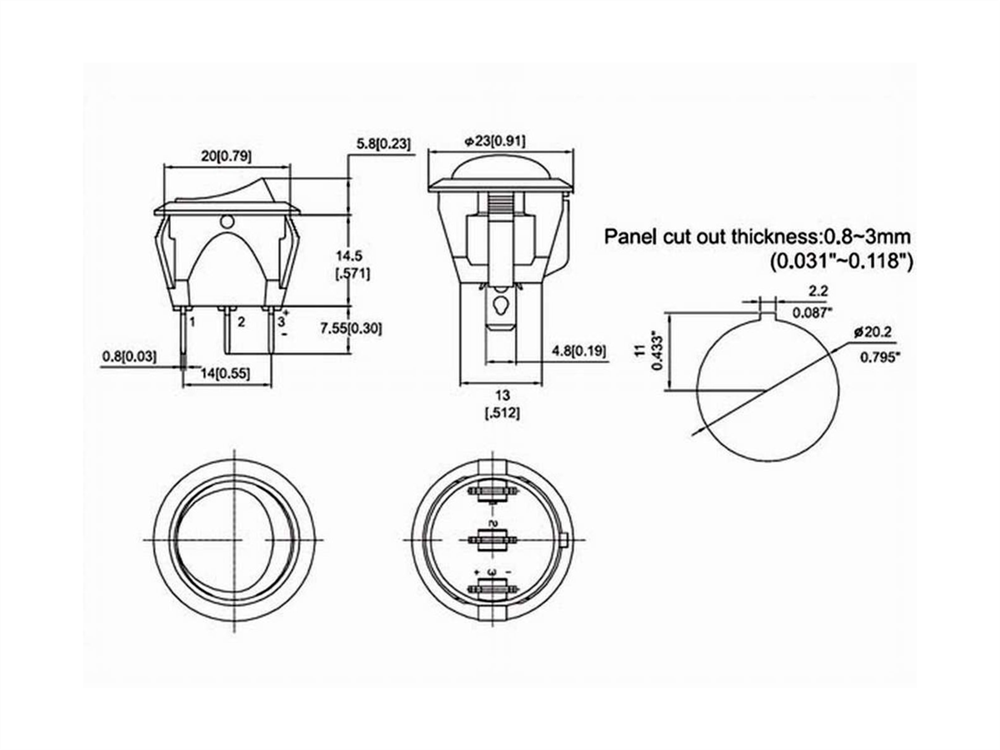

Drilling: 20mm

Technical data:

Switching capacity: 5A/250Vac / 10A/125Vac
Electrical life: 10000 cycles at max.load
Mechanical life: 50000 cycles
Contact resistance: 20 Mohm
Insulation resistance: min. 1000Mohm
Dielectric strength: >,1500V: 1 minute

Material:

Housing: nylon PA66
rocker: nylon PA66 + Polycarbonat
moving contacts: copper, silver plated
static contacts: copper, silver plated
Terminals: copper, silver plated
Contact: with return spring
