KONTAKT ON/OFF/ON

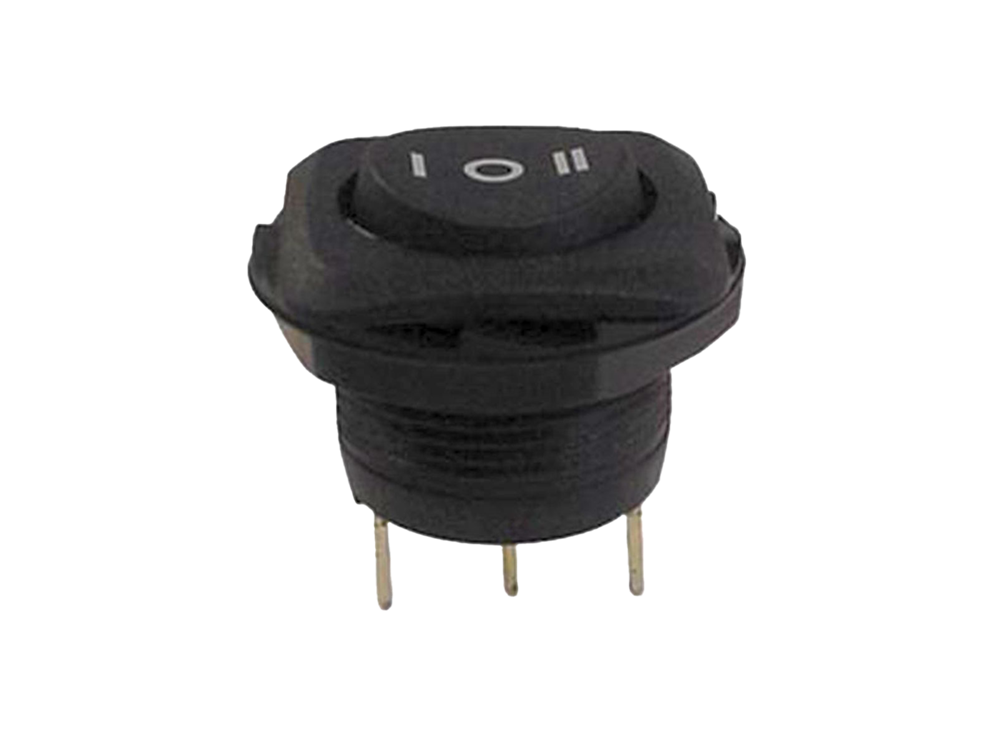

Switch ON/OFF/ON changeover switch

Type: ON-OFF-ON SPDT
Rocker: black imprint I/O/II

connectior:

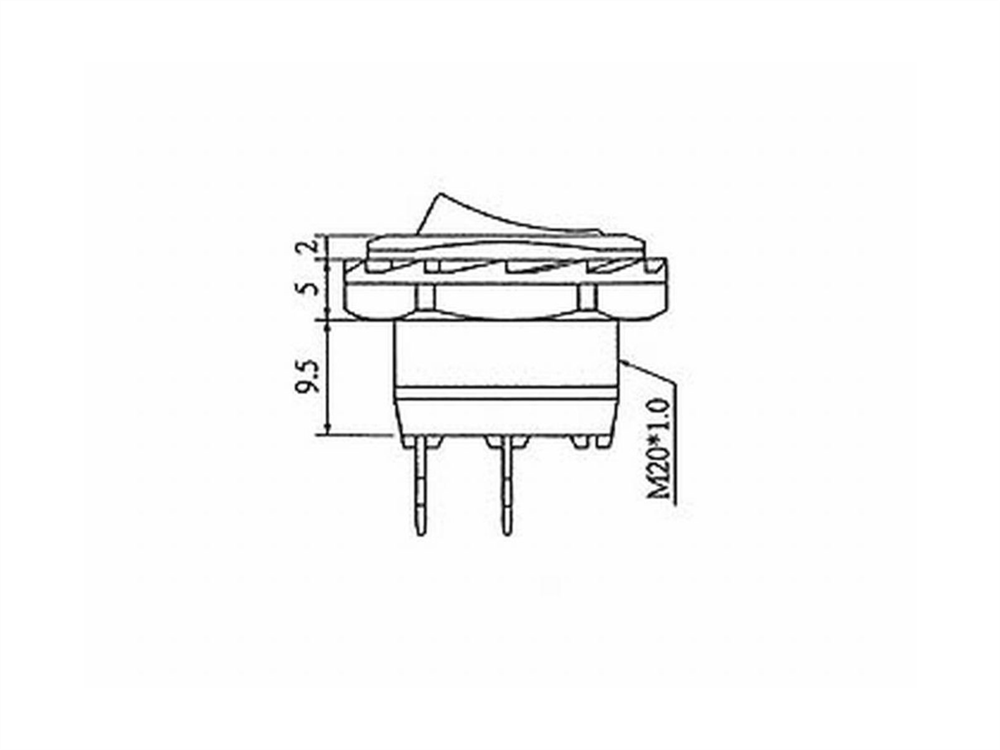

Drilling: 20mm

Technical data:

Switching capacity: 5A/250Vac / 10A/125Vac
Electrical life: 10000 cycles at max.load
Mechanical life: 50000 cycles
Contact resistance: <20ohm
Insulation resistance: 1000Mohm
Dielectric strength: >,1500V: 1 minute / >,3000V: between poles
Operating temperature: -30°C to +85°C

Material:

Housing: nylon 66 (UL94V-2)
rocker: nylon 66 (UL94V-2)
moving contacts: copper, silver plated
static contacts: copper, silver plated
Terminals: copper, silver plated
Contact: with return spring
