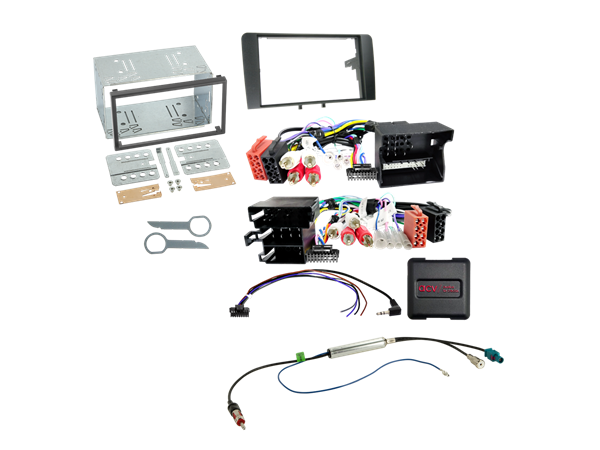

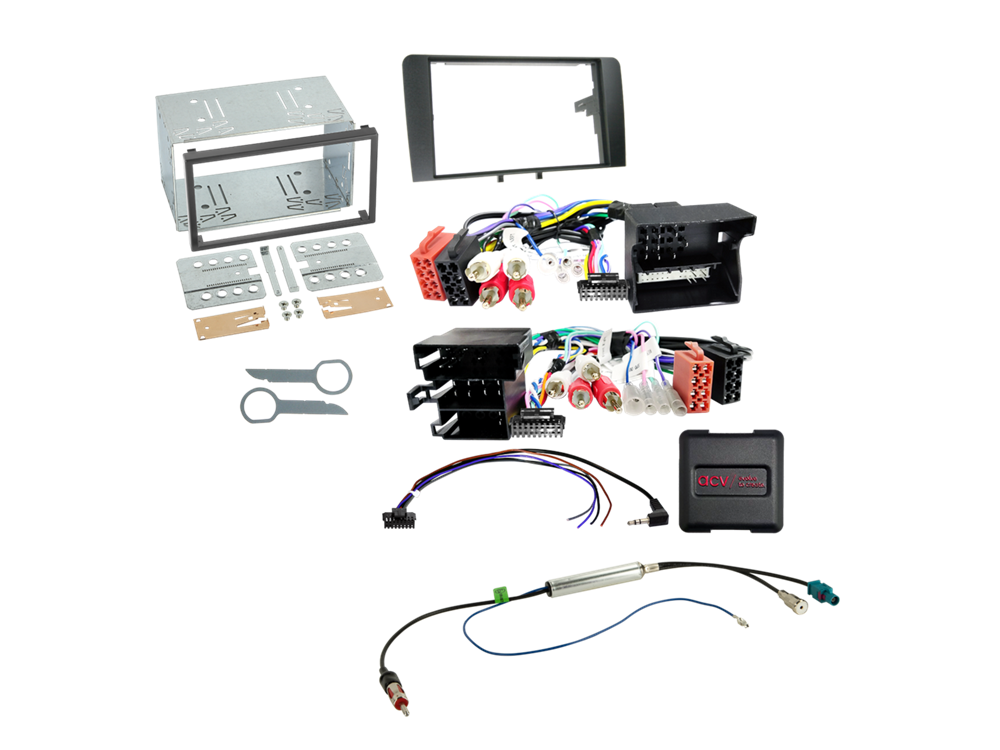

KOMPLET MONT. KIT AUDI A3 2003 > 2012 (MED SAT NAV ELLER SYMPHONIE 2)

facia plate with 2-DIN cut out
Vehicle application:

Audi A3 (8P) 07/2003 - 05/2005*
Audi A3 (8P) 10/2004 - 04/2013

*vehicles with Symphonie II OEM HU
*vehicles with RNS-E OEM Sat Nav

Colour: black
CAN Bus

connector: ISO / Mini ISO
connector: 40 Pin Quadlock VAG
connector: 2 channel / 4 channel OEM amplified system > RCA(m) front/rear

vehicles with Blaupunkt / Matsushita / Grundig Chorus II / Concert II / Symphony II 1-DIN OEM HU with 2 rotary knobs
vehicles with Blaupunkt / Matsushita / Grundig Chorus II / Concert II / Symphony II 2-DIN OEM HU
vehicles with RNS-E 16:9 OEM Nav Sat

vehicles without BNS 5.0 monochrome OEM Sat


Following signals are provided:

reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
green: GND park brake signal
