Varenr.: 621094-39-1
Bygges først ved bestilling. Op til 1 måneds levering.
Beløbet hæves som forudbetaling og kan ikke returneres.
14 dages retur ret frasiges derfor også. Download manual

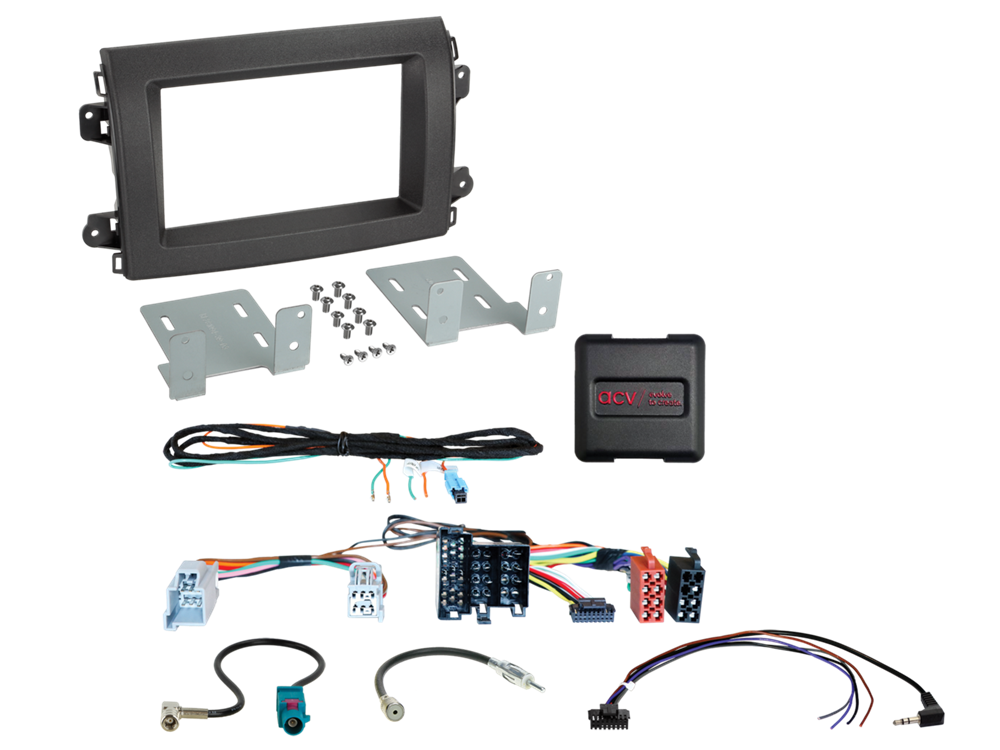

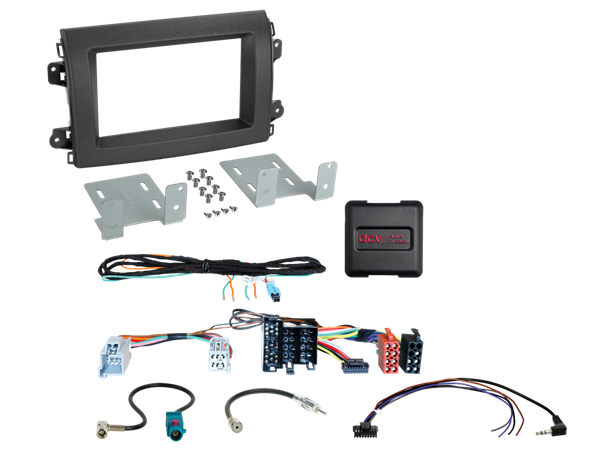

Vehicle application:
Fiat Ducato (ZAF 250) 11/2021 - 2023
Colour: black
Mounting cutout HU display: 173 mm x 98 mm
Note:
analog
connector: ISO / Mini ISO
connector: 6 Pin Fiat T-Harness > telephone
connector: Harness fuse box > speedpuls / reverse gear signal (look into the manual)
vehicles with open dash
vehicles with inductive charging device > telephone function supported
SWC buttons > backside steering wheel (look into the manual)
telephone function supported
connection harness fuse box:
green: speed pulse signal black 60 Pin connector > Pin 22
orange: reverse gear signal +12V green 60 Pin connector > Pin 17
