Varenr.: CTKFT09
Bygges først ved bestilling. Op til 1 måneds levering.
Beløbet hæves som forudbetaling og kan ikke returneres.
14 dages retur ret frasiges derfor også.

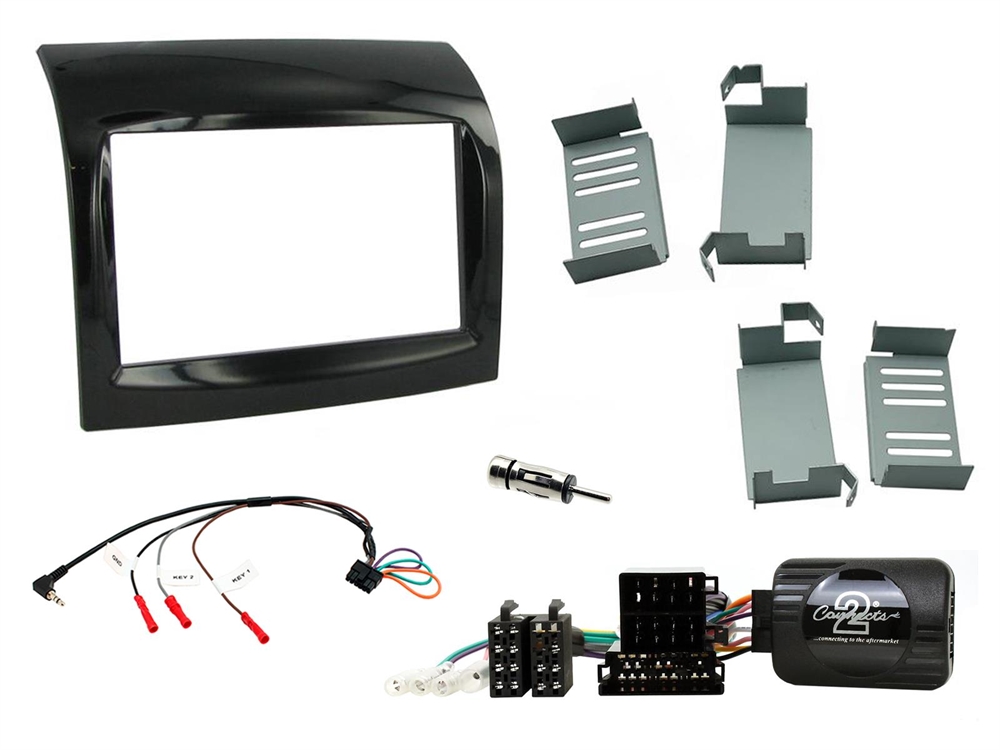

Komplet monteringskit som passer modeller med radio fra fabrik og almindeligt iso bag radio
vehicles with 2-DIN OEM HU
vehicles with Euro5 emission standard
vehicles without 1-DIN OEM HU*
vehicles without open dash*
Vehicle application:
Citroen
Citroen Jumper (250) 11/2011 - 05/2014**
Citoren Relay (250) 2011 - 2014
Fiat
Fiat Ducato (ZAF 250) 06/2011 - 05/2014**
Peugeot
Peugeot Boxer (Y) 07/2011 - 05/2014**
Colour: piano black
Mounting cutout HU display: 173mm x 98mm
*vehicles with 1-DIN OEM HU / open dash:
2-DIN facia plate Citroen/Fiat/Opel/Peugeot open dash > item: 381094-29-2
**vehicles with 8 SWC buttons / functions
**vehicles with Delphi 2-DIN OEM HU piano black with central control knob
Note:
CAN Bus
connector: ISO / Mini ISO
vehicles with Blaupunkt / Delphi / VDO OEM HU
vehicles with CAN Bus in ISO Power connector
vehicles without analoge SWC in Mini ISO connector C-2
vehicles without Visteon / Daiichi / UConnect OEM HU
vehicles with Blue&Me > silverbox module must remain installed
Following signals are provided:
Reimported vehicles or vehicles with different software may be incompatible in functions.
red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse signal
pink: speed pulse signal
green: GND park brake signal
