KOMPLET MONT. KIT BMW 1/2-SERIE 2012 > 2017 UDEN FORSTÆRKER (STANDART)

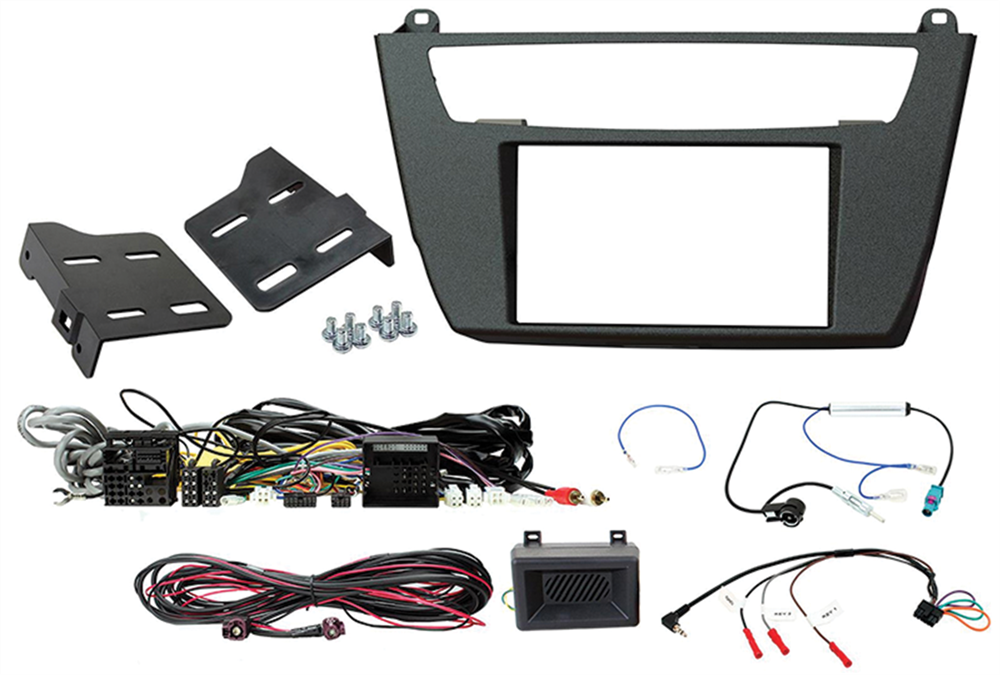

Facia plate 2-DIN and HU Adapter Kit BMW

Many car manufacturers install car specific head units to fit the optical
picture of the dashboard.

Installation kits include all components for replacing an OEM HU.
Depending on the vehicle's equipment, all adapters and interfaces required to operate the retrofit device and restore vehicle functions are included in the scope of delivery.

Please check the installation recommendations for the individual components.
In some cases, not all vehicle functions are supported.
For example, Trailer Assist, E Call, or other driver assistance systems.

Please check the OEM HU and vehicle settings for available settings bevore installation.
Please check all functions bevor final installation.
Also check our listed OEM head units and compare the pictured harness connectors with the connectors in your car and make sure that they fit optically and technically.

Note:

CAN Bus

connector: 40 Pin Quadlock BMW
connector: LVDS
connector: Fakra(m) > ISO

vehicles with NBT OEM HU (no NBT EVO)
vehicles without OEM amplified system

+12V power batterie (fused)
OEM HU installation in trunk (look manual)

OEM display funktion retained
PDC/warning chimes retained

Vehicle application:

BMW 1er (F20/F21) 2012 - 2016
BMW 2er (F22/F23/F87) 2014 - 2017

Colour: black

Following signals are provided:

Ignition
Illumination
Reverse
Speedpulse
Parkingbreak

SWC
vehicle settings
warning chimes
rear PDC
