KOMPLET MONT. KIT AUDI R8 2007 > 2015

Komplet kit til montering af 2-din. Passer til modeller både med og uden forstærker. Passer ikke til MMi og B&O systemer.

Facia plate 2-DIN and HU Adapter Kit Audi

Many car manufacturers install car specific head units to fit the optical picture of the dashboard.

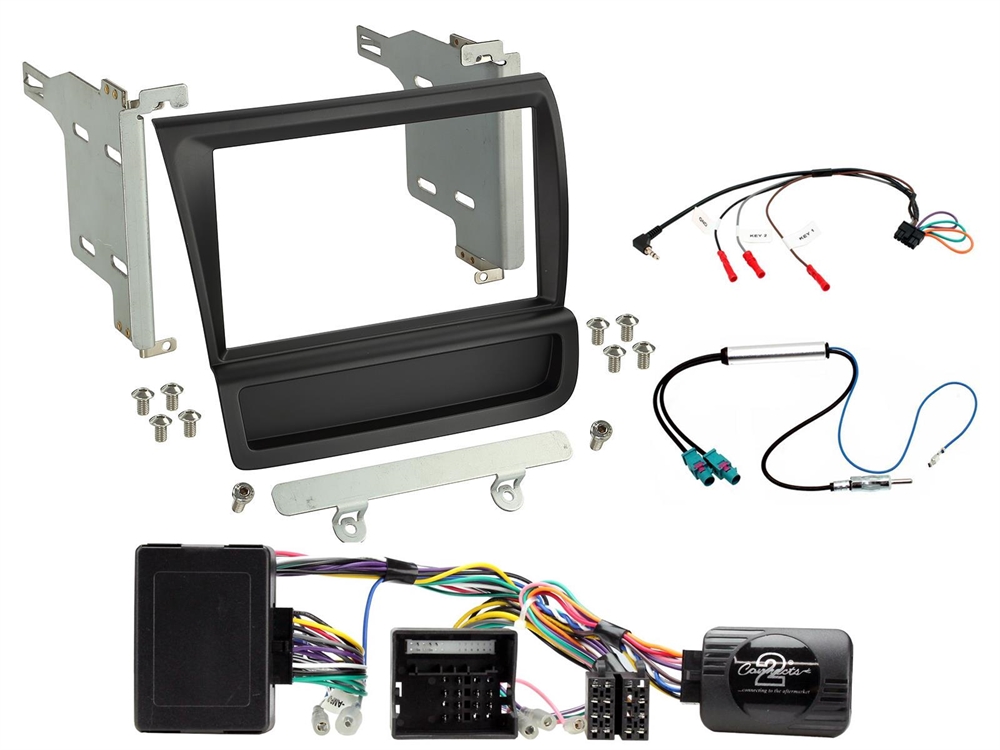

Installation kits include all components for replacing an OEM HU.

Depending on the vehicle's equipment, all adapters and interfaces required to operate the retrofit device and restore vehicle functions are included in the scope of delivery.

Please check the installation recommendations for the individual components.

In some cases, not all vehicle functions are supported.

For example, Trailer Assist, E Call, or other driver assistance systems.

Please check the OEM HU and vehicle settings for available settings bevore installation.

Please check all functions bevor final installation.

Also check our listed OEM head units and compare the pictured harness connectors with the connectors in your car and make sure that they fit optically and technically.

Note:

CAN Bus

connector: 40 Pin Quadlock Audi
connector: Fakra(m) > DIN/ISO

OEM (RGB) rear view camera not supported

Vehicle application:

Audi R8 (42) 04/2007 - 12/2012
Audi R8 (42) 12/2010 - 05/2015

The following signals are provided:

Ignition
Illumination
Reverse
Speedpulse

SWC
OEM amplified system

Colour: black

Mounting cutout HU display: 172mm x 98,5mm
