Varenr.: ZE-RCE4605
På lager hos vores leverandør
Download manual

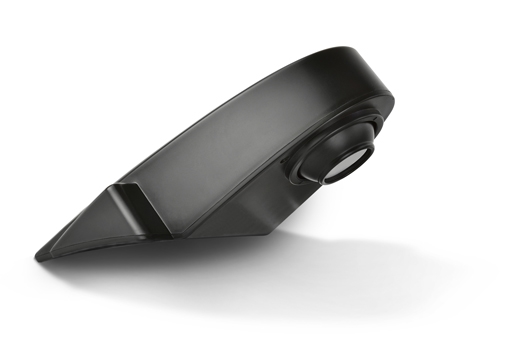

The compact, high resolution rear view camera is equipped with a high quality CCD camera sensor. With a horizontal viewing angle of 120°, this camera offers a very good view when maneuvering. Night vision IR LEDs ensure excellent vision, even in the dark.
Image device 0.25“/6.4 mm Sharp CCD sensor
Lens focal length F 2.5
TV system NTSC / 60 fps
View angle 120° horizontal
Native sensor resolution 510 x 492 pixels
Resolution of video-out > 420 TV lines
Signal to noise ratio > 48 dB
Light sensitivity 0 Lux (IR LED’s)
Video output 1.0 Vp-p, 75 ohms
White balance Auto
Gain control Auto
Sync system Auto
Power supply DC 12V
Current consumption 60mA
IP protection rating IP67
Operating temperature -20°C~+70°C, RH 95% max.
Dimensions (HxWxD) 23 x 19 x 30 mm
Weight 200 g
