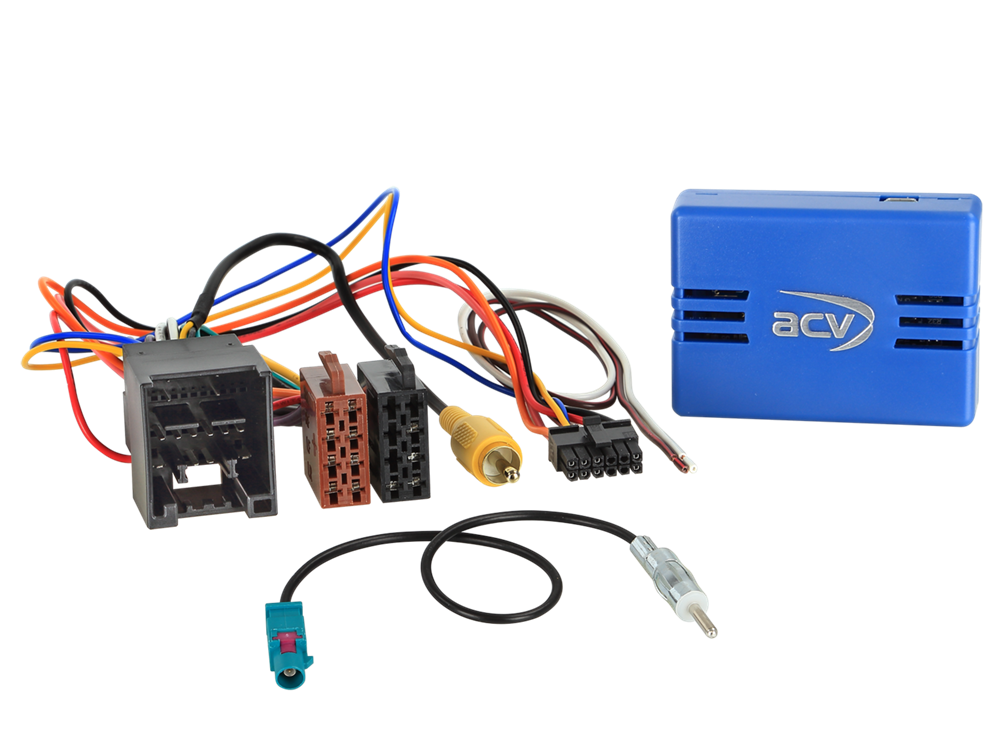

ISO/CAN-BUS KIT FORD 32 PIN (FM-RADIO/TÆNDNING/LYS/BAK-GEAR/KAMERA/SPEED)

Note:

CAN Bus

connector: 32 Pin Ford
connector: Fakra(m) > DIN(m)

outputs:

pink: +12V ignition clamp 15 1,5A max.
orange: +12V illumination clamp 58 0,1A max.
weiß: +12V reverse 1,5A max.

+12V ignition clamp 15 not safely supported

Vehicles 2020> function not guaranteed

Vehicle application:

Ford Transit (V363) 2018 - 2021
Ford Transit Custom 2018 - 2021
Ford Transit Connect 2018 - 2021

The following signals are provided:

Ignition
Illumination
Reverse
Speedpulse
