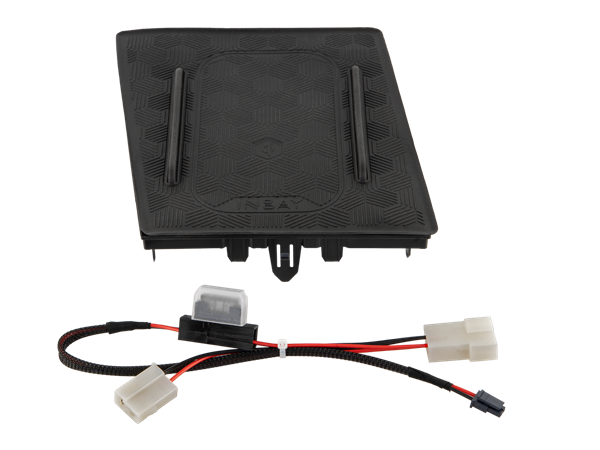

INBAY® QI TRÅDLØS OPLADNING 10W HYUNDAI BAYON/I20 2020>

INBAY® pocket Hyundai

Made in Germany 10 Watt

This pocket supports wireless inductive charging of smartphones using INBAY®

All INBAY® products work with the worldwide established Qi-standard for wireless charging.

All smartphones certified by the international Wireless Power Consortium are compatible with INBAY®.

Compatible smartphones with charging power at the following link:

https://www.wirelesspowerconsortium.com/products

INBAY® meets the following technical specifications:

Qi certified by the Wireless Power Consortium
ECE mark of conformity > 10R - 05 15197
EMV Norm > FMC 1278
FOD - "foreign object detection"

INBAY® in the vehicle:

No interferences with the vehicle bus system
No inteferences with the vehicle electronics
No interferences with audio reception AM/FM/DAB+

Note:

there must be no metallic objects between the charging unit and the smartphone

protective covers must not contain any metallic components

Connector:

power supply > Hyundai-specific Y-cable Plug & Play

Vehicle application:

Hyundai Bayon (BC3) 06/2021 - 06/2024
Hyundai Bayon (BC3) 06/2024 - 2024
Hyundai i20 (BC3) 10/2020 - 05/2023
Hyundai i20 (BC3) 10/2023 - 2024
Hyundai i20 N (BC3) 06/2021 - 2024

Colour:
black

Input voltage:
+12V DC

Output voltage:
5V
9V

Output current:
1,2A max.

Output power:
5W compatible Smartphones > 5W max.
7,5W compatible Smartphones > 7,5W max.
10W compatible Smartphones > 10W max.

Apple iPhone > 7,5W max.
