Varenr.: PXA 45
På lager hos os
Passer til alle biler med iso stik eller hvor der er brugt et bilspecifikt t-kabel. Den originale radio sikring i bilen skal udvides til 25-30 amp. Der kan monteres en kondensator som extra hjælp.
HUSK AT KØBE EN AF KABLERNE HERUNDER. KORT KABEL HVIS FORSTÆRKER MONTERES I INDSTRMENTBORDET, ELLER LANGT KABEL TIL MONTERING UNDER BAGSÆDE ELLER BAGAGERUM.
4 / 2 Ohm, 4x 50 / 50 RMS @ 14.4V
0.5m RCA PRE & REM OUT Interface
8 GA POWER CAP Terminals (recommend optional Capacity Energy Storage)
LxWxH mm 180 x 110 x 45

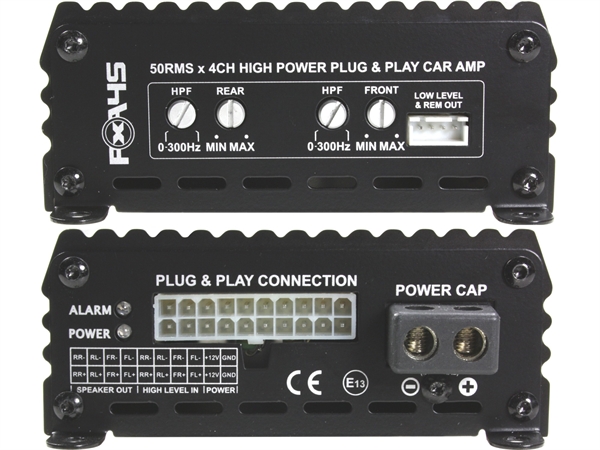

4CH ISO DIN Plug & Play Amplifier and High/LOW Converter, HPF, FRD - Full Range Digital, SMD Technology, Auto Turn ON/OFF @ Plug Mode
Plug eXcursion Amplified Smart OEM Upgrade series offer a maximum installation comfort with a maximum performance. This in order to upgrade OEM car audio to an upper professional level while keeping the fully reconstruction capability. PXA45 feature heavy duty stackable heatsink design with military standard for Terminals and electronic parts. The EXCURSION 1,8m Plug & Play ISO harness connect via 20Pol the amp direct with the ISO OEM Plugs of your car. While Front & Rear speaker get filtered High Pass another RCA PRE & REM OUT await optional PXAB8, SXA or HXA Mono Amplifier. Another novelity of PXA45 are the 8GA CAP Power Terminals which await an optional energy storage like Car Audio Caps or Batteries or flexible as like a Power Distributor. PXA B8 feature heavy duty die cast enclosure designed with its novelity of dual passive Radiators. Those outperform with outstanding SPL efficiency down to bottom. Double side PCB. High efficient Class D or FRD and SMD are already EXCURSION standards. Fully selectable LPF and an up to 12db Bass boost circuit @ 45 Hz as well 0~180° Phase Switch are the all you need tools for a perfect adjustment in every car. Shipping with Remote Controle, various installation hardware and Plug harness.
