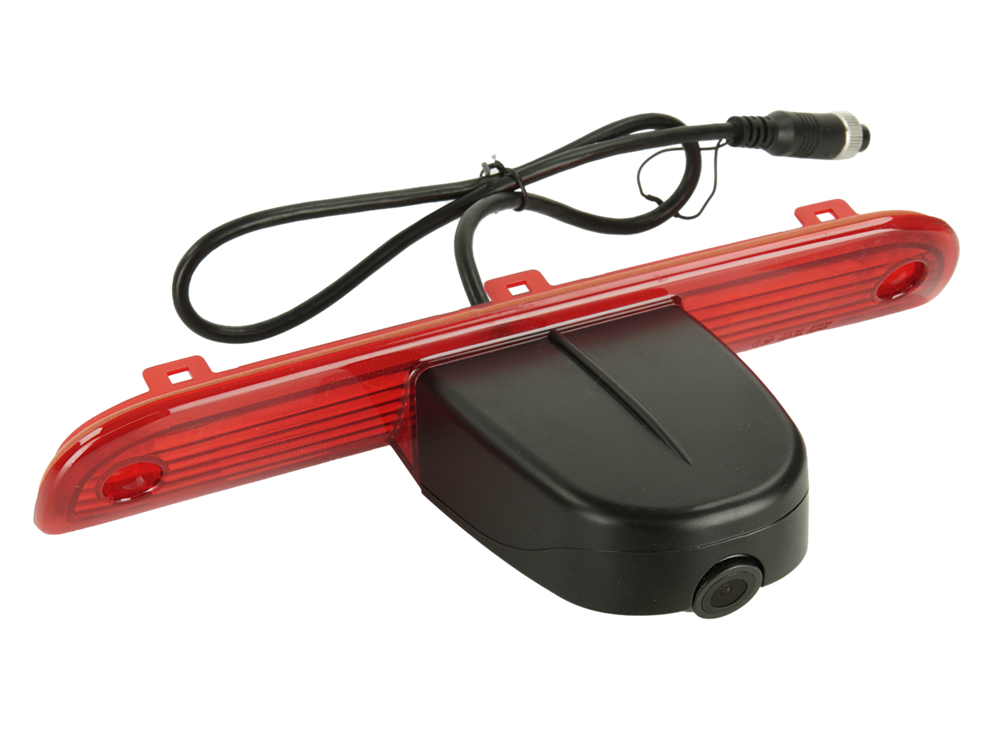

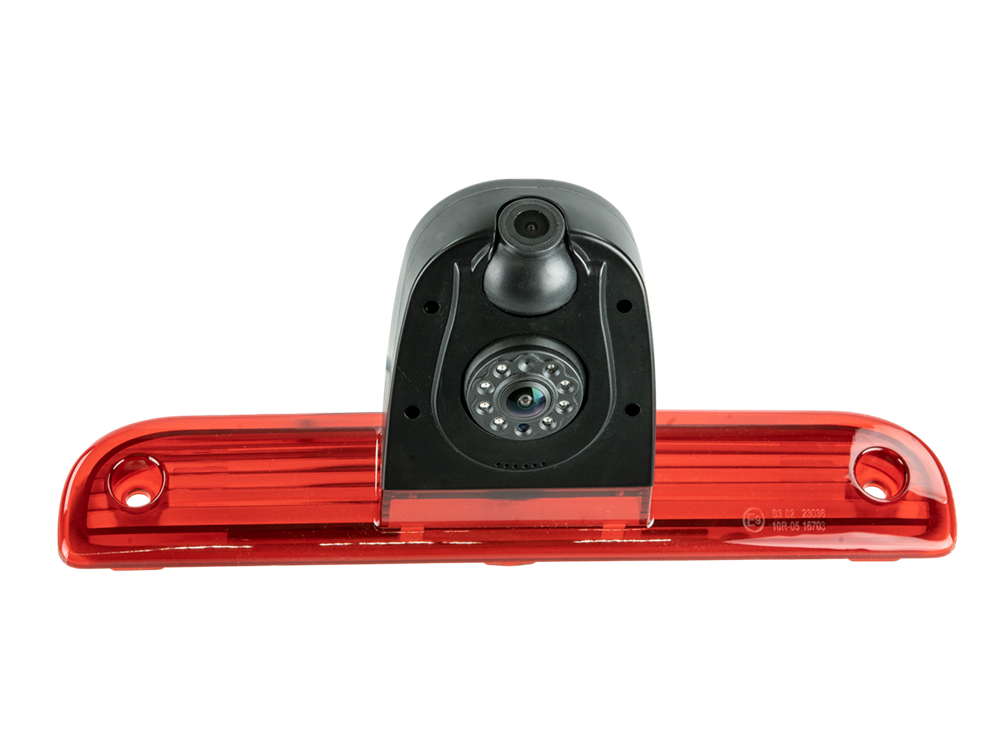

BAKKAMERA FIAT/CITROEN/PEUGEOT DUAL VIEW

Vear view camera dual view (2 camera lenses)

Citroen Jumper 2006 - 2021

Fiat Ducato 2006 - 2021

Peugeot Boxer 2006-2021

to replace the OEM 3rd brake light at vehicles with interior accessories
with guiding lines and night view
20° adjustable view angle

Note:

all acv cameras are suitable for +12V continuous operation

solution for vehicles with interior trim such as Motor Home or tool and gear truck
installation takes place without the need of screwing into the trunk or interior

connection:
red +12V switched load-stable (fused)
black ground car body direct

Product characteristic:

Design: plastic
Color: black / red
Extras: 2 camera lenses and night view, 20° adjustable view angle
Image sensor: 1/3" CMOS
TV system: NTSC
Effective pixels: 976 x 592
Lens: 1,9mm / F 2.0
Min.Lux: 0 Lux with active nightview
Resolution: 600 TV lines
View angle camera 1: horizontal 115° vertical 75° + 5°
View angle camera 2: horizontal 48 + 5° vertikal 34 + 5°
IP Rating: IP 68
Terminal: 7 Pin plug (male)
Power supply: DC 12V + 10%
Current consumption: 200mA during active night view function
Operating temperature: -30°C - 75°C
Storage temperature: -40°C - 80°C
Measurements: looks as OEM 3rd brakelight

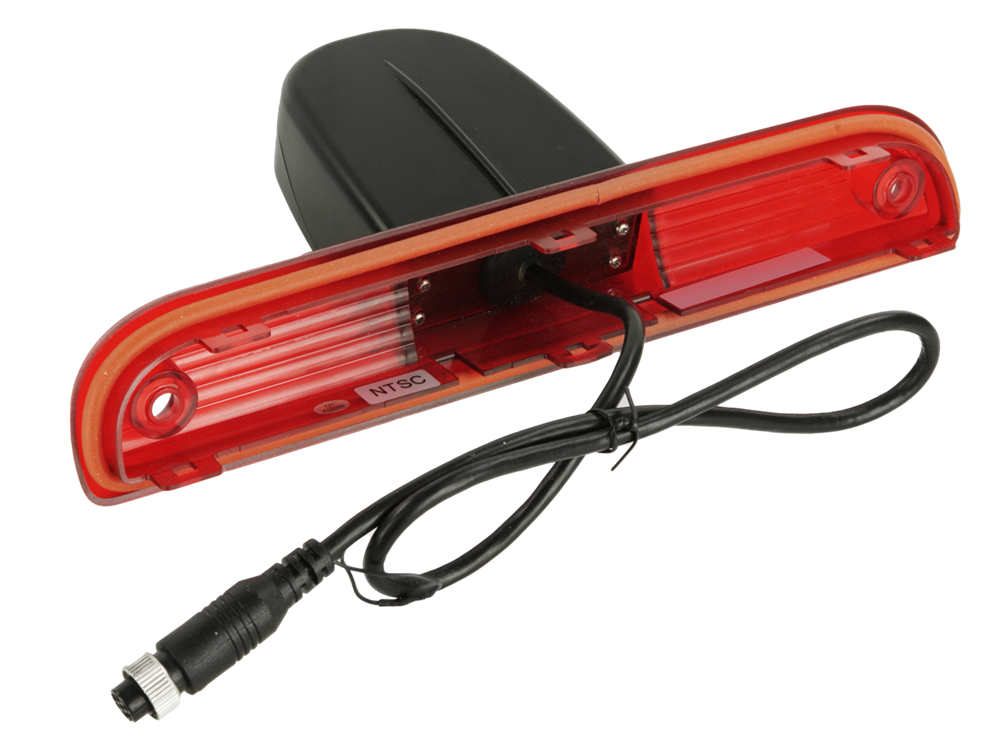

Pigtail at the camera:

0,5 Meter cable 7 Pin plug (male)
connector: guiding lines

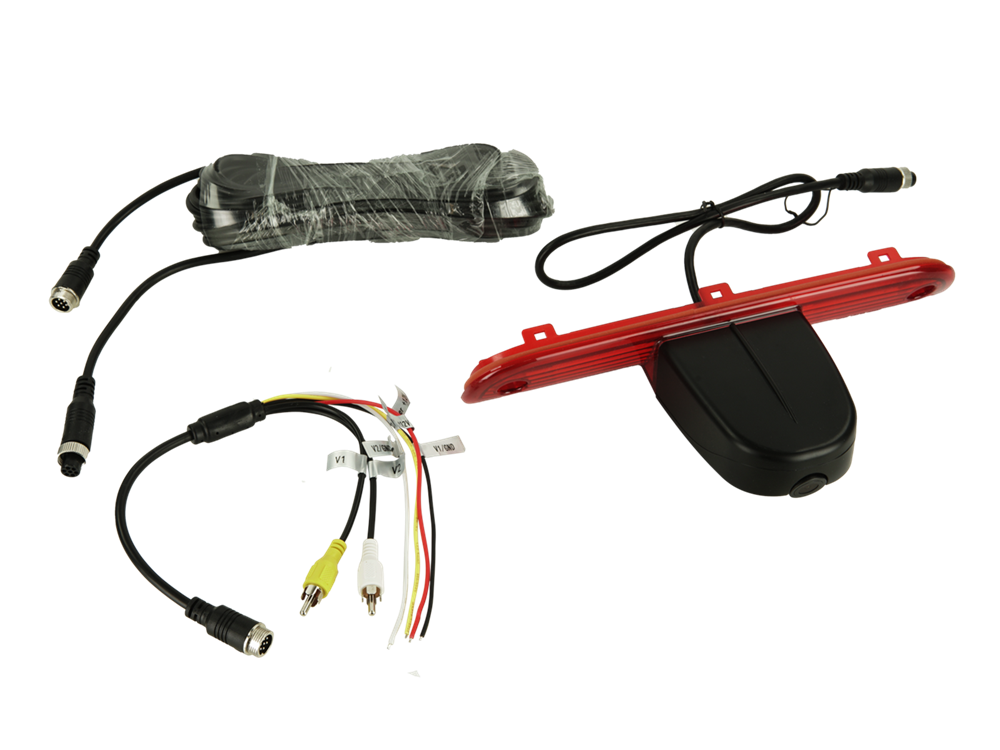

System harness:

6,5 meter 7 Pin plug extention

0,2 Meter 7 Pin connector

Connection:

red:+12V switched (reverse light/ignition)
black: ground chassis
yellow: trigger +12V swiched camera1
RCA yellow: camera1
white: trigger +12V swiched camera2
