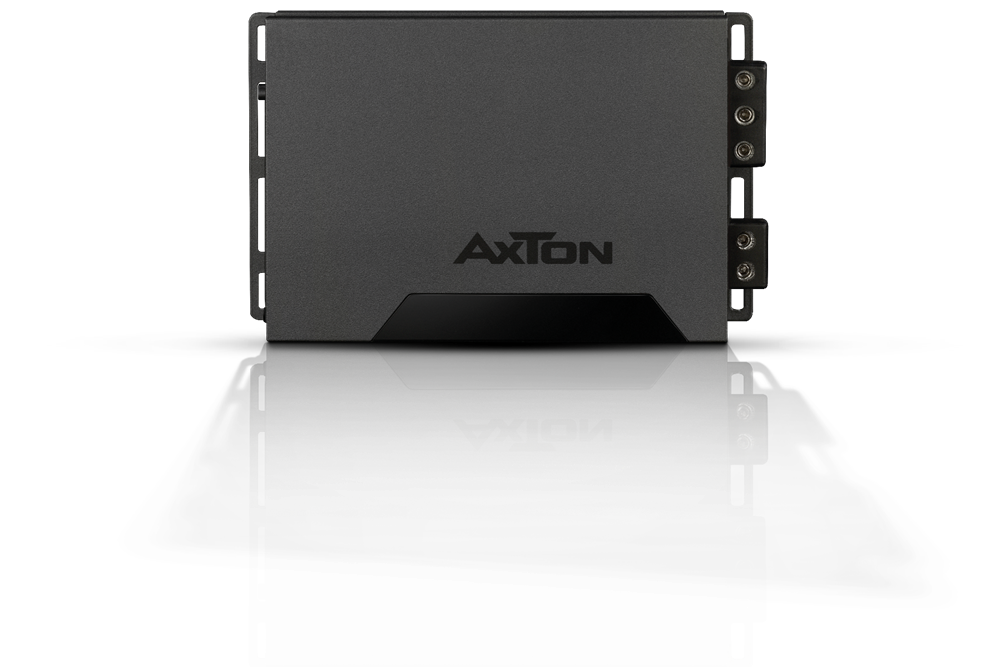

All about the AT101 Mono 24 V Truck Class-D Amplifier
Anyone who is on the road in their truck for days or weeks also wants convincing sound in their vehicle: when listening to music while driving or watching videos during rest periods. Retrofitting an amplifier is a simple measure to enormously improve the performance and sound of factory systems or multimedia / navigation devices – without replacing the entire system. With the new AT-series, AXTON now has two compact amplifiers in its range that can be flexibly installed in trucks and provide power sound and a clearly audible sound upgrade. The AT-series seamlessly builds on the extraordinary performance of the AXTON A-series and is designed for trucks, truck-based motorhomes and other vehicles with a 24 V power supply. The new AXTON Class-D amplifiers perform at a very high level in terms of sound and technology. Inside the compact housings – they are only 10.5 cm wide and 4 cm high – the well-thought-out amplifier circuit ensures a sound with astonishing performance. These amps give every piece of music with transparency, thrilling dynamics and above all real joy of playing. The design of the circuit board layout is optimized for lowest distortion, encapsulated components ensure high immunity to interference. The AT101 mono amplifier is equipped with active crossovers, high-level inputs with auto-turn-on and a bass level remote control.
Highlights
Ultra-compact Class-D amplifier for trucks
24 V power supply, voltage range 12 - 32 V
Aluminium heat sink for optimal heat dissipation

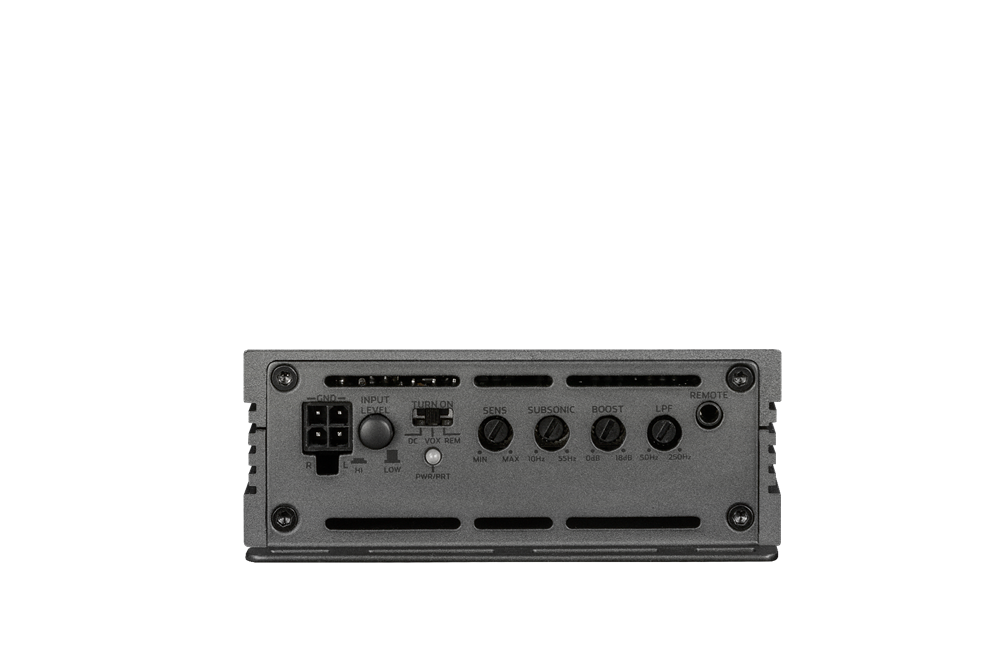

High-Level/Low-Level Input
Auto-Turn-On via DC-Offset or music signal
Integrated electronic crossovers: 12 dB/oct low-pass filter (50 - 250 Hz), 12 dB/oct subsonic filter (10 - 55 Hz)
Bass Boost Control @ 45 Hz (0 - 18 dB)

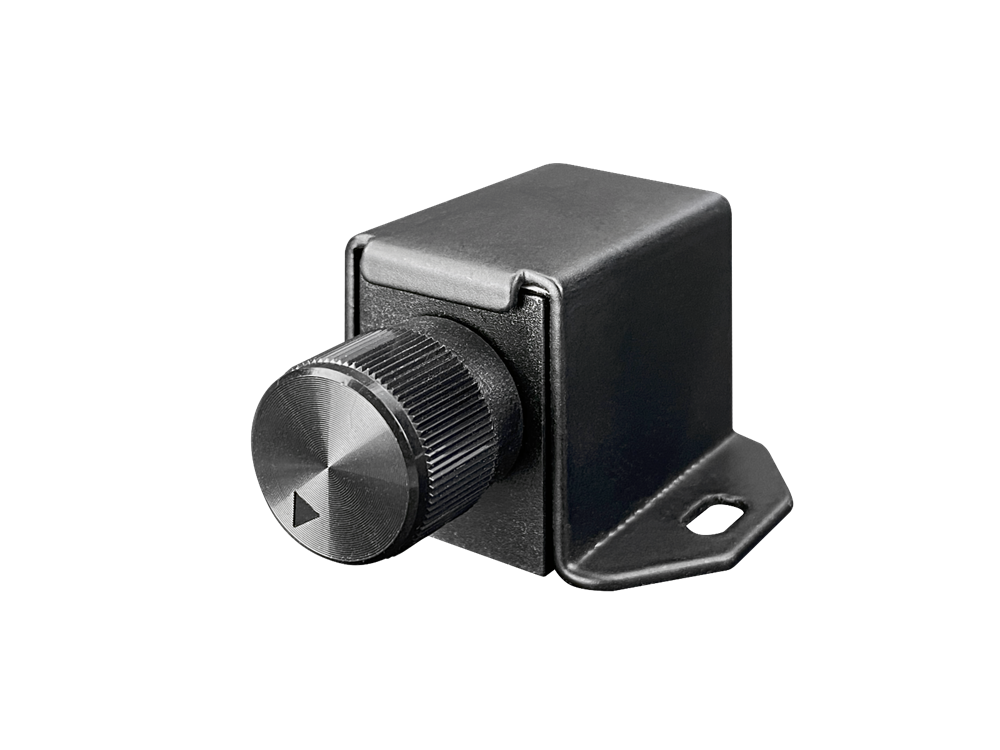

Bass level remote control
Specificationen
Output power @ 4 Ohm
1 x 230 W RMS
Output power @ 2 Ohm
1 x 380 W RMS
Frequency response:
15 Hz - 250 Hz
Signal-to-noise ratio:
>86 dB
Variable input sensitivity:
0,4 - 10 V
Dimensions (W x H x D):
185 x 40 x 105 mm
