Varenr.: A894DSP
På lager hos vores leverandør
Download manual
SOFTWARE til Apple og Android kan downloades på Axton.de Leveres uden kabler så vælg bilspecifikt eller universalt til t-kabel brug. Kan også laves plug and play til mange modeller biler med bilspecifikt tilslutning.
8.1-Channel DSP with eigth DSP-based amplified outputs with 8 x 75 W RMS @ 2 ohms
BTL-Mode 8.0, 6.1, 4.2 and 4.1 with up to 400 W RMS @ 2 ohms bridged
6-Channel High-Level Input including Channel-Routing
DSP-based Dual-Mono RCA/Cinch-preouts
DSP-based optical Stereo-Output
Operating by iOS or Android App
Bluetooth Audio Streaming
Content of delivery: 1 x DSP amplifier, 5 x wiring harnesses, 1 x manual
More Information
All about the A894DSP DSP-Amplifer

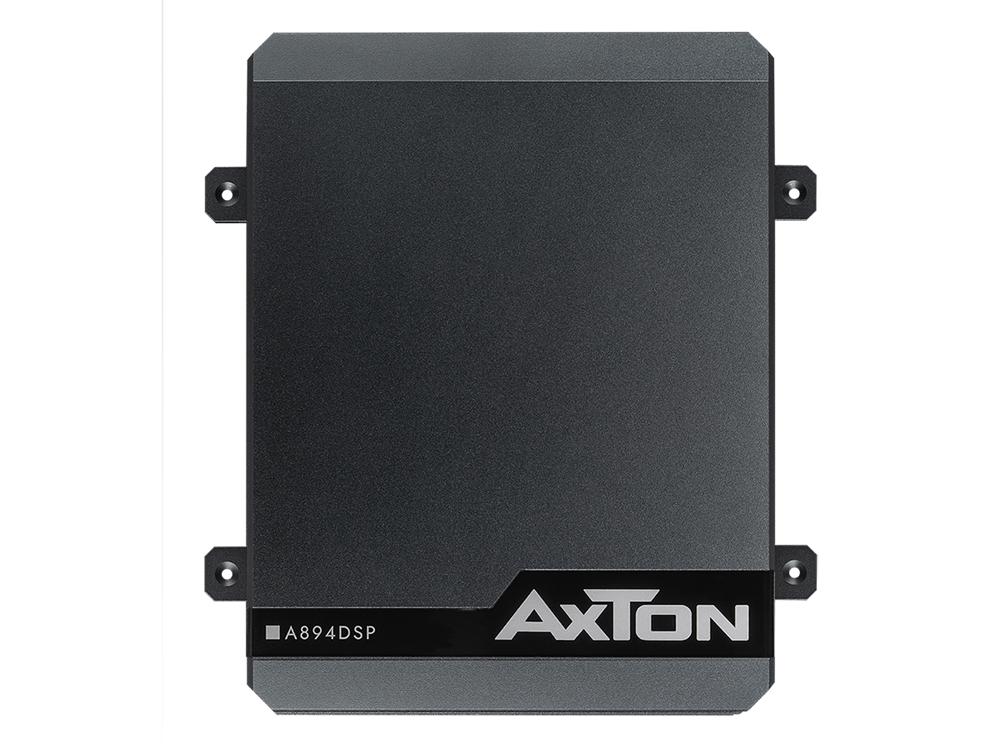

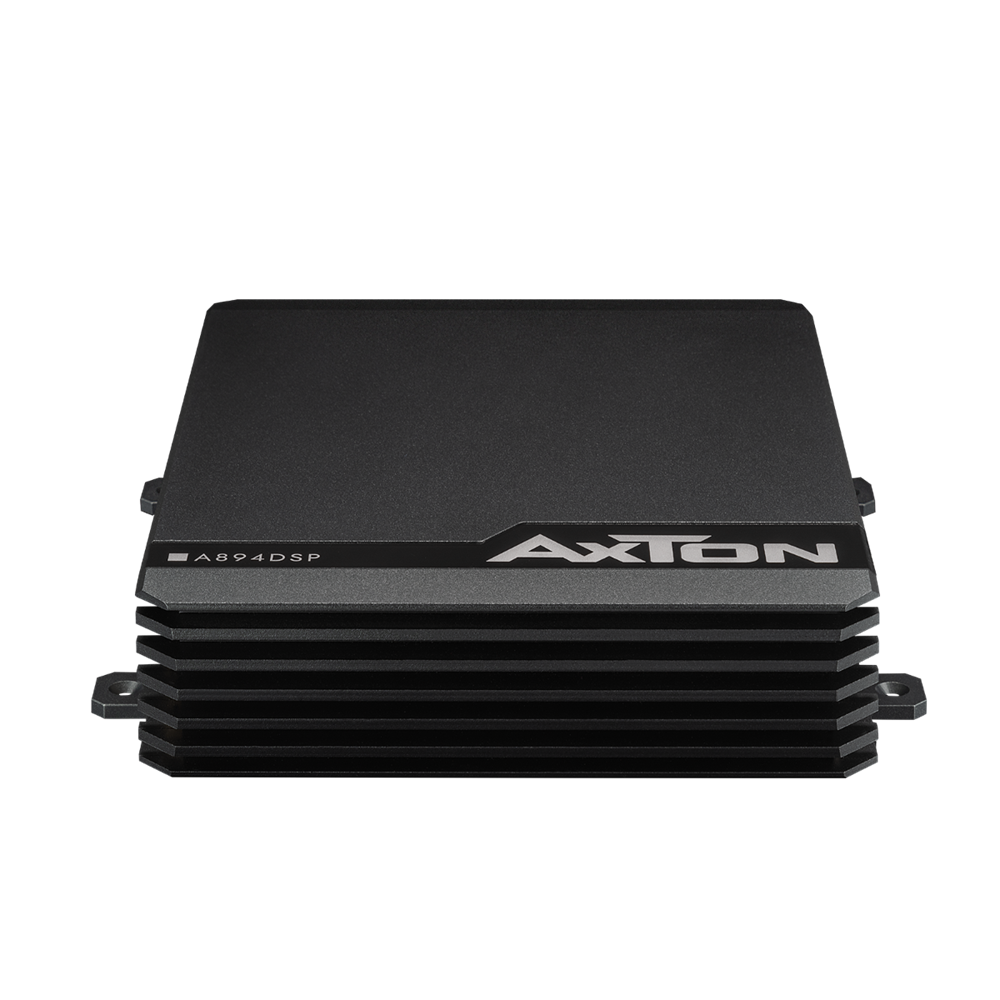

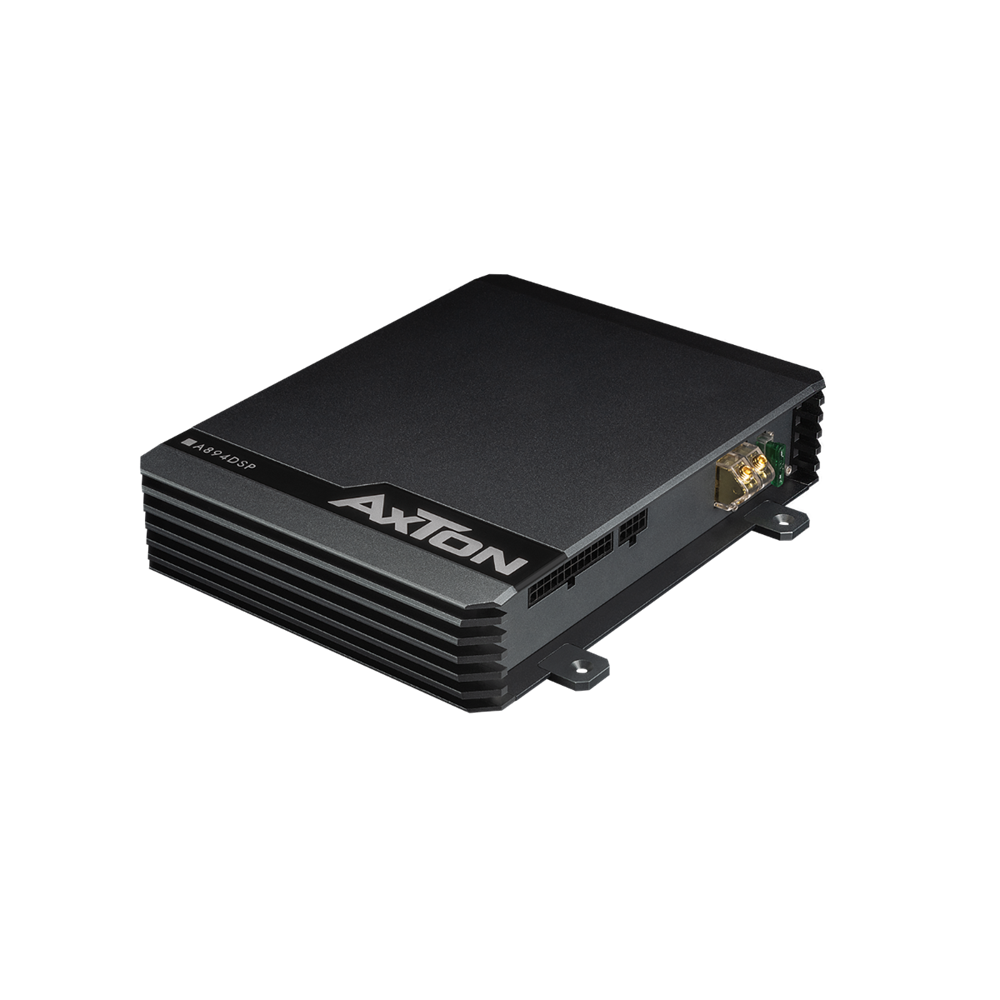

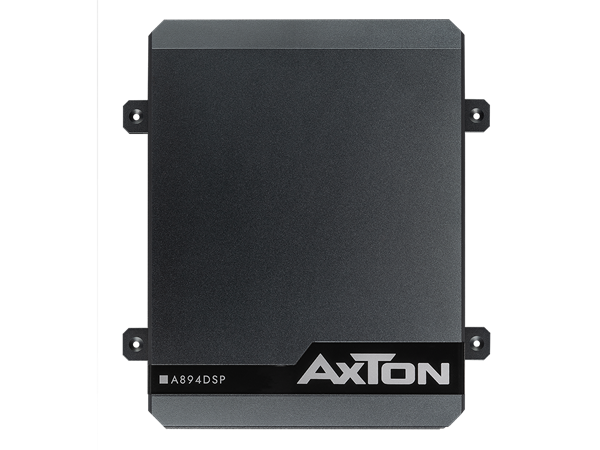

The compact 8.1-channel SMART DSP amplifier A894DSP is the ideal upgrade for many ex-works sound systems.
All in to Win
Six high-level inputs and matching optional plug & play cables enable connection not only to standard sound systems, but also to a wide range of partially and fully active car audio systems. The high practicality of the A894DSP is already evident in the input section: the input channels can be distributed, split or merged to the output channels with complete flexibility. As a highlight, the input equalizer can even be used to linearize the music signal if required.
Plug & Play connection to premium sound systems
Separate ATS-ISO8xxx cable harnesses are available for the A894DSP, which support up to six high-level inputs and enable connection to premium sound systems with an integrated amplifier. The connectors of these A894DSP P&P cables are custom-fit for maximum retrofit capability. Setups are already stored in the Axton app for each of these P&P cables. Find your vehicle and the right cable in the configurator on our homepage.
Plug & Play standard connection of the A894DSP
With the ATS-ISO8BASIC adapter, the A894DSP can be used with all AXTON Specific wiring harnesses. Our carefully crafted ATS-ISO connection cables fit perfectly with models from over 30 vehicle brands, such as Audi, BMW, Citroen, Dacia, Ford, Mercedes-Benz, Renault and Volkswagen. Find your vehicle and the right cable in the configurator on our homepage.
BTL power
The extensive BTL modes (bridge mode) offer a flexible choice of output channels, e.g. BTL8.0 with 8 x 60 W RMS @ 4 Ohm, BTL6.1 with 6 x 60 W + 1 x 230 W RMS @ 4 Ohm, BTL4.2 with 4 x 60 W + 2 x 230 W RMS @ 4 Ohm or even 4.1 with up to 4 x 75 W + 400 W RMS @ 2 Ohm for the subwoofer. With this high power, not only can the performance of the original factory speakers be improved, but there is also enough power to drive high-quality retrofit speakers.
If even more power or additional channels are required, the dual mono RCA output or the optical stereo output can be used to conveniently forward an individualized signal to a separate subwoofer or center amplifier.
Take Control
All functions of the integrated digital sound processor can be controlled via a single AXTON smartphone app, which is available free of charge for iOS and Android. The app enables extensive DSP sound settings per channel such as channel routing, delay time correction, freely configurable frequency filters (6/12/18/24 dB in the three selectable Butterworth, Bessel and Linkwitz-Riley characteristics), gain control as well as a 31-band parametric output equalizer and 9-band input EQ. A bass and a treble control are available for quick sound manipulation. Up to five favorites can be saved on the A894DSP and an infinite number of setups on the smartphone.
Presets
Predefined setups are already integrated in the app for each of the A894DSP-specific plug & play connection cables. These presets include the channel routing and a pre-setting of the crossover frequencies for the target vehicle and simplify the installation considerably. Of course, these settings can still be customized and adapted to your own hi-fi concept.
Bluetooth and more
The integrated Bluetooth audio streaming interface makes it easy to stream your own music collection to the amp. The A894DSP also offers the option of playing Hi-Res Audio music data with the ABT50 streaming interface, which is available separately. Thanks to the optical inputs and outputs, several AXTON DSP amplifiers can be linked together without signal quality loss. A separately available A592DSP-RC remote control can be connected to the A894DSP.
Highlights
8.1-channel Smart Class-D amplifier with iOS or Android app-controlled
audio DSP functions
6-channel high-level input for easy connection to OE sound systems
with amplifiers
Free channel assignment: distribute, split or merge music signals
DSP-controlled Dual-mono preamp output (5 volts) including
remote output for controlling additional amplifiers

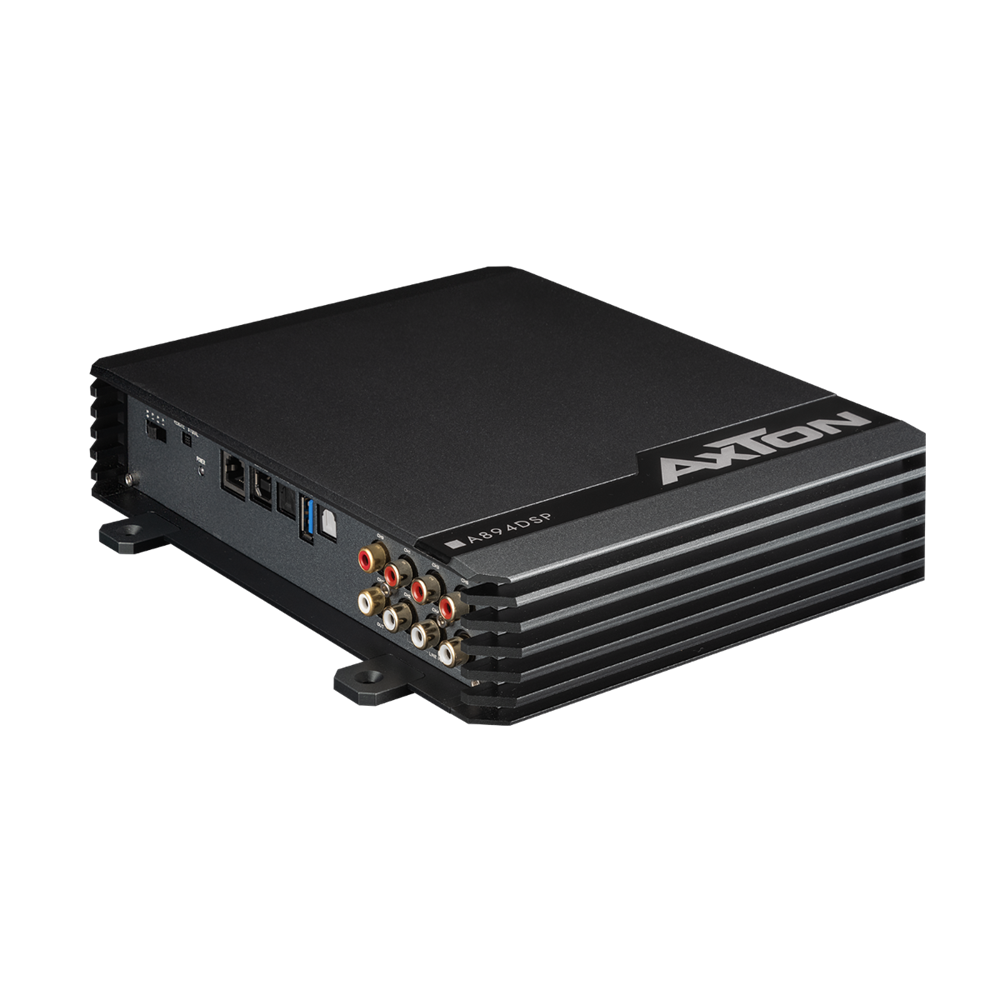

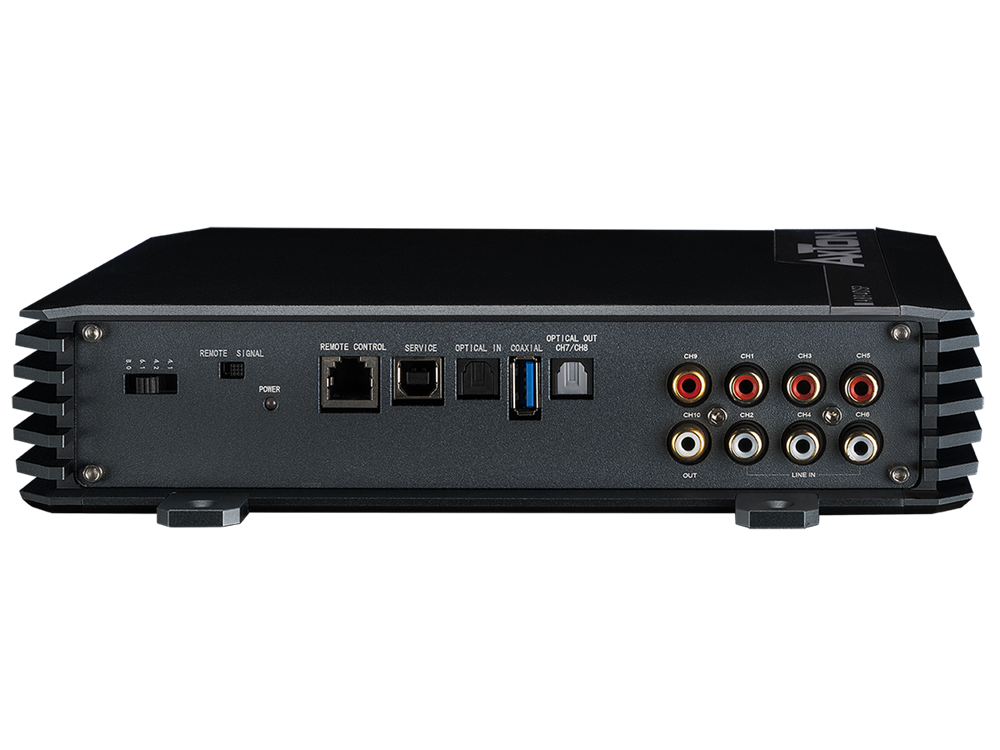

6-channel RCA input
Optical and coaxial input for the high-res audio streaming interface
ABT50 or another AXTON SMART DSP amplifier
Optical output for linking the signal to another AXTON SMART
DSP amplifier
Bluetooth audio streaming with automatic source switching
Plug & play installation with optional vehicle-specific connection
cables
Ready-made presets already included in the free app
Auto-turn-on function via high-level input
DSP Features
Freely configurable active crossover: high/low/band/bypass with
6/12/18/24 dB/oct. slope
Selectable filter characteristics: Butterworth, Bessel or Linkwitz-Riley
Time alignment for each channel (0 – 550 cm / 0 – 15.8 ms)
Gain, phase switch and Mute function for each channel
Freely configurable 31-band parametric equalizer for each channel
Freely configurable 9-band parametric input equalizer for each
source
Storage spaces for your own settings: 5 on the amp, unlimited
on the smartphone
Dynamic Bass and Dynamic Treble function
Noise Gate function to reduce car stereo background noise
Specification
DSP
DSP type: AKM7735 Dual DSP
ADC: 2x 24-bit
DAC: 2x 32-bit
DSP MHz: 2x 150 MHz
Audio sampling frequency: 192 kHz
Bluetooth
Bluetooth power class: 2
Bluetooth power: 2.5 mW / 4 dBm
Bluetooth range: 10 m
Bluetooth frequency: 2.4 – 2.48 GHz
Amplifier
RMS Power Output BTL8.0-Mode 4/2 ohms: 8 x 60 W / 8 x 75 W
Max Power Output BTL8.0-Mode 4/2 ohms: 8 x 120 W / 8x 150 W
RMS Power Output BTL6.1-Mode CH7+8 @ 4 ohms: 1 x 230 W
RMS Power Output BTL4.2-Mode CH5+6 / CH7+8 @ 4 ohms: 2 x 230 W
RMS Power Output BTL4.1-Mode CH5+6+CH7+8 @ 4 ohms: 1 x 230 W
RMS Power Output BTL4.1-Mode CH5+6+CH7+8 @ 2 ohms: 1 x 400 W
Frequency response: 20Hz ~ 20 kHz
High-Level Sensitivity: 4.2 Vrms
High-Level Impedance: 39 Ohm
RCA max voltage: 5 Vrms

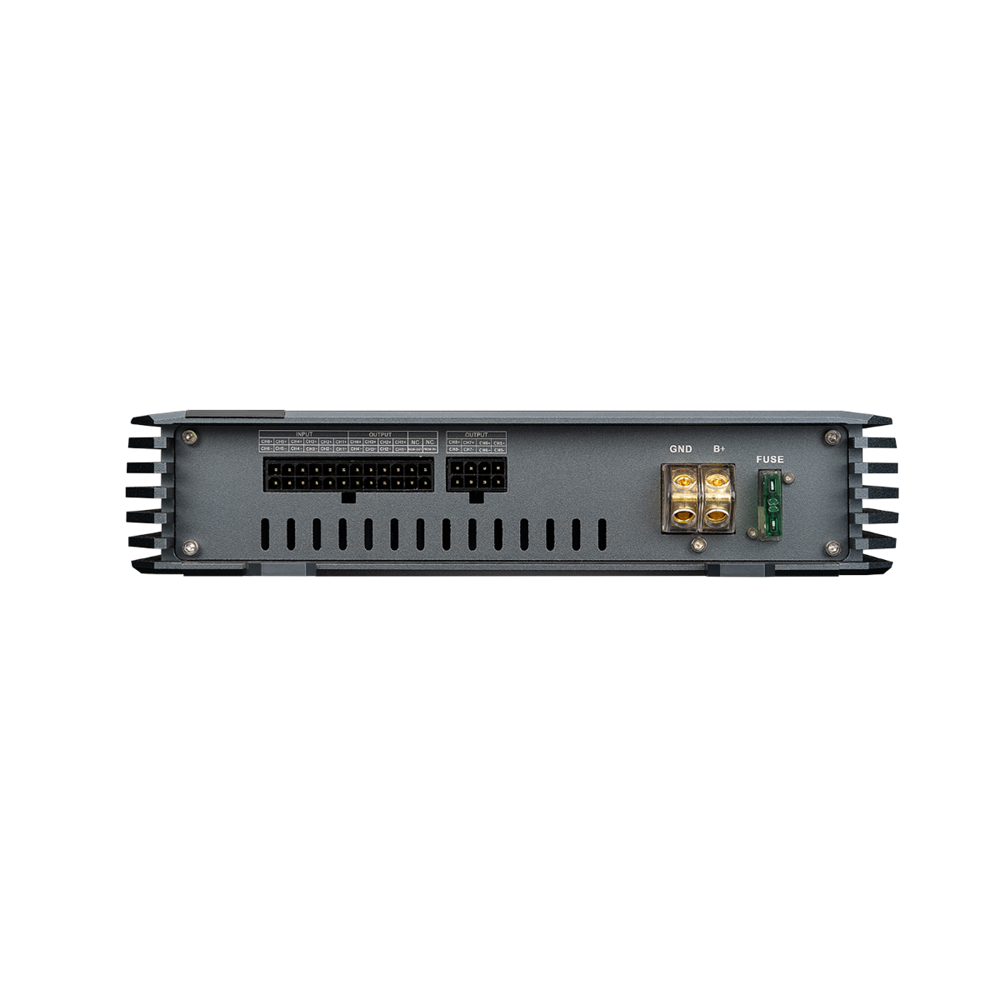

Supply voltage range: 7.5 V – 16.5 V
Signal to noise ratio digital input: > 112 dB
Signal to noise ratio analogue input: > 106 dB
THD: 1 KHz < 0.0133%
Damping factor: >= 200
Standby current: 0.23 A
Maximum operating current: 30 A
Maximum Remote output power: 0.5 A
Dimensions (WxHxD) 238 x 180 x 50 mm
