AXTON A101 DIGITAL MONO FORSTÆRKER

All about the A101 Digital Amplifier

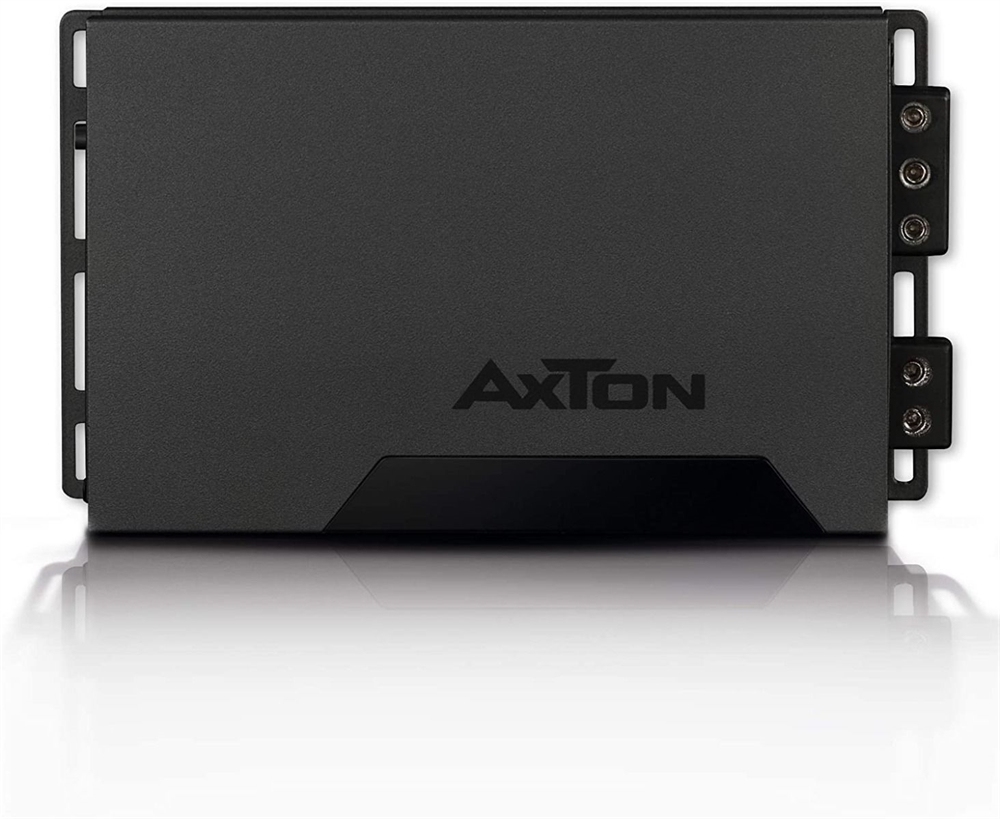

For those who want to upgrade their music system with a compact but powerful quality amplifier, car audio specialist AXTON has the 1-channel power amplifier A101 in the program: Minimal 10.5 cm wide and 4 cm high, this amplifier offers a lot of power in the smallest space. Thanks to the compact dimensions, the Class D amp can be flexibly installed in the car, motor home or caravan. The black aluminum housing is first-class processed and thoughtfully designed: Despite the compact dimensions, the massive heat sink conducts the heat specifically to the outside and thus ensures an optimal operating temperature throughout. The amplifier circuitry and the PCB layout are optimized for lowest distortion and exclusively equipped with selected components. The A101 is 1 ohm stable, extending the range of applications. With 600 W RMS @ 1 Ohm, the bass amplifier not only makes subwoofers sweat. The mono amplifier has an integrated 12 dB/oct. low-pass filter (continuously adjustable from 50 - 250 Hz), a 12 dB/oct. subsonic filter (continuously adjustable from 10 - 55 Hz) and a bass boost control @ 45 Hz (0 - 18 dB). In addition, there are high-level inputs with auto-turn-on function for connection to original radios without RCA output - so the amplifier can be easily combined with factory-installed radios. A bass level remote control is included.
Highlights
Ultra-compact Class-D amplifier
Aluminum heat sink for optimal heat dissipation
12 dB/oct. low pass filter (50 - 250 Hz), 12 dB/oct. subsonic filter (10 - 55 Hz)
Bass Boost Control @ 45 Hz (0 - 18 dB)
High-Level/Low-Level Input
1 Ohm stable
Auto-turn-on via DC offset or music signal
Fully suitable for vehicles with automatic start/stop system

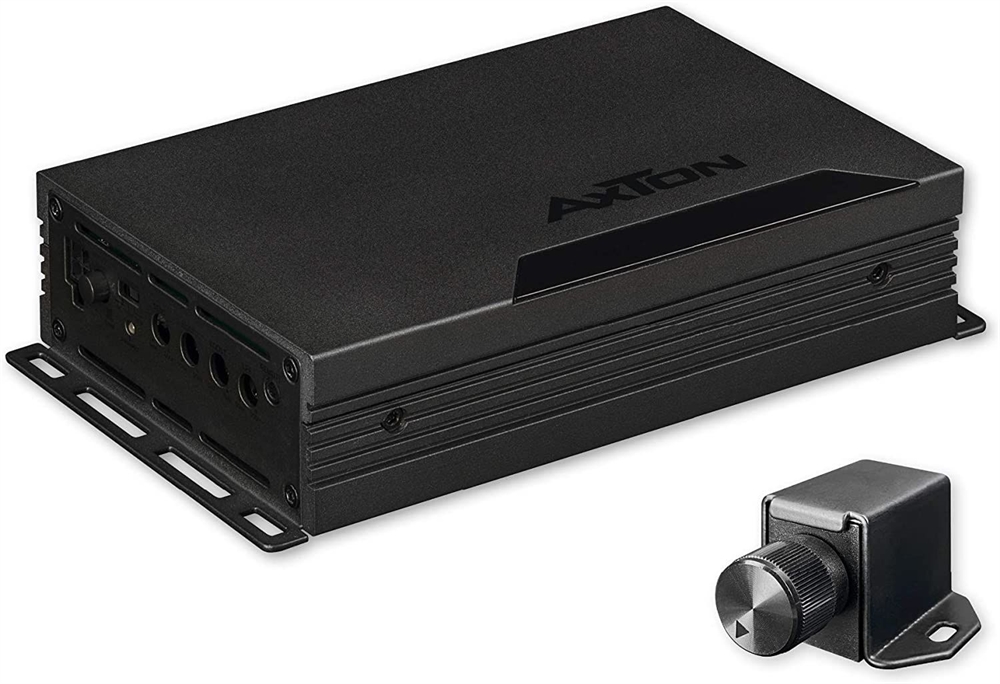

Bass level remote control included
Spezifikationen
Output power @ 4 Ohm
1 x 230 W
Output power @ 2 Ohm
1 x 380 W
Output power @ 1 Ohm
1 x 600 W
Frequency response
15 Hz – 250 Hz
Integrated electronic crossovers
12 dB/oct. low pass filter (50 - 250 Hz), 12 dB/oct. subsonic filter (10 - 55 Hz)
Signal-to-noise ratio
86 dB
Variable input sensitivity
0.4 – 10 V
Dimensions (W x H x D)
185x 40 x 105 mm
