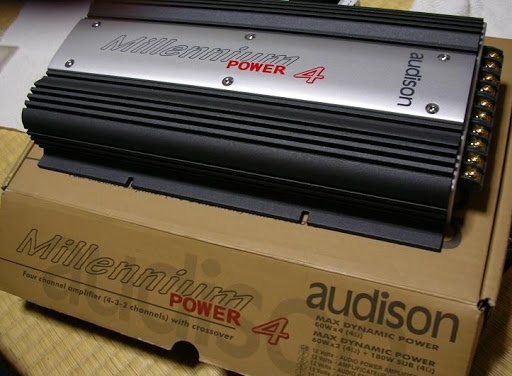

AUDISON MILENNIUM 4

TECHNICAL DATA
POWER SUPPLY 11 ÷ 15 VDC
IDLING CURRENT 1 A
MAX COMSUMPTION (Nominal Pwr) 26 A
MAX DYNAMIC POWER (4 ch x 4 Ohms) 60 W
MAX DYNAMIC POWER (3 ch x 4 Ohms) Sub 60 + 60 + 180 W
CONT. NOMINAL POWER (Tol. +10 %; -5 %)
4 Ch x 4 Ohms; 0.3 % THD; 12 VDC 40 W (RMS)
CONT. OUT POWER (4 Ch x 4 Ohms; 13.8 VDC) 45 W (RMS)
CONT. OUT POWER (4 Ch x 2 Ohms; 13.8 VDC) 65 W (RMS)
MONO OUT POWER (2 Ch x 4 Ohms; 13.8 VDC) Bridge 130 W (RMS)
CONT. OUT POWER (3 Ch x 4 Ohms; 13.8 VDC) 45 + 45 + 130 W
DISTORTION THD (1 KHz; 90 % Nominal Pwr) 0.07 %
BANDWIDTH (-3 dB; Nominal Pwr) 4 Hz ÷ 100 KHz
CROSSOVER FREQUENCY 48 ÷ 4800 Hz
FILTER SLOPE 12 dB/Oct.
DAMPING FACTOR (4 Ohms) 120
RISE TIME 4.5 µS
SIGNAL / NOISE RATIO 98 dBA
INPUT SENSITIVITY 0.3 V ÷ 4 VRMS
INPUT IMPEDANCE 15 KOhms
LOAD IMPEDANCE Stereo 8 - 4 - 2 Ohms
LOAD IMPEDANCE Mono 8 - 4 Ohms
REMOTE IN 7 ÷ 15 VDC
DIMENSIONS (BxHxL) 175 x 50 x 330 mm (6.88 x 1.96 x 12.99 inch)
