AUDIO SYSTEM M-400.1 TERMINAL MONO INDBYGNINGSFORSTÆRKER

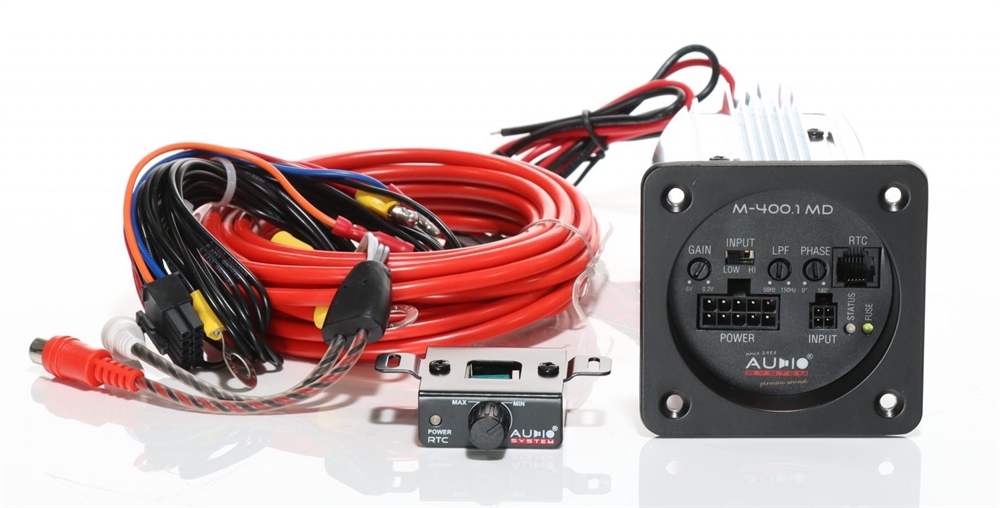

Mono forstærker til indbygning i stedet for standard 8x8 cm tilslutningsterminal. Leveres med tilslutning og strømkabler
Description
M-SERIES 1-Channel Digital Terminal Amplifier
with SMD technology
variable LP-Filter
Subsonic-Filter
RTC (included)
RCA- and High-Level-Input with automatically BTL or Signal dedection and automatically “TURN ON”
continuously adjustable 0-180° Phaseshift,
up to 90% efficiency
6mm² power cable set(5,5m)
1x 200 WRMS at 4 Ohm
1x 400 WRMS at 2 Ohm
front plate 80×80 mm
installation size:68×127(depth) mm
Hvis man vil bygge sin egen indgang så brug micro molex 4 pin. (se herunder)
