Varenr.: DSP 8.12
På lager hos os
Product Information:

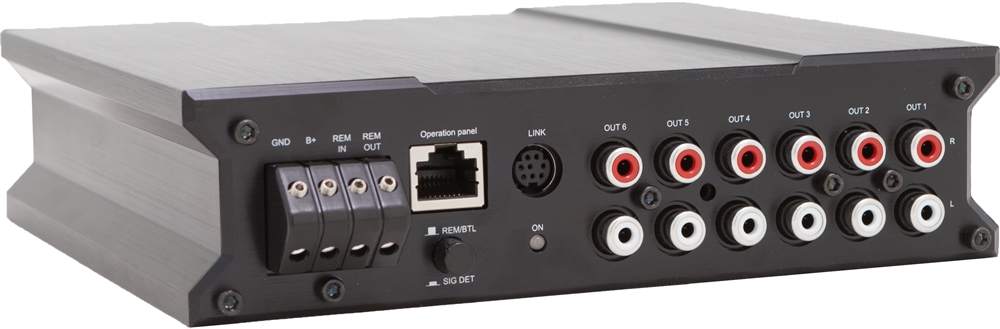

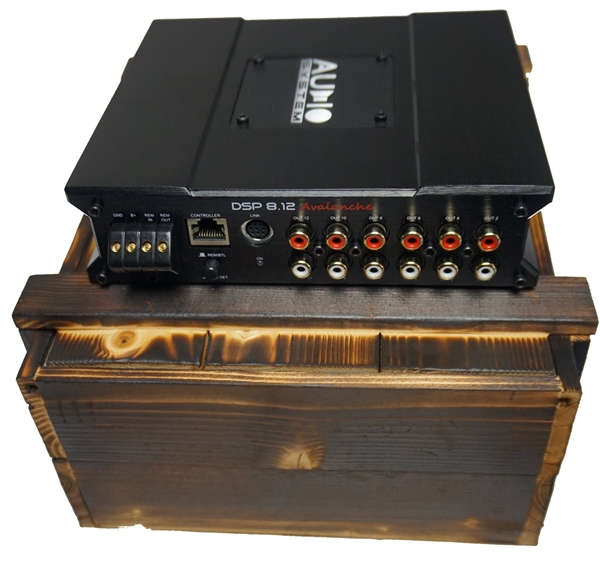

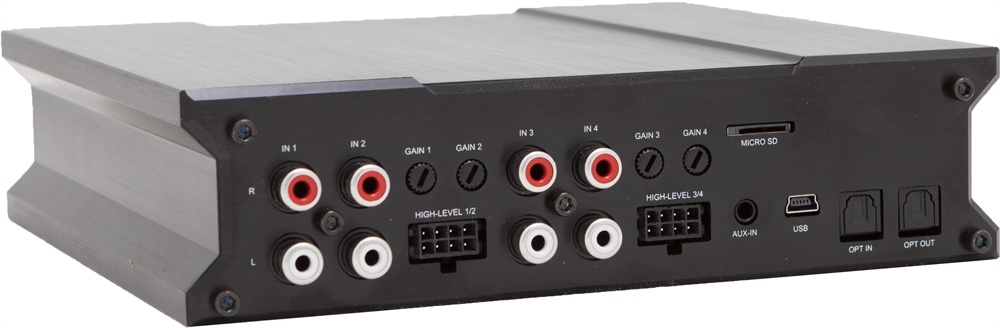

12-channel DSP with Freescale Multi-Core Chip, 8x RCA inputs
(Low level 2 to 4 Volt) und 8x Molex high-level inputs (5 to
20 Volt) with automatic remote, 12x RCA outputs (5 Volt),
1x AUX-input, 1x optical input und 1x optical output,
1x remote-output, SD-card slot. Intuitive GUI, 2 dual-core-
chips with 250 MHz processing power, Sampling rate
192 kHz, Frequenzy range: 10-44000 Hz,Signal to noise ratio: digital:108 dB, analog: 102 dB, crosstalk attenuation higher
92 dB, start/stopp ability 6 Volt/5sec, operating voltage 9,6-
18 Volt, operating temperature -20C° to + 80C°, Dimensions:180x160x45 mm
