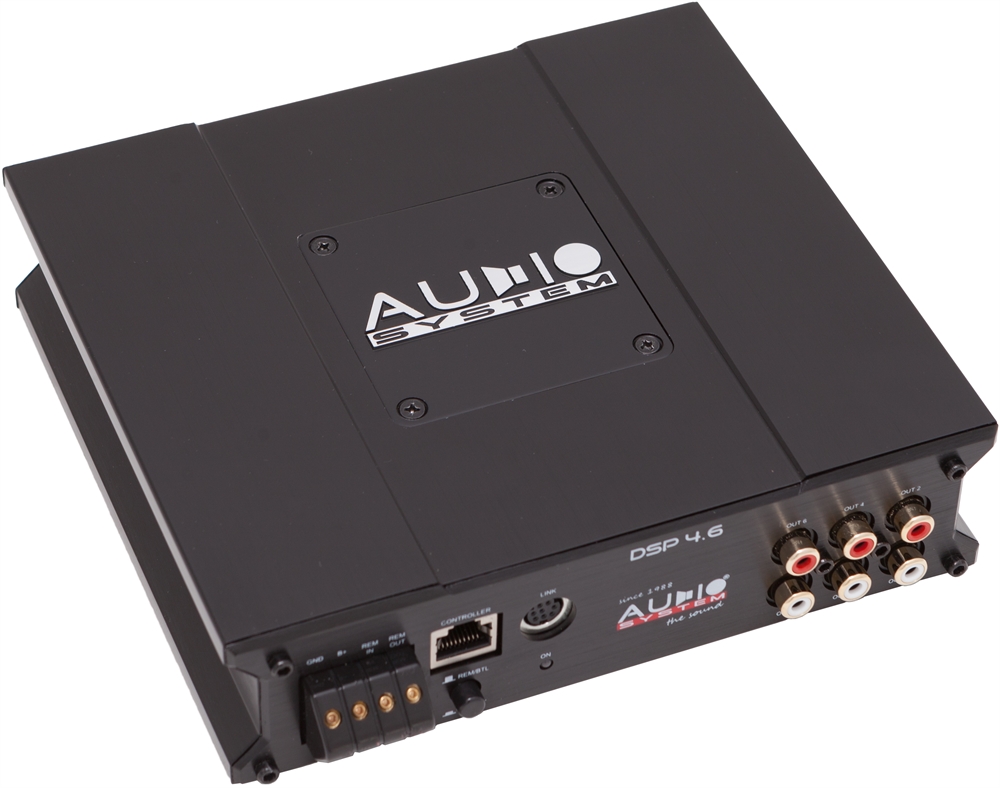

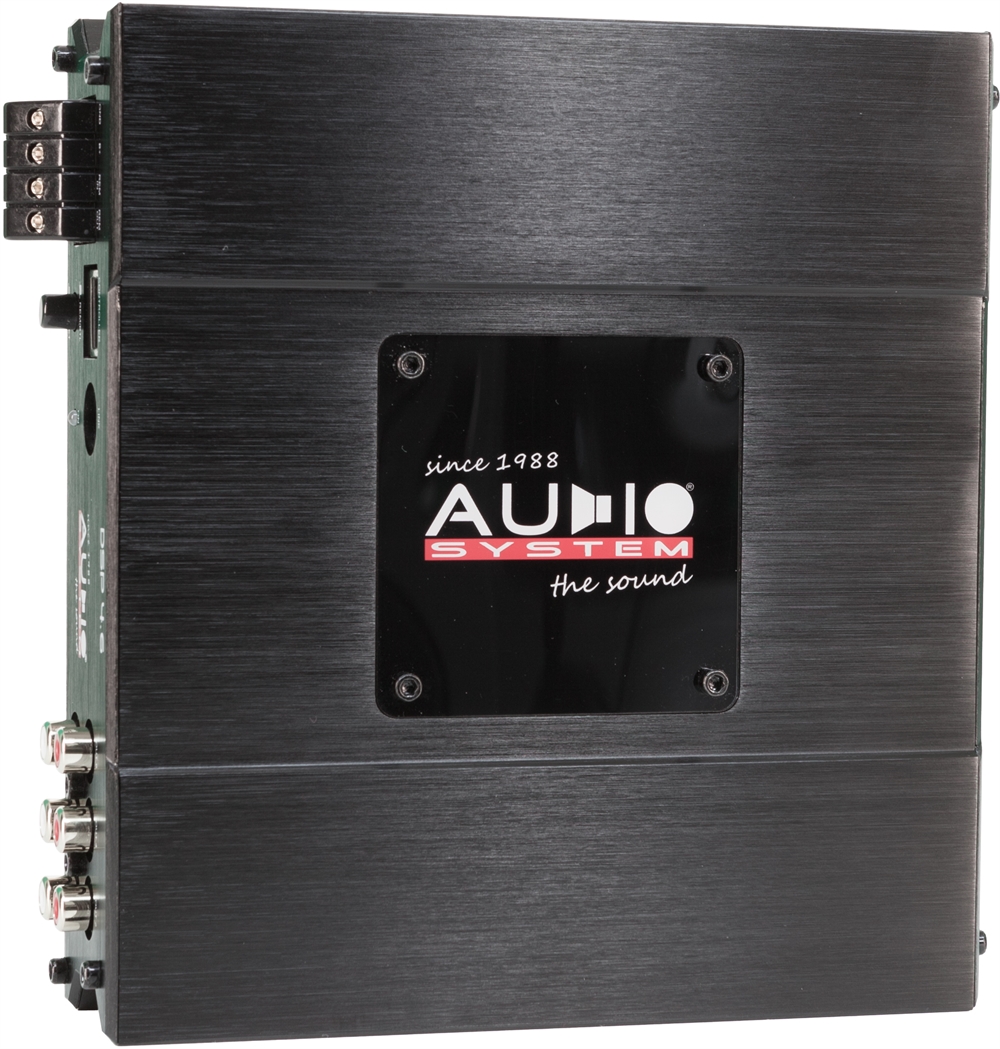

AUDIO SYSTEM DSP 4.6

Product Information:
6-channel high-performance DSP with Freescale multi-core chip. 4 RCA inputs (low level 2 to 4 Volt) and 4x Molex high level inputs (5 to 20 Volt) with automatic switch-on. 6 RCA outputs (5 volts), 1x AUX input, 1x optical input and 1x optical output, 1x remote output, SD card slot. Intuitive GUI, dual-core chip with 250 MHz processing power, sampling rate 96 kHz, (192 kHz optional) Frequency range: 10-44000 Hz Digital signal-to-noise ratio: 108 dB, analog: 102 dB, crosstalk greater than 92 dB, start / stop capability up to 6 Volts / 5sec, operating voltage 9.6-18 volts, operating temperature from -20C ° to + 80C °
Dimensions: 180x160x45 mm
