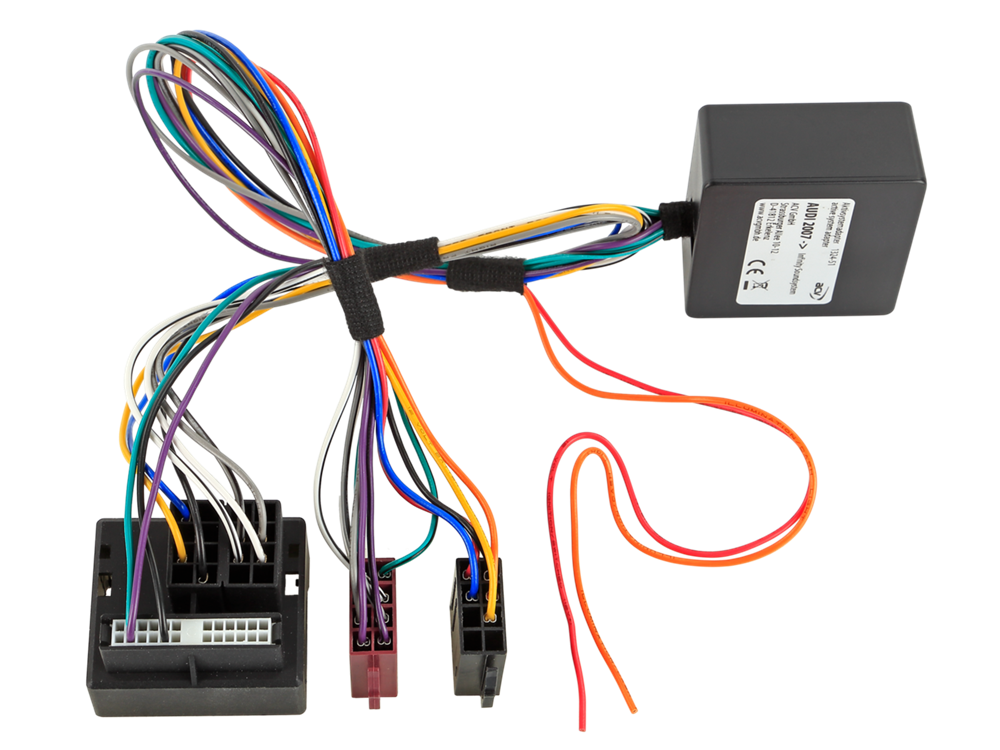

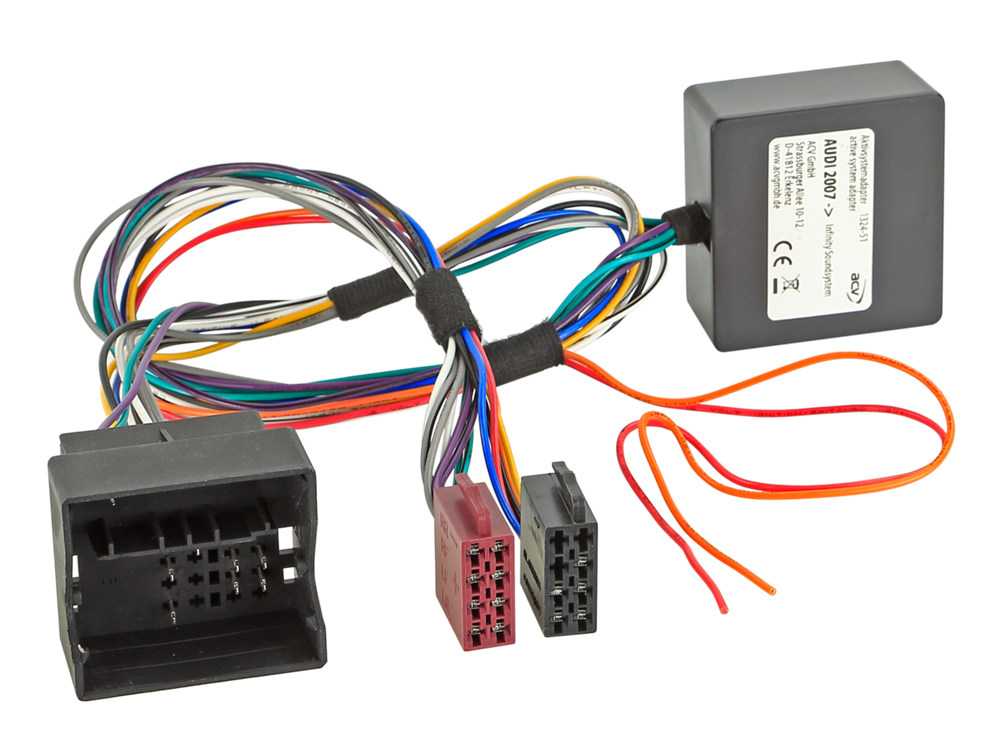

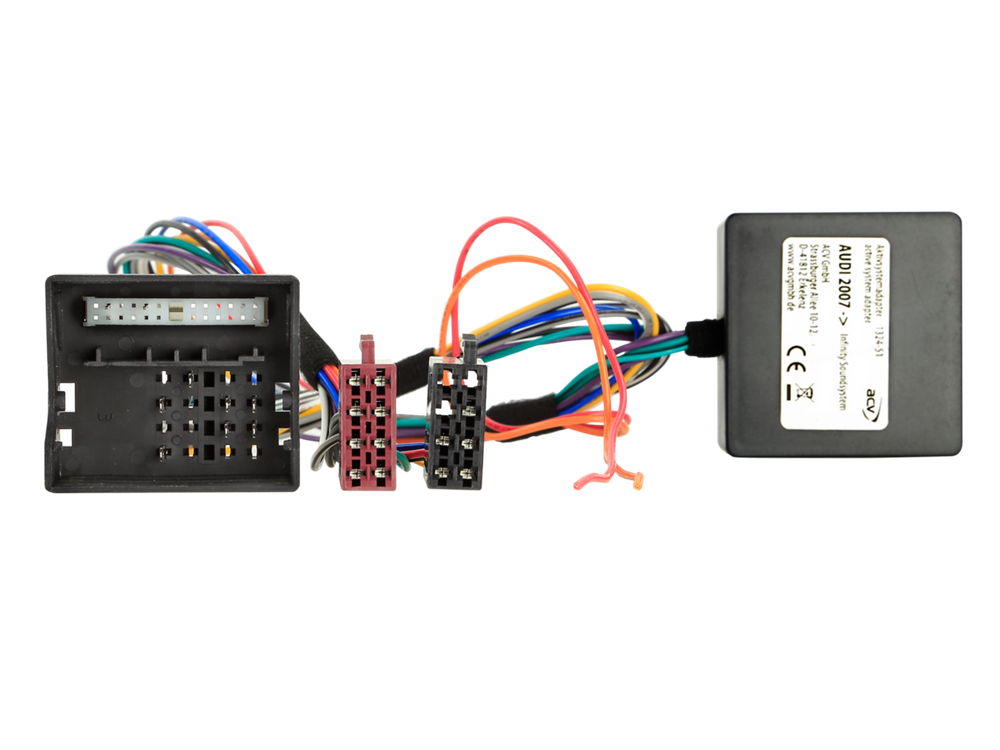

AKTIVSYSTEM INTERFACE TIL AUDI HALVT BOSE QUADLOCK

connector: 40 Pin Audi Quadlock plug > ISO plug

red: +12V ignition clamp 15 fusebox fused*
orange: +12 dimmer clamp 58*

vehicles with 2 Kanal OEM amplified system rear speaker
vehicles with Blaupunkt / Matsushita / Grundig Chorus II / Concert II / Symphony II 2-DIN OEM HU
vehicles with BNS 5.0 monochrome / RNS-E 16:9 OEM Nav Sat

input: 2 x 20 Watt max.

Vehicle applictation:

Audi
Audi A2 For Vehicles With Rear Amplified System 2005 2005
Audi A3 (8P) 05/2003 - 04/2005
Audi A3 (8P) 10/2004 - 04/2013
Audi A4 (B6 (8E) 11/2000 - 10/2005
Audi A4 (B7 (8E) 11/2004 - 02/2009
Audi A6 (C5/B4) 05/2001 - 03/2006**
Audi R8 (42) 04/2007 - 05/2015
Audi TT (8J) 04/2006 - 04/2010
Audi TT (8J) 08/2010 - 03/2014

Seat
Seat Exeo (3R) 03/2009 - 05/2013

**vehicles with RNS-E OEM Sat Nav

Description

Audi Active System Adapter
