Varenr.: 611340-08-1
På lager hos vores leverandør

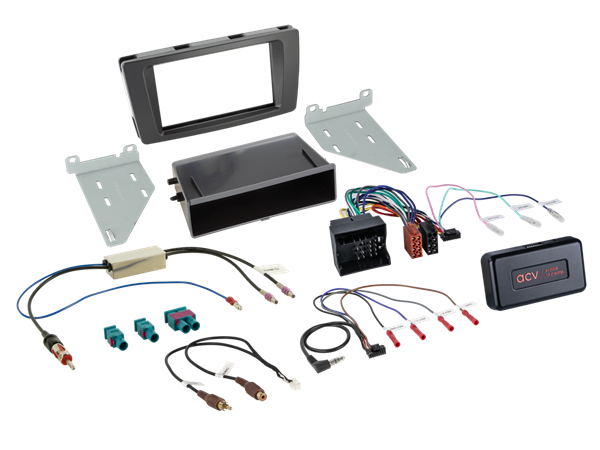

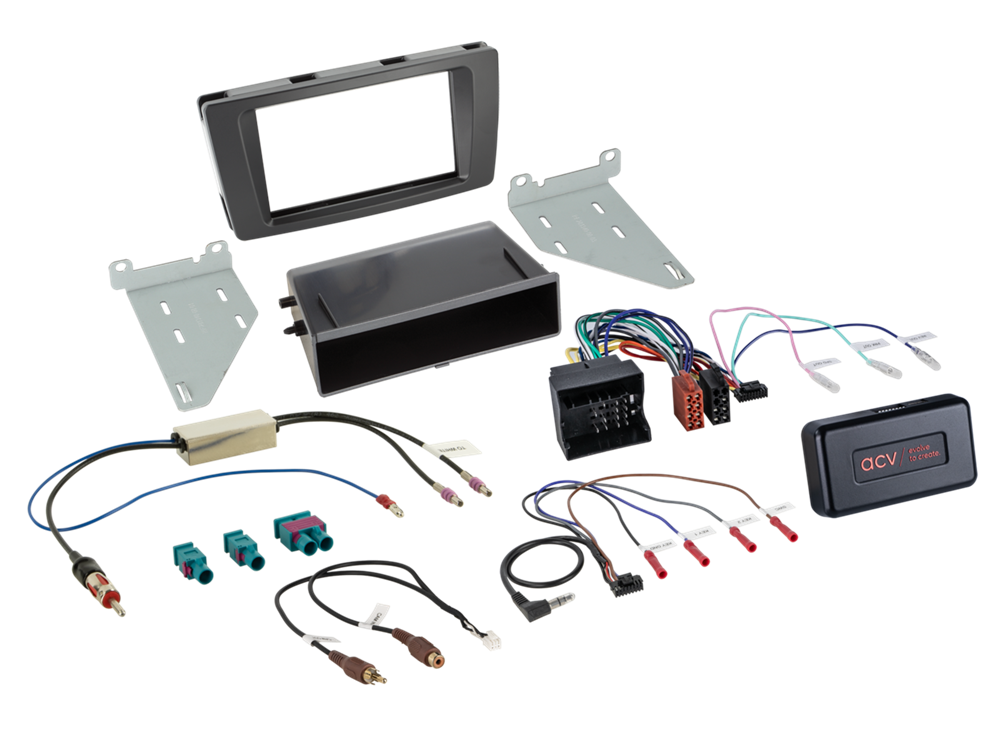

Komplet monteringskit til både 1 og 2-din monteringer. Bibeholder aircon visualisation og parkerings censorer
CAN Bus
connector: 40 Pin Quadlock VW
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM antenna Fakra(m)(Set) > DIN(m)
blue: +12V antenna remote
activate and configure the rear view camera input in the retrofit HU
connection i-dapter:
purple/white: +12V reverse gear signal
RCA(m) ochre: rear view camera input retrofit HU
visualisation i-adapter settings > retrofit HU rear view camera input
visualisation OPS > retrofit HU rear view camera input
visualisation Klinatronik > retrofit HU rear view camera input
vehicles with SWC i-dapter settings:
press and hold track up SWC buttom
alternatively with item: 43x-remote
vehicles without SWC i-dapter settings required accessories:
i-dapter accessories remote control > interface settings: item: 43x-remote
vehicles with white OEM MFD instrument cluster
vehicles with / without OEM amplified system
vehicles without Amundsen / Columbus OEM Sat Nav
HU installation:
HU with 2-DIN body > without pocket
HU with 1-DIN body modular and monitor > with pocket
vehicles with parking assistance front PDC > front PDC is shown after ignition in display
exit the display > via vehicle PDC switch
+12V reverse gear signal is switched off from 3 km/h
camera image or i-dapter settings and visualisation not available:
connect additional GND signal to the RCA outer conductor of the camera and HU connection
dip switch settings for the retrofit device manufacturer (look into the manual)
Vehicle application:
Skoda Octavia (1Z) 01/2009 - 03/2013
Skoda Yeti (5L) 08/2009 - 10/2013
Colour: black
Following signals are provided:
Reimported vehicles or vehicles with different software may be incompatible in functions.
red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal
load capacity outputs: 250 mA max.
current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.
SWC
visualisation climate control
visualisation OPS
OEM amplified system settings
