Varenr.: 611320-30-4
På lager hos vores leverandør
vehicles with SWC
CAN Bus

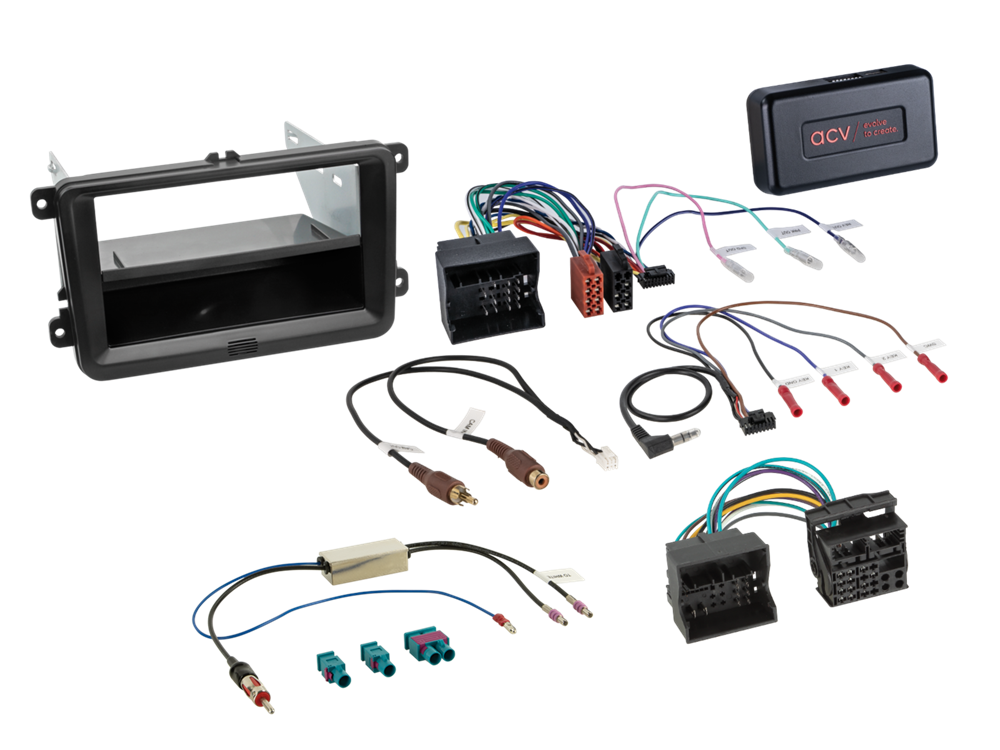

connector: 40 Pin Quadlock VAG
connector: 52 Pin Quadlock VAG > 40 Pin Quadlock VAG
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM antenna Fakra(m)(Set) > DIN(m)
blue: +12V antenna remote
activate and configure the rear view camera input in the retrofit HU
connection i-dapter:
purple/white: +12V reverse gear signal
RCA(m) ochre: rear view camera input retrofit HU
visualisation i-adapter settings > retrofit HU rear view camera input
visualisation OPS > retrofit HU rear view camera input
visualisation Klinatronik > retrofit HU rear view camera input
camera image or i-dapter settings and visualisation not available:
connect additional GND signal to the RCA outer conductor of the camera and HU connection
vehicles with SWC i-dapter settings:
press and hold track up SWC buttom
alternatively with item: 43x-remote
vehicles without SWC i-dapter settings required accessories:
i-dapter accessories remote control > interface settings: item: 43x-remote
vehicles with parking assistance front PDC > front PDC is shown after ignition in display
exit the display > via vehicle PDC switch
+12V reverse gear signal is switched off from 3 km/h
dip switch settings for the retrofit device manufacturer (look into the manual)
vehicles with 40 Pin Quadlock:
vehicles with white OEM MFD instrument cluster
vehicles with / without OEM amplified system
vehicles VW Caravelle / VW Multivan / VW T5 with OEM amplified system: Active system adapter VW T5/Touareg Quadlock MQS-housing > item: 13-1424-26
vehicles with rear view camera:
Rear View Camera Interface Seat/Skoda/VW OEM HIGH > item: 771324-1032
Rear View Camera Interface Seat/Skoda/VW OEM LOW > item: 771324-1036
vehicles Skoda:
with Audience / Stream OEM HU
with Amundson / Columbus OEM Sat Nav
without Technisat OEM HU
vehicles VW
vehicles with RCD310 / RCD500 / RCD510 OEM HU
vehicles with RNS315 / RNS510 OEM Sat Nav
vehicles without RCD320 OEM HU with ISO connector
52 Pin Quadlock:
vehicles with MIB-PQ system
check OEM antenna supply voltage with OEM device before installation:
vehicles with +12V supply voltage OEM antenna
vehicles with 8.5V supply voltage OEM antenna:
Antenna adapter Fakra(m)(double)>DIN(m) 8.5V > item: 1524-29
vehicles without amplified system
vehicles VW Beetle with Composition Media Dynaudio OEM amplified system supported
vehicles VW Beetle with Fender OEM amplified system not supported
depending on the vehicle equipment and software:
not all vehicle settings are supported
not all vehicle functions are supported
not all vehicle information is visualised
E-Call not supported
vehicles with E-Call:
E-Call function retention MAN/Seat/Skoda/VW 52 Pin Quadlock > item: 1424-02
Not for vehicles:
with OEM Most amplified system
with open dash
without any OEM preparation > SWC / speakers / HU
Facia plate:
vehicles Skoda:
Skoda OEM HU cover required*/**/***/****
1-DIN modular monitor HU > installation with pocket
2-DIN HU> installation without pocket
2-DIN mounting cutout HU display: 172mm x 98,5mm
Vehicle application:
Skoda
Skoda Octavia (1Z) 01/2009 - 03/2013*
Skoda Rapid (NH) 10/2012 - 04/2015**
Skoda Rapid (NH) 04/2015 - 05/2017**
Skoda Rapid (NH) 05/2017 - 02/2019**
Skoda Roomster (5J) 06/2010 - 02/2015
Skoda Superb (3T) 07/2008 - 05/2013***
Skoda Superb (3T) 06/2013 - 05/2015***
Skoda Yeti (5L) 08/2009 - 10/2013****
Skoda Yeti (5L) 10/2013 - 07/2017****
VW
VW Caddy IV (DU) 06/2015 - 09/2020
VW Caravelle (7H) 09/2009 - 05/2015
VW CC (3C/35) 02/2012 - 08/2016
VW EOS (1F) 10/2010 - 04/2015
VW Golf VI (1K) 11/2008 - 09/2012
VW Golf VI (1KM) 11/2009 - 04/2013
VW Golf VI Plus (1KP) 03/2009 - 01/2014
VW Multivan (7H) 09/2009 - 05/2015
VW Passat B7 (3C/362) 11/2010 - 10/2014
VW Polo V (6R) 06/2009 - 01/2014
VW Scirocco III (13) 08/2008 - 04/2014
VW Sharan II (7N) 08/2010 - 04/2015
VW Sharan II (7N) 07/2015 - 10/2021
VW Tiguan I (5N) 06/2011 - 04/2016
VW Touran I (1T) 08/2010 - 04/2015
VW T5 Transporter (7H) 09/2009 - 05/2015
VW T6 (7HC) 07/2015 - 08/2019*****
Colour: black
Following signals are provided:
Reimported vehicles or vehicles with different software may be incompatible in functions.
red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal
load capacity outputs: 250 mA max.
current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.
SWC
visualisation climate control
visualisation OPS
OEM amplified system settings
*vehicles with Bolero / Swing OEM HU > Skoda OEM Sat Nav HU cover item number: depending on equipment
**Skoda OEM HU cover > Skoda OEM item number: 5JA858 415 9B9
***vehicles with Amundsen / Columbus OEM Sat Nav
***vehicles with Bolero / Swing OEM HU > Skoda OEM Sat Nav HU cover item number: 3TO8580691QB
****Skoda OEM HU cover > Skoda OEM item number: 5L0858069L1 QB
***** OEM HU cover must be customised in the middle
