ACV KOMPLET MONT. KIT DUCATO, BOXER, JUMPER FACELIFT MODELLER 2014 >

Varenr.: 621094-35-4

PRIS ER PR. Sæt

Pris ved køb af 1 Sæt,0,00 DKK

Bygges først ved bestilling. Op til 1 måneds levering.
Beløbet hæves som forudbetaling og kan ikke returneres.
14 dages retur ret frasiges derfor også.

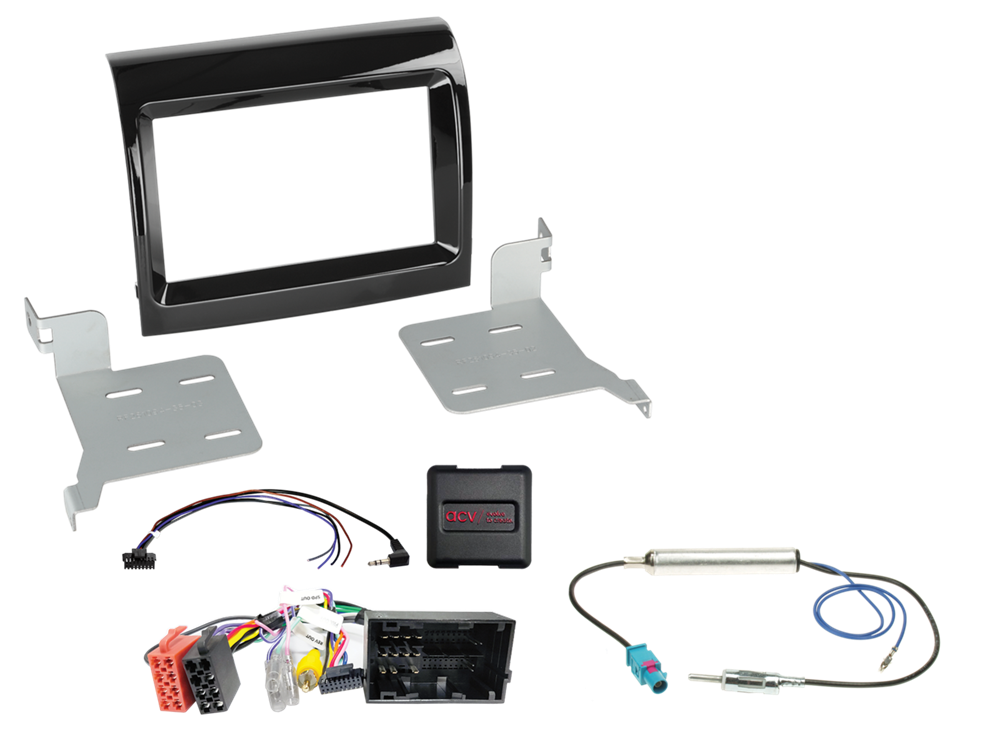

Pakken indeholder

1 stk.

Indlæser.. 1 stk.

Indlæser..

CAN Bus

connector: 52 Pin Fiat
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM antenna Fakra(f) > DiN(m)
connector: OEM rear view camera > RCA(m) yellow rear viev camera input

blue: +12V antenna remote

vehicles with Continental 250VP1 / 250VP2 OEM HU
vehicles with UConnect OEM HU
vehicles with Daiichi OEM HU*

SWC buttons:
2 x 4 SWC control functions steering wheel front

vehicles with error display trip meter after installation > dip switch position:
adjust dip switch position voltage-free

dip switch 1 on / dip switch 2 off / cut or loop white wire
dip switch 1 off / dip switch 2 on / cut or loop white wire

dip switch 6 on > 250VP1 OEM HU
dip switch 5 on > 250VP2 OEM HU
cut white loop > Blue&Me OEM function

dip switch 1 off / dip switch 2 off / cut white loop > Daiichi OEM Gerät

after changeover CAN Bus must shut down

vehicles with persistent error display and other software package not compatible

vehicle settings not supported**
high beam assistance not supported
driver assistance systems not supported
date/time adjustment not supported**

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Citroen
Citroen Jumper (250) 05/2014 - 10/2022
Citroen Jumper (250) 10/2022 - 2025
Citroen e-Jumper (259 10/2021 - 2025
Citroen Relay (250) 2006- 2025

Fiat
Fiat Ducato (ZAF 250) 05/2014 -11/2021

Opel
Opel Movano Cargo C (Y) 10/2021 - 01/2024
Opel Movano Cargo C (Y) 01/2024 - 2025
Opel Movano Electric Cargo C (Y) 10/2021 - 01/2024
Opel Movano Electric Cargo C (Y) 01/2024 - 2025

Peugeot
Peugeot Boxer (Y) 09/2014 - 12/2019
Peugeot Boxer (Y) 08/2018 - 2025
Peugeot e-Boxer (Y) 10/2021 - 2025

Colour: piano black

Einbauausschnitt Radiodisplay: 172mm x 98,5mm

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC
