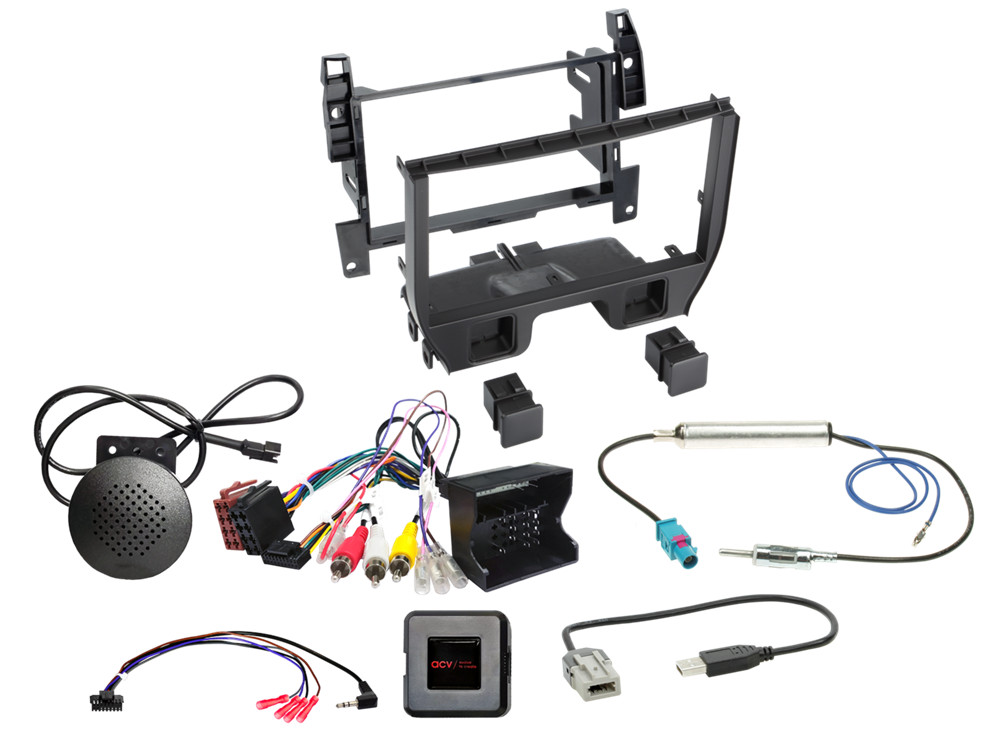

ACV KOMPLET MONT. KIT C3, DS3 2009 > 2016 MED BAKALARM

CAN Bus

connector: 40 Pin Quadlock Citroen / Peugeot
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM antenna Fakra(m) > DIN(m)
connector: OEM AUX > RCA(m) red / white
connector: OEM rear view camera > RCA(m) yellow
connector OEM USB > USB A

blue: +12V antenna remote

vehicles with Blaupunkt / Continental / Siemens VDO RD4 OEM HU with volume control knob
vehicles with PDC rear

vehicles without Continental RD45 OEM HU with volume control knob*/**
vehicles without Magneti Marelli RT3 / Harman Becker OEM Sat Nav with volume control knob
vehicles without JBL OEM amplified system

vehicles without OEM rear speakers:
PDC chimes to rear speaker output
change connection front/rear speaker of the ISO plug

vehicles with PDC switch:
PDC chimes funktion must be activated

vehicles with ECO-mode:
+12V continuous current clamp 30 batterie fused

vehicle settings supported (look into the manual)

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Citroen C3 (S) 01/2010 - 03/2013
Citroen C3 (S) 04/2013 - 01/2017
Citroën DS3 (S) 03/2010 - 07/2014

Colour: black

Mounting cutout HU display: 171mm x 99mm

The following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC

PDC rear supported
vehicle settings supported
