ACV KOMPLET MONT. KIT AUDI TT 2006 > 2014

Varenr.: 621320-19-1
  • PRIS ER PR. Sæt
    Pris ved køb af 1 Sæt,0,00  DKK
På lager hos vores leverandør

Download manual

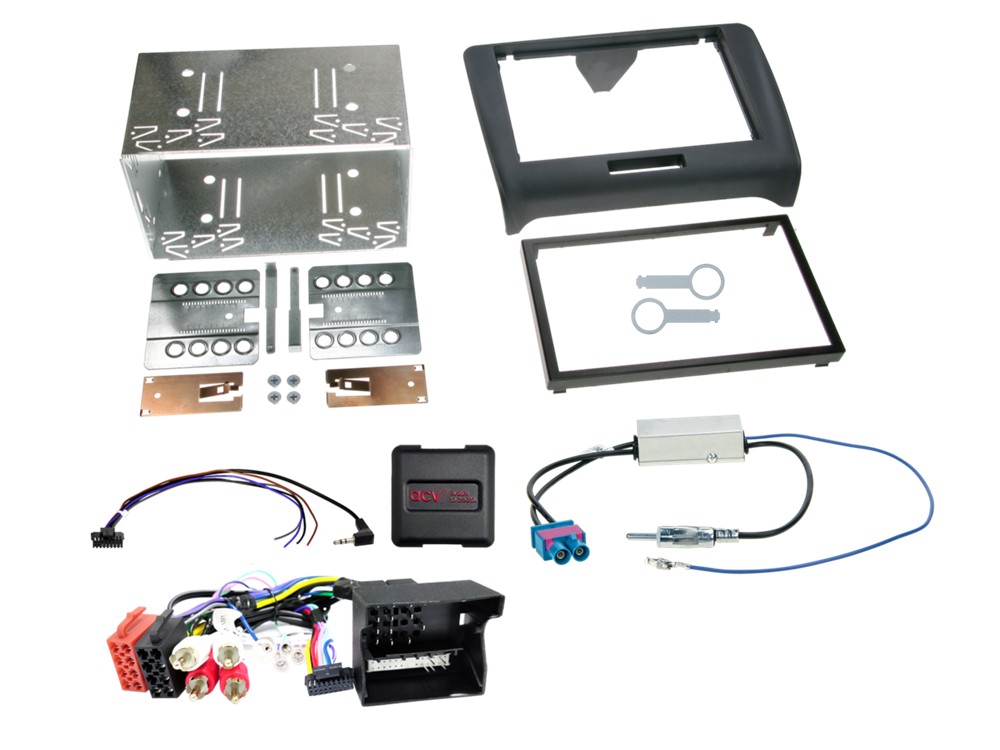

Audi TT Installation Kit. Supplied With Single and Double Din Fascia Kit, CAN-Bus Steering Wheel Control Interface (Quadlock And ISO Loom), FAKRA Antenna Adapter, Audi Release Keys & Universal Patchlead.
Note:

CAN Bus

connector: 40 Pin Quadlock VAG
connector: OEM SWC > 3,5mm Jack / loose wire
connector: 2 channel / 4 channel OEM amplified system > RCA(m) front/rear
connector: OEM antenna Fakra(m)(double) > DIN(m)

blue: +12V antenna remote
blue: +12V amplified system remote

Facia plate with 2-ISO installation kit

vehicles with Blaupunkt / Matsushita / Grundig Chorus II / Concert II / Symphony II 2-DIN OEM HU
vehicles with RNS-E 16:9 OEM Nav Sat

vehicles without BNS 5.0 monochrome OEM Sat Nav*

retrofit HU with pre amp output more than 3V

retrofit HU with pre amp output less than 3V:
retrofit HU with pre amp output less/more than 3V:
SWC Audi A3/A4/A6/R8/TT 40Pin Quadlock Amp 2/4 channel > item: 42xad006

vehicles 08/2010 - 04/2014 with non-functioning OEM sound system:
amplified system coding from CAN Bus activation to remote activation required if possible
Address J525 > activation 1 remote (0xxx?xx)

vehicles with amplifier switch-off noise test additionally:
Noise filter NF GND decouple RCA > item: 30.5000-01

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Audi TT (8J) 09/2006 - 04/2010
Audi TT (8J) 08/2010 - 04/2014

Colour: black

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal
