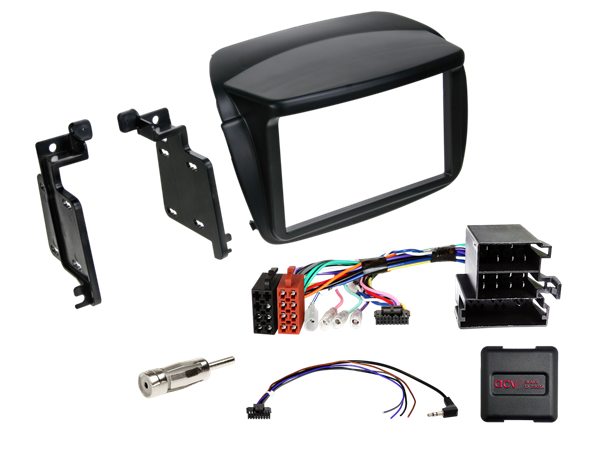

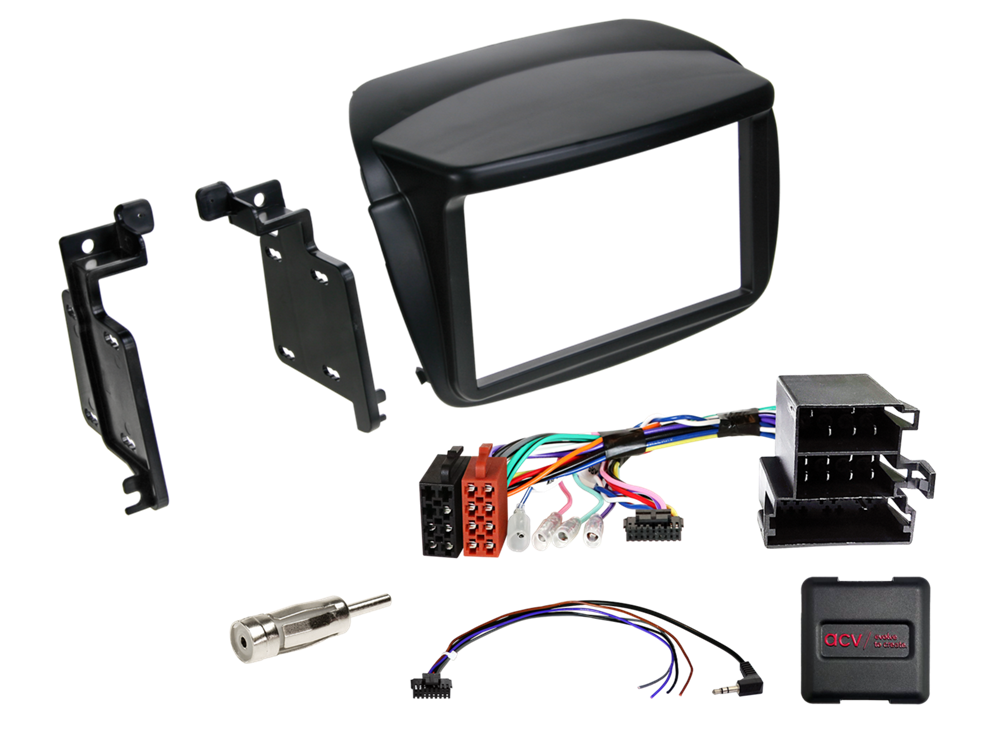

Varenr.: 621094-26-1
Bygges først ved bestilling. Op til 1 måneds levering.
Beløbet hæves som forudbetaling og kan ikke returneres.
14 dages retur ret frasiges derfor også.
CAN Bus
connector: ISO / Mini ISO
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM antenna ISO(m) > DIN(m)
blue: +12V Amp remote*
installation not retrofittable (look into the manual)
vehicles with Blaupunkt / Delphi / VDO OEM HU
vehicles with CAN Bus in ISO Power connector
vehicles with Blue&Me > module must remain installed
dip switch settings for the retrofit device manufacturer (look into the manual)
Vehicle application:
Fiat
Fiat Doblo (ZAF 263) 02/2010 - 01/2015
Opel
Opel Combo D (Combo D) 01/2012 - 08/2018
Colour: black
Mounting cutout HU display: mm x mm
The following signals are provided:
Reimported vehicles or vehicles with different software may be incompatible in functions.
red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal
