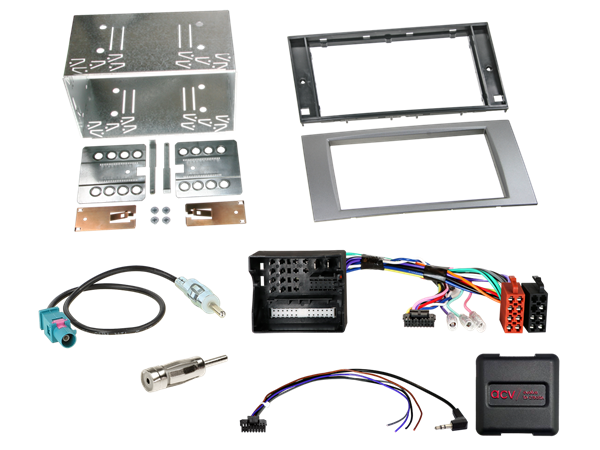

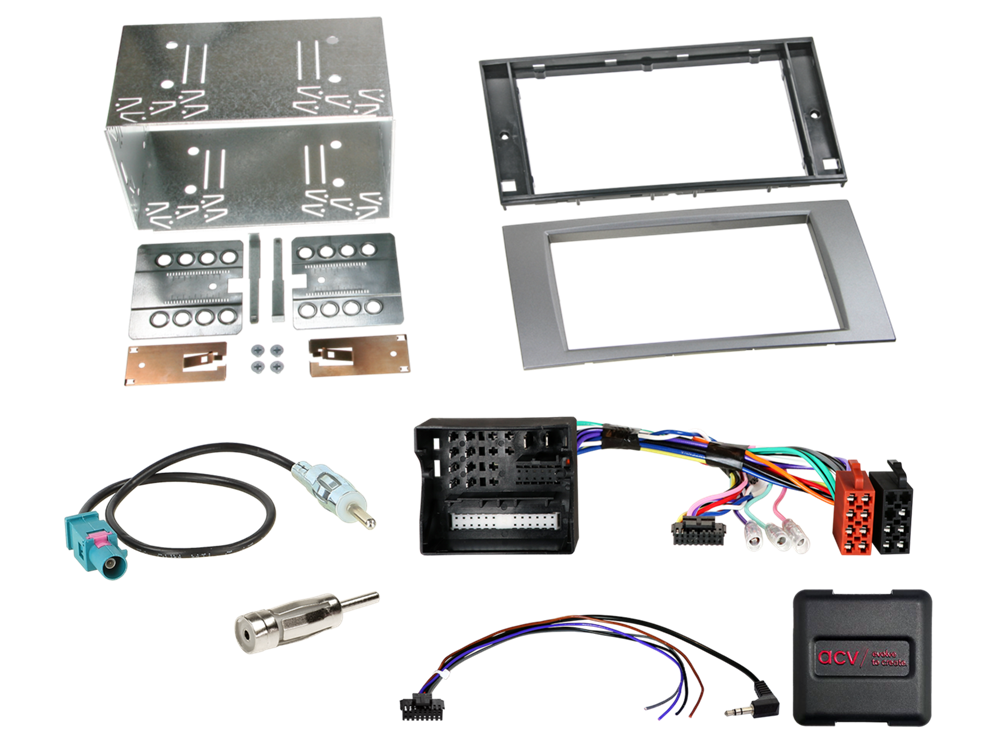

ACV KOMPLET MONT. KIT FORD DIV 2005 > 2015 MED REKTANGULÆR RADIO, SØLV

CAN Bus
analog SWC

connector: 40 Pin Quadlock Ford
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM antenna ISO(m) > DIN(m)
connector: OEM antenna Fakra(m) > DIN(m)

vehicles with 5000C / 6000CD / 6006CD / Sony OEM HU
vehicles with Audio Systems OEM Sat Nav with card slot front

vehicles without Pin 16 +12V ignition clamp 15

power connector A:
Pin 16 +12V ignition clamp 15 not assigned
Pin 9 CAN-High blue/white (colours may vary)
Pin 10 CAN-Low purple (colours may vary)
MQS connector B:
Pin 6 grey/yellow SWC analog (colours may vary)
Pin 8 blue SWC analog GND (colours may vary)
Pin 11 +12V reverse gear signal (if assigned)
Pin 12 speed pulse signal (if assigned))

vehicles without 7" OEM colour display Sat Nav with integrated cilimatronic
vehicles without CAN Bus supported PDC*

OEM HU design changes from rectangular to oval in the ongoing series

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Ford C-Max (DM2) 11/2003 - 05/2007
Ford Fiesta (JH1/JD3) 10/2005 - 09/2008
Ford Focus (DA3) 11/2004 - 11/2010
Ford Galaxy II (WA6) 03/2006 - 04/2010
Ford Kuga (DM2) 06/2008 - 12/2012*
Ford S-Max (WA6) 06/2006 - 04/2010*
Ford Transit (F6) 07/2006 - 03/2014
Ford Transit Connect (PH2) 06/2006 - 07/2013

Colour: silver

OEM HU design changes from rectangular to oval in the ongoing series

Mounting cutout HU display: 172mm x 98,5mm

Optional:

Facia pocket for 2-DIN facia plates 2 parted > item: 271000-06

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.
SWC

*vehicles with PDC > check funktion without OEM HU
*vehicles without PDC funktion > item: 42xfo011
