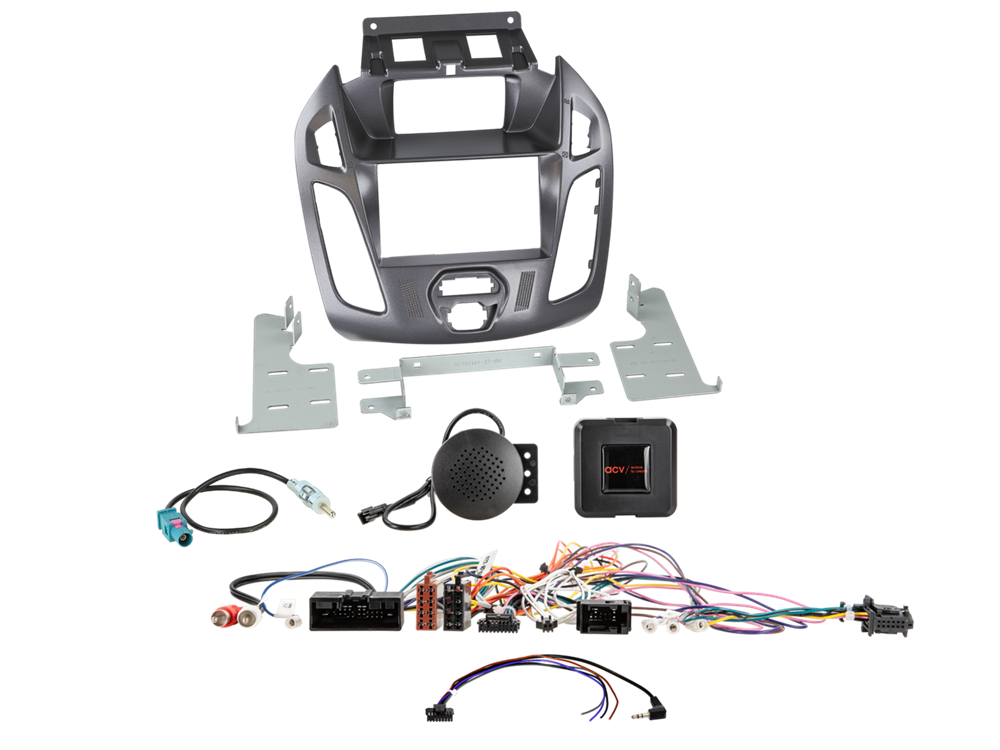

ACV KOMPLET MONT. KIT FORD TRANSIT-CONNECT 2013 > MED TOP-DISPLAY NEBULA ANTRAZIT

CAN Bus

connector: 24 Pin Ford
connector: OEM SWC > 3,5mm Jack / loose wires
connector: OEM antenna Fakra(m) > DIN(m)
connector: AMP monitor connector > OEM monitor
connector: OEM monitor connector > interface
connector: OEM AUX > RCA(m) red/white

vehicles vehicles with Euro5 emissin standard
vehicles with steering wheel OK and/or speech button
vehicles with OEM display*
vehicles with CD player under the display
vehicles with SYNC > SYNC function not supported
vehicles with OEM navigation > interface functions partly not compatible

vehicles without OEM 7" touch screen monitor

deactivate SYNC functions and BT before installation:
SYNC function emergency call is deactivated with BT function

avoid malfunction of display vehicle settings:
switch off retrofit HU
press the voice dial button for a maximum of 2 seconds to enter the settings
make settings only as described in the manual

in case of malfunction in setting mode:
set again after CAN Bus shut down

dip switch settings for the retrofit device manufacturer (look into the manual)

Dippschaltereinstellungen für den Nachrüstgerätehersteller (siehe BDA)

Vehicle application:

Ford Transit Custom (FAC/FDA) 08/2012 - 06/2016
Ford Transit Tourneo Custom (FAC/FAD) 08/2012 - 06/2016

Colour: NEBULA ANTRAZIT

Mounting cutout HU display: 172mm x 98,5mm

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

SWC

PDC chimes rear supported
chimes supported
vehicle settings supported

*vehicles with smal display and 2 setting buttons right: date settings not supported
