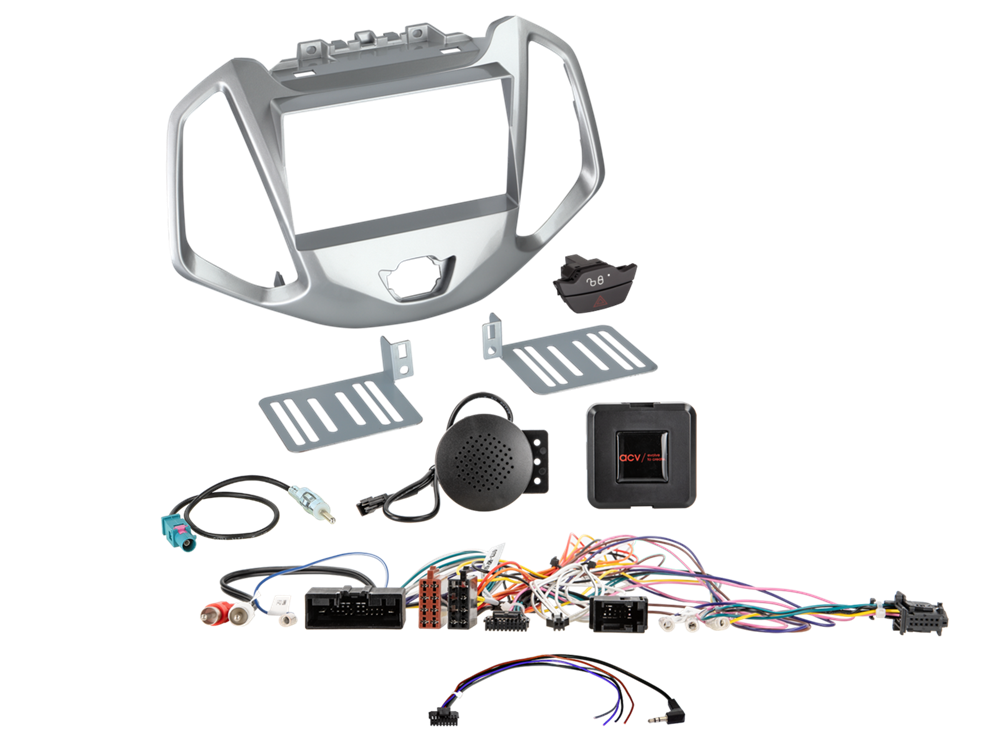

ACV KOMPLET MONT. KIT FORD ECOSPORT 2013 >

Note:

CAN Bus

connector: 24 Pin Ford
connector: OEM SWC > 3,5mm Jack / loose wires
connector: OEM antenna Fakra(m) > DIN(m)
connector: AMP monitor connector > OEM monitor
connector: OEM monitor connector > interface
connector: OEM AUX > RCA(m) red/white

installation not retrofittable

adjustment work in the radio shaft at the top with workshop tols necessary
adjustment work of the vents with workshop tols necessary

vehicles vehicles with Euro5 emissin standard
vehicles with steering wheel OK and/or speech button
vehicles with OEM display*
vehicles with CD player under the display
vehicles with SYNC > SYNC function not supported
vehicles with OEM navigation > interface functions partly not compatible

vehicles without OEM 7" touch screen monitor

deactivate SYNC functions and BT before installation:
SYNC function emergency call is deactivated with BT function

avoid malfunction of display vehicle settings:
switch off retrofit HU
press the voice dial button for a maximum of 2 seconds to enter the settings
make settings only as described in the manual

in case of malfunction in setting mode:
set again after CAN Bus shut down

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Ford EcoSport (JK8) 02/2014 - 10/2017

Colour: silver

Mounting cutout HU display: 178mm x 101mm

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal
