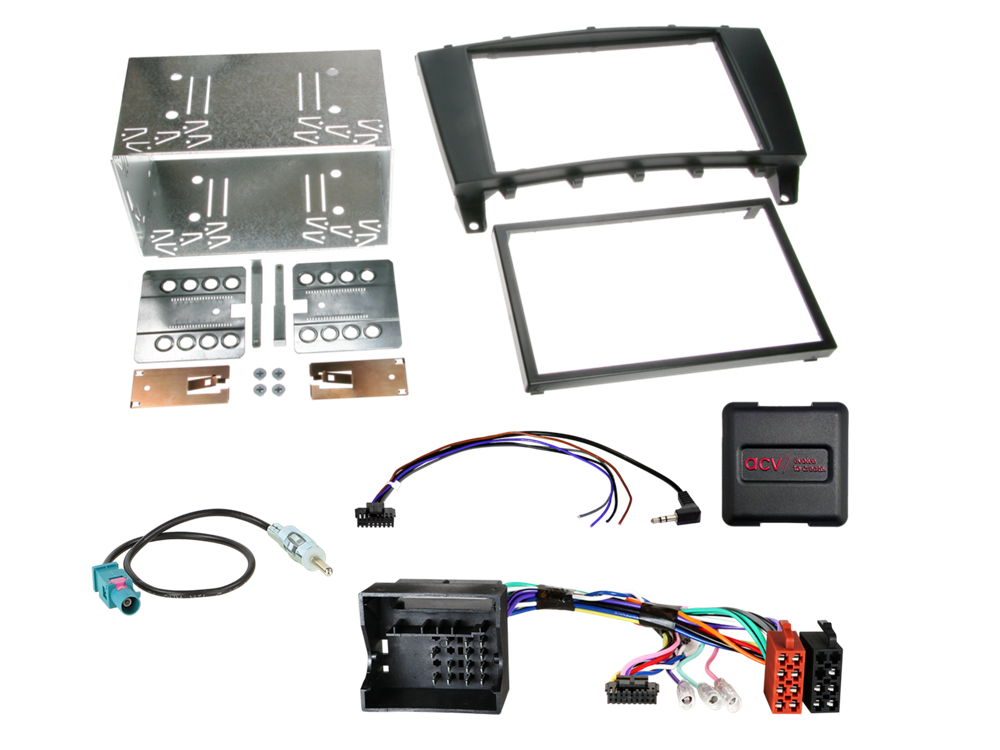

ACV KOMPLET MONT. KIT MERCEDES W203 2004 > 2007 UDEN FORSTÆRKER (STANDART)

Varenr.: 621190-16-1

PRIS ER PR. Sæt

Pris ved køb af 1 Sæt,0,00 DKK

På lager hos vores leverandør

Pakken indeholder

1 stk.

Indlæser.. 1 stk.

Indlæser..

Note:

CAN Bus

connector: 40 Pin Quadlock Mercedes
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM antenna Fakra(m) > DIN(m)

facia plate with 2-ISO installation kit

HU assembly without sheet metal basket ohne HU trim frame

vehicles with 2-DIN Audio 20 OEM HU
vehicles with 2-DIN Audio 50 APS Comand NTG2 / NTG2.5 OEM Sat Nav

vehicles Mercedes without open dash
vehicles Mercedes without 1-DIN OEM HU

vehicles with Audio 50 APS Comand NTG2 / NTG2.5 OEM Sat Nav:
clock adjustment not supported > vehicles code to Audio 20 OEM HU if possible

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Mercedes C-class (CL203/S203/W203) 02/2004 - 09/2007
Mercedes CLC-class (CL203) 06/2008 - 02/2011
Mercedes G-class (W164) 09/2008 - 06/2012

Colour: black

Mounting cutout HU display: 172mm x 98,5mm

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal
