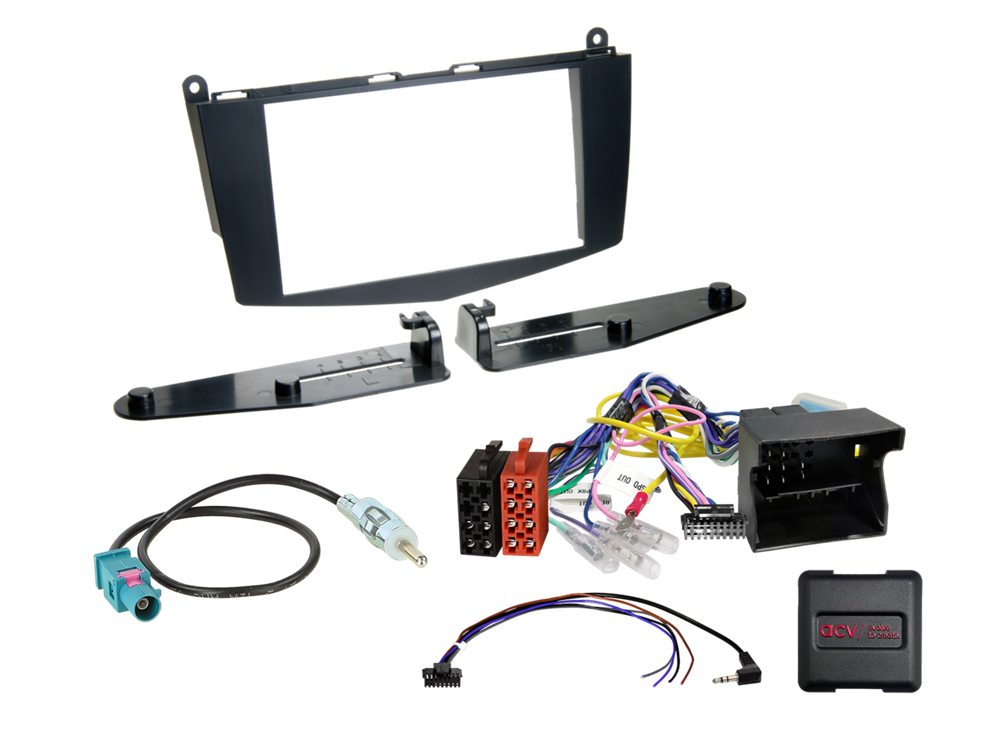

ACV KOMPLET MONT. KIT MERCEDES W204 2007 > 2011 UDEN FORSTÆRKER (STANDART)

Note:

CAN Bus

connector: 40 Pin Quadlock MB2 Mercedes
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM antenna Fakra(m) > DIN(m)

blue: +12V antenna remote

vehicles without vehicle function buttons under the OEM HU
vehicles without OEM amplified system

OEM monitor not supported

2-DIN HU L-Body at the top compatible

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Mercedes C-Klasse sedan (W204) 03/2007 - 01/2011
Mercedes C-Klasse T-modell (S204) 09/2007 - 01/2011

Colour: black

Mounting cutout HU display: 172mm x 99mm

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal
