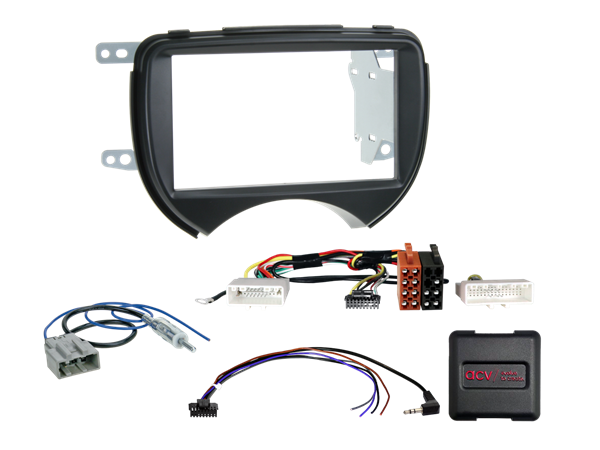

ACV KOMPLET MONT. KIT NISSAN MICRA 2010 > 2013 SORT

Note:

analog

connector: 20 Pin Nissan
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM antenna GT13(m) > DIN(m)
connector: 32 Pin telephone module

blue: +12V antenna remote

black: GND clamp 31

HU assembly without sheet metal basket without HU trim frame

vehicles with Blaupunkt / Bosch / Clarion OEM HU
vehicles with OEM amplified system*
vehicles with external OEM telefone modul**

vehicles without OEM amplified systems
vehicles without OEM Sat Nav

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Nissan Micra (K13) 03/2011 - 07/2013

Colour: black

2-DIN mounting cutout HU display: 172mm x 98,5mm

Optional:

Facia pocket for 2-DIN facia plates screw fixing > item: 271000-10

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

SWC

*+12V Amp remote Pin 2 next to +12V continious current > check with OEM HU by measuring
**telefon modul location: connector: BT-OEM Modul / cover pannel passenger side cargo trunk /behind/above glove box /center console / unter front seats
