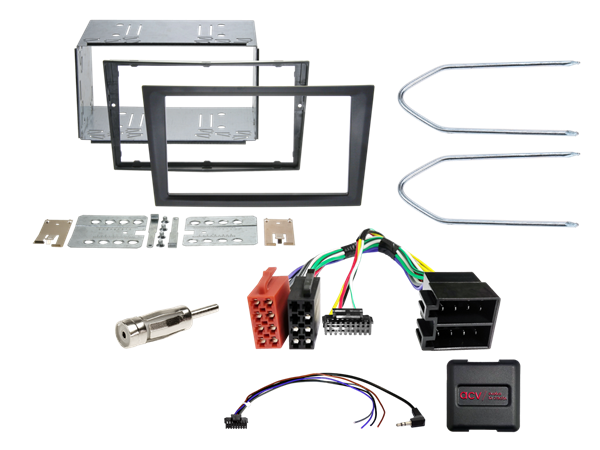

ACV KOMPLET MONT. KIT OPEL DIV. 1999 > 2007 SORT

Note:

analog

connector: 2 x 8 pin iso
connector: OEM SWC > 3,5mm Jack / loose wires
connector: OEM antenna ISO(f) > DIN(m)

facia plate with 2-ISO installation kit

vehicles with SWC connection power connector A Pin 2

vehicles with Delco / Delphi / Grundig / Philips 1-DIN OEM HU
vehicles with CCR2006 / CAR2003 / CAR2004 / CDR2005 OEM HU

vehicle settings not supported

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Opel Agila A (H00) 08/2000 - 06/2003
Opel Agila A (H00) 06/2003 - 10/2007
Opel Agila (H-B) 04/2008 - 12/2014
Opel Combo (C) 10/2001 - 09/2011
Opel Corsa C (X01) 10/2000 - 07/2003
Opel Corsa C (X01) 07/2003 - 10/2006
Opel Meriva A (X01) 02/2003 - 11/2005
Opel Meriva A (X01) 11/2005 - 03/2010
Opel Omega B (V94) 08/1999 - 11/2003
Opel Signum (Z03) 01/2003 - 08/2005
Opel Signum (Z03) 09/2005 - 08/2008
Opel Tigra Twin Top (X-C) 07/2004 - 11/2009
Opel Vectra C (Z02) 01/2002 - 08/2005
Opel Vectra C (Z02) 09/2005 - 09/2008

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

SWC

Colour: Black

Mounting cutout HU display: 172mm x 98,5mm

Optional:

Facia pocket for 2-DIN facia plates 2 parted > item: 271000-06

Cockpit colour in the following vehicles and equipment:

Opel Agila A (H00) 08/2000 - 06/2003
Opel Agila A (H00) 06/2003 - 10/2007
(Agila - Cosmo - Edition)

Opel Combo (C) 10/2001 - 09/2011
(Combo - Tour)

Opel Corsa C (X01) 10/2000 - 07/2003
Opel Corsa C (X01) 07/2003 - 10/2006
(Corsa - Comfort - Cool - Eco - Elegance - Enjoy - Fresh - Njoy - Van)

Opel Omega B (V94) 08/1999 - 11/2003
(Omega - Club - Design Edition - Edition - Edition 2000 - Elegance - Executive - Executive Edition - Selection - Sport)

Opel Vivaro A (X83) 09/2006 - 01/2011
(Vivaro - Life Cosmo -Life Edition - Tour - Tour Cosmo)

Colour: black
