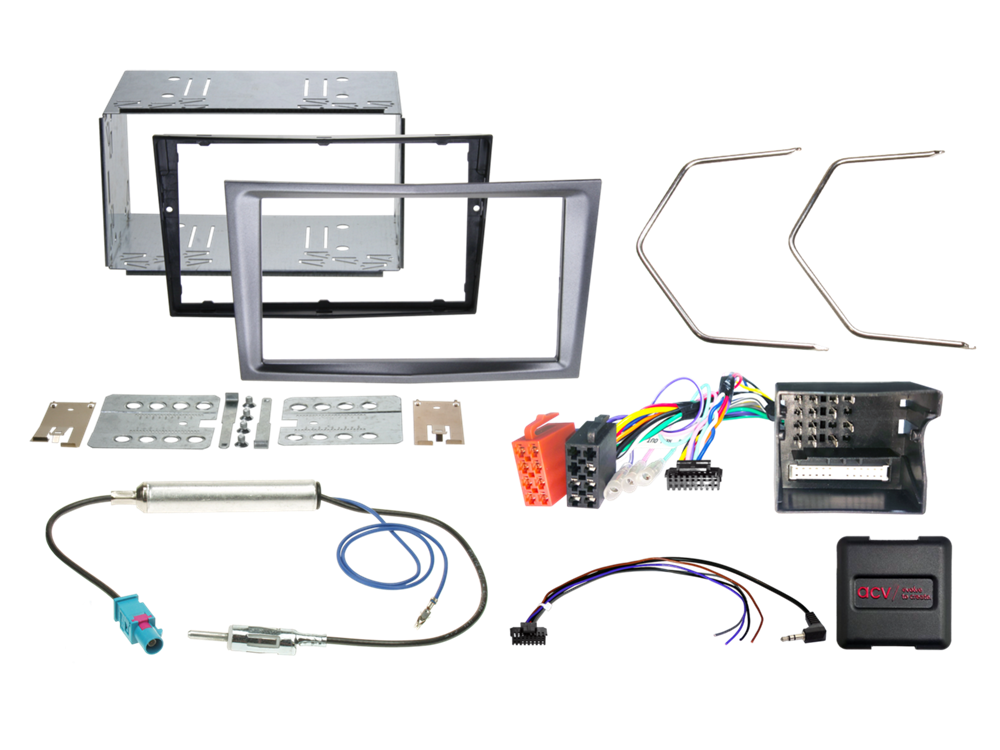

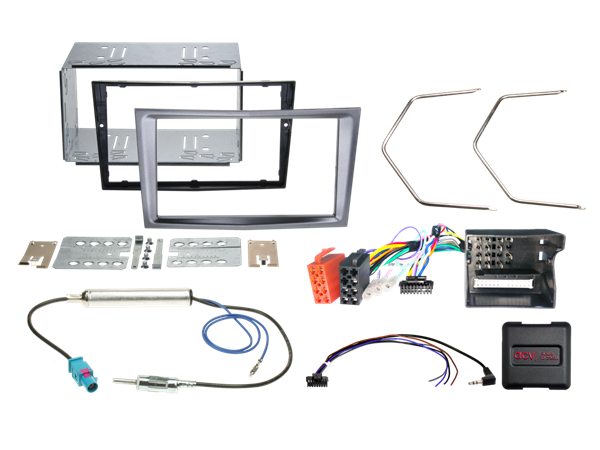

ACV KOMPLET MONT. KIT OPEL DIV. 2004 > 2014 MØRKE GRÅ METALLIC

analog

connector: 40 Pin Quadlock Opel
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM antenna Fakra(m) > DIN(m)

blue: +12V antenna remote

facia plate with 2-ISO installation kit

vehicles with Blaupunkt / Delphi / Siemens VDO OEM HU
vehicles with CD30 / CD30MP / CDC40 / CD50 / CD70 / DVD 90 OEM HU

vehicle settings supported

Vehicle application:

Opel Agila (H-B) 04/2008 - 12/2014
Opel Combo (C) 10/2004 - 09/2011
Opel Meriva A (X01) 11/2005 - 03/2010
Opel Signum (Z03) 09/2005 - 08/2008
Opel Tigra Twin Top (X-C) 07/2004 - 11/2009
Opel Vectra C (Z02) 09/2005 - 09/2008
Opel Vivaro A (X83) 09/2006 - 01/2011*
Opel Zafira B (A-H) 07/2005 - 06/2010
Opel Zafira B (A-H) 02/2008 - 12/2014

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC

vehicle settings supported

*vehicles with trapezoid OEM HU

Colour: charcoal-metallic

Mounting cutout HU display: 172mm x 98,5mm

Optional:

Facia pocket for 2-DIN facia plates 2 parted > item: 271000-06

Cockpit colour in the following vehicles and equipment:

Opel Antara (L-A) 11/2006 - 11/2010
(Cosmo - Design-Edition - Edition - Selection)

Opel Astra H (A-H) 03/2004 - 02/2007
Opel Astra H (A-H) 02/2007 - 11/2010
(Cosmo - Edition - Edition Plus - Elegance - Enjoy - Essentia - GTC - GTC-Cosmo - GTC-Edition)

Opel Zafira B (A-H) 07/2005 - 06/2010
Opel Zafira B (A-H) 02/2008 - 12/2014
(CATCH ME - CATCH ME Now - Cosmo - Edition - OPC)

Colour: charcoal-metallic
