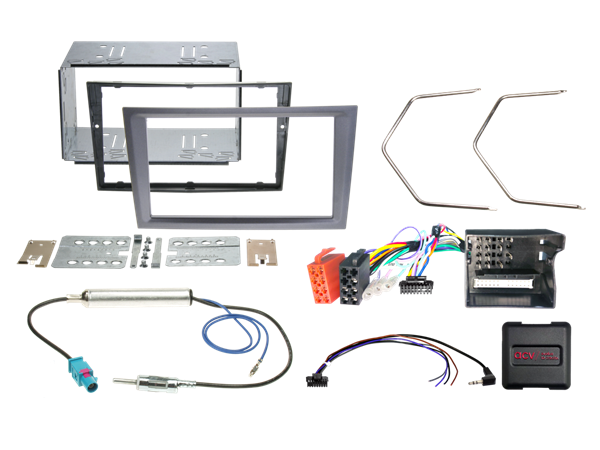

ACV KOMPLET MONT. KIT OPEL DIV. 2004 > 2014 MØRKE GRÅ

Varenr.: 621230-26-2

PRIS ER PR. Sæt

Pris ved køb af 1 Sæt,0,00 DKK

Bygges først ved bestilling. Op til 1 måneds levering.
Beløbet hæves som forudbetaling og kan ikke returneres.
14 dages retur ret frasiges derfor også.

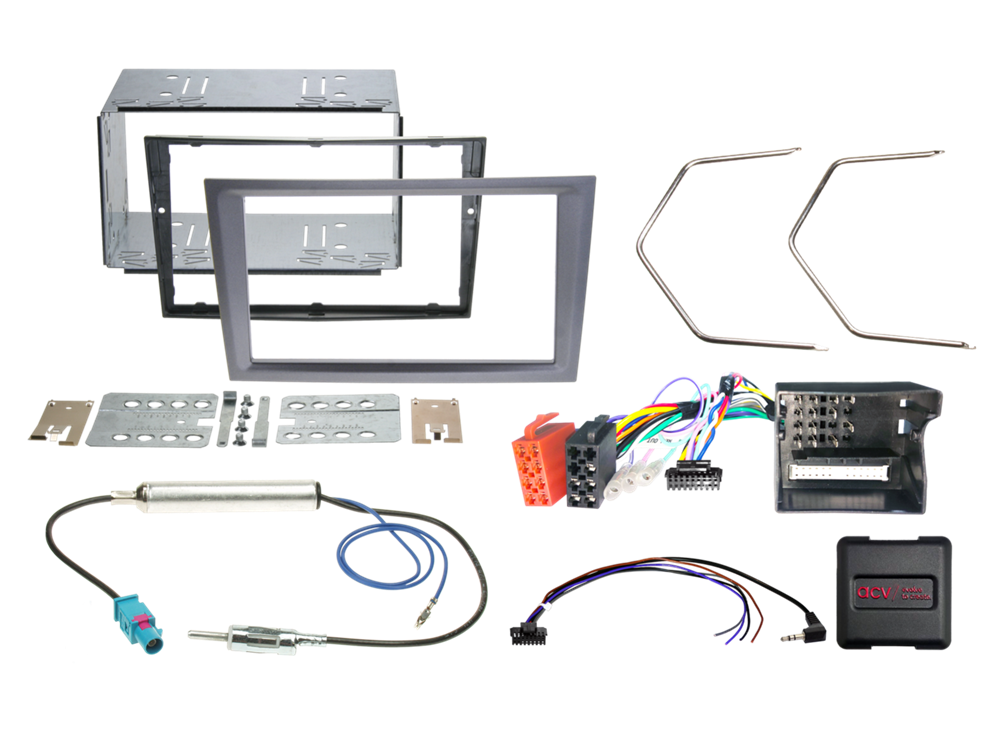

Pakken indeholder

1 stk.

Indlæser.. 1 stk.

Indlæser..

analog

connector: 40 Pin Quadlock Opel
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM antenna Fakra(m) > DIN(m)

blue: +12V antenna remote

facia plate with 2-ISO installation kit

vehicles with Blaupunkt / Delphi / Siemens VDO OEM HU
vehicles with CD30 / CD30MP / CDC40 / CD50 / CD70 / DVD 90 OEM HU

vehicle settings supported

Vehicle application:

Opel Agila (H-B) 04/2008 - 12/2014
Opel Combo (C) 10/2004 - 09/2011
Opel Meriva A (X01) 11/2005 - 03/2010
Opel Signum (Z03) 09/2005 - 08/2008
Opel Tigra Twin Top (X-C) 07/2004 - 11/2009
Opel Vectra C (Z02) 09/2005 - 09/2008
Opel Vivaro A (X83) 09/2006 - 01/2011*
Opel Zafira B (A-H) 07/2005 - 06/2010
Opel Zafira B (A-H) 02/2008 - 12/2014

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC

vehicle settings supported

*vehicles with trapezoid OEM HU

Colour: charcoal

Mounting cutout HU display: 172mm x 98,5mm

Optional:

Facia pocket for 2-DIN facia plates 2 parted > item: 271000-06

Cockpit colour in the following vehicles and equipment:

Opel Corsa C (X01) 10/2000 - 07/2003
Opel Corsa C (X01) 07/2003 - 10/2006
(Corsa - Cool - Cosmo - Edition - Enjoy)

Opel Meriva A (X01) 02/2003 - 11/2005
Opel Meriva A (X01) 11/2005 - 03/2010
(Meriva - CATCH ME - CATCH ME Now - Edition - INNOVATION - NAVI - Selection - Selection 110 Jahre)

Opel Signum (Z03) 01/2003 - 08/2005
Opel Signum (Z03) 09/2005 - 08/2008
(Signum - Cosmo - Cosmo Plus - Edition - Edition Plus - Elegance - Sport)

Opel Tigra Twin Top (X-C) 07/2004 - 11/2009
(Twin Top - Enjoy)

Opel Vectra C (Z02) 01/2002 - 08/2005
Opel Vectra C (Z02) 09/2005 - 09/2008
(Vectra - Cosmo - Cosmo Plus - Edition - Edition Plus - Elegance - GTS - Sport)

Farbe: charcoal
