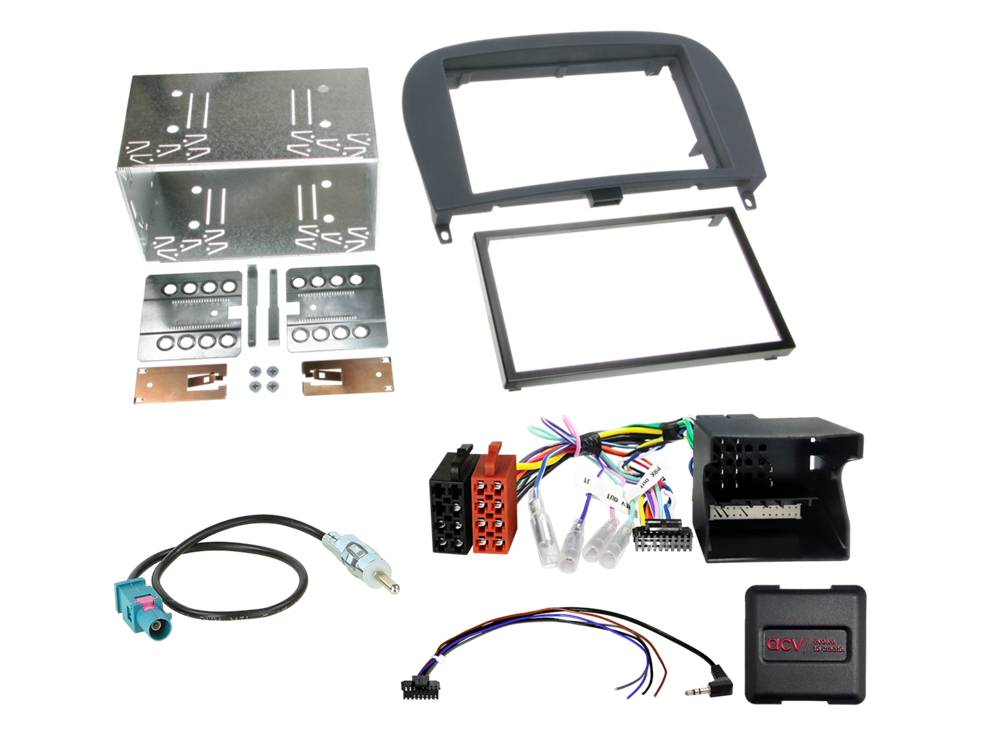

ACV KOMPLET MONT. KIT MERCEDES R230 2004 > 2014

CAN Bus

connector: 40 Pin Quadlock MB2 Mercedes
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM antenna Fakra(m) > DIN(m)

facia plate with 2-ISO installation kit

HU assembly without sheet metal basket ohne HU trim frame

vehicles with facelift
vehicles without surrounding frame around the OEM HU

vehicles with 2-DIN Audio 20 OEM HU

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Mercedes SL-class (R230) 03/2006 - 02/2008

Colour: rubberized surface black

Mounting cutout HU display: 172mm x 98,5mm

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC
