RADIOKABEL PIONEER/SONY TIL ACV CX401 OG 42a RATBETJENINGER

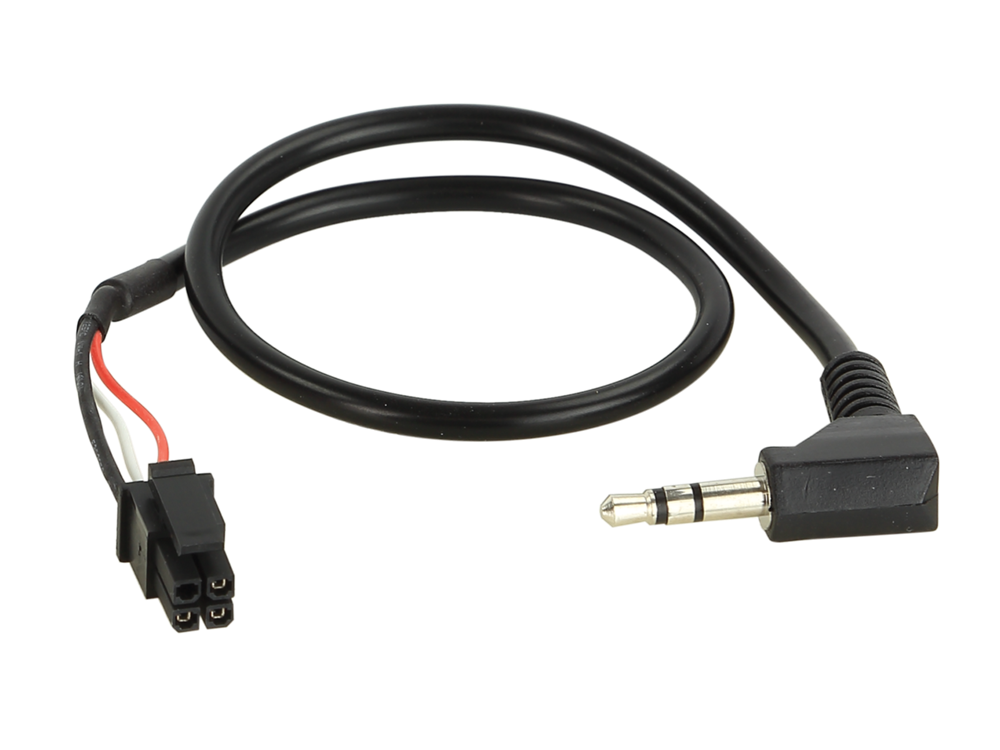

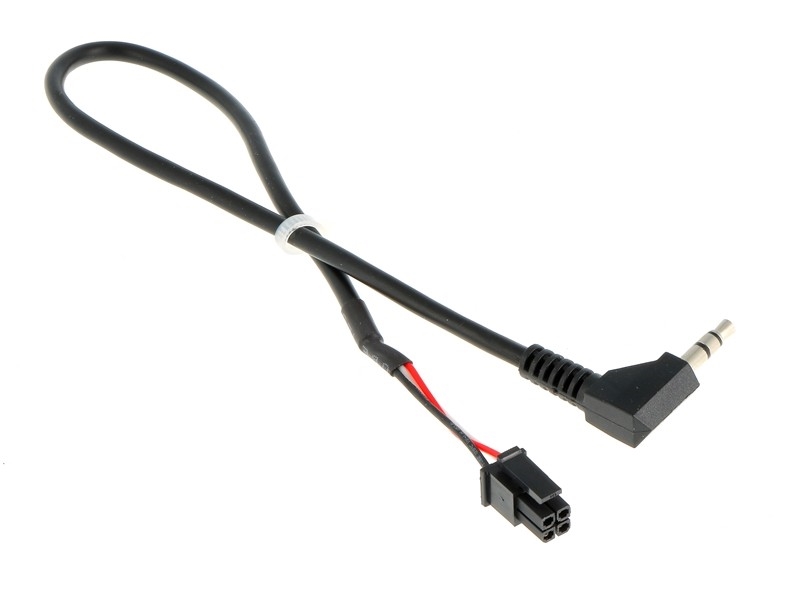

Radiokabel til PIONEER, SONY, BLAUPUNKT 2010> og KENWOOD 2017> Med 3,5mm jack, med 4 pin micro molex. passer til cx401 og 42a ratbetjeninger. Husk at indstille dipswitch på ratbetjeningen

Radio specific lead 42a / 42cx401 > Blaupunkt 2010> / Kenwood 2017> / Pioneer / Sony

HU manufacturers use different variants for connecting a steering wheel remote control interface.

Depending on the manufacturer and device, single-cable controls, two-cable and multi-cable controls as well as jack controls can be used.

The connection variant can be found in the manual of the HU manufacturer.

All connections must be done before connecting the interface to the vehicle.

If necessary, the SWC function must also be programmed in a HU menu according to the HU manufacturer manual.

Check for function before final assembly.

Note:

connector: 4 Pin Molex > 3,5mm Jack

SWC radio specific lead 42cx401 SWC interface 42a-xxxx-xxx
dip swiches (ON/OFF)

Use case:

Blaupunkt 2010> 3,5mm jack connector
Kenwood 2017> 3,5mm jack connector
Pioneer 3,5mm jack connector
Sony 3,5mm jack connector
Continental 3,5mm jack connector

DIP switches 42cx401:

Blaupunkt 2012> > (Sony/Pioneer) OFF/ON/OFF (OFF/ON/ON)
Kenwood 2017> > (Pioneer/Sony) OFF/ON/OFF (OFF/ON/ON)
Pioneer > OFF/ON/ON
Sony > OFF/ON/ON
Continental HU > ON/OFF/OFF
