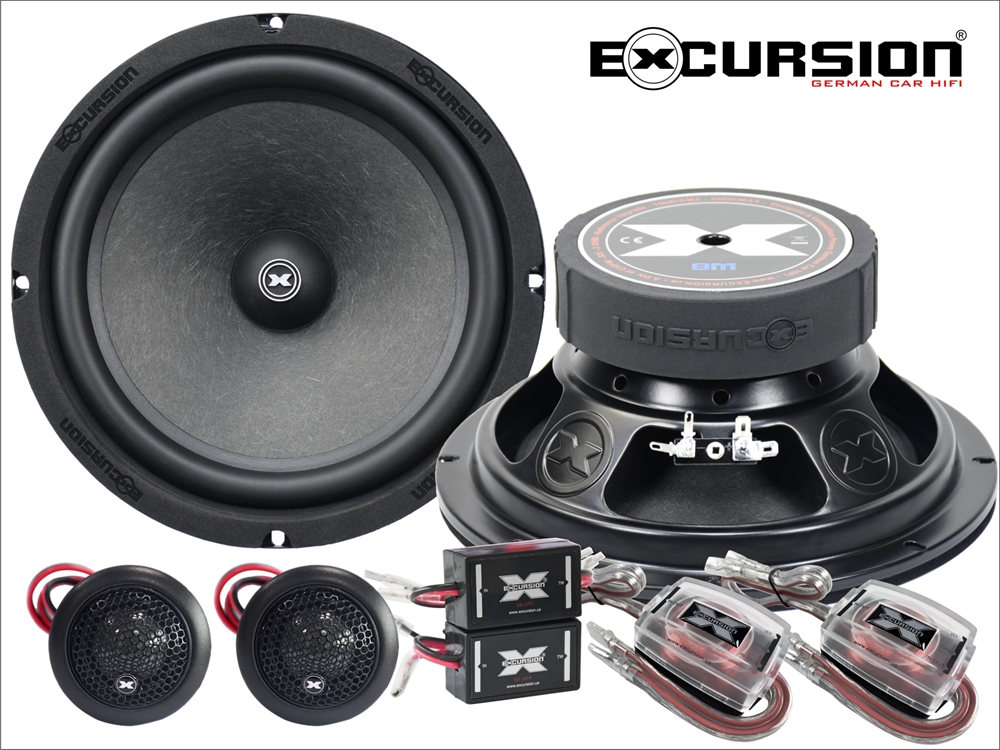

EXCURSION RX 8C ECO 8" REFERENCE COMPOSÆT 2-VEJS 2 OHM

EXCURSION REFERENCE SERIE ECO - 2Ohm
20cm DIN, 150 RMS / 400 Watt @ 95dB 1W/m
88mm ET (OEM Upgradespeaker)
35 Hz - 21 KHz Frequency Response - SET

SX 1S - 26mm Silk Dome Competition Tweeter
* 25mm Silk Dome Tweeter with ADC (Activ Damping Coating).
* Ferrofluid cooled OFC Voice Coil within a high efficient Neodym Motor system.
* 50cm presoldered high grade Plug&Play OFC (Oxygen Free Copper) Speakercable.
* praxis born Inline passiv Filter with 3M Sticker and minimized Dimension (44x25x19mm).
* high grade MKP Audio Capicator for outstanding improvement of the Soundresolution.
* optional 2/4/6/8/10dB per Oct. Resistor Module, XLR2 / XLR4 / XLR6 / XLR8 / XLR10.
* various installation accessoires for Tweeter flush or on dash mounting.

RX 8M - High End Midbass Loudspeaker
* 1.2" / 30.5 mm Copper VC @ top vented Kapton Former
* 60 Oz Motor Structure w. high grade Y35 Ferrite Magnet
* Dual Layer natural vital Wool Cone with Glasfibre stripe reinforcments and ADC Coating
* HDR (High Density & High Roll ) Rubytec Surrounds
* Phase Plugged Excursion Dustcap Design
* Pole Piece and bottom vented Excursion Steel Basket
* Selective high extension handcrafted NOMEX Spider
* PX-LPF Plug Crossover w. 14GA tinned OFC speaker cable.

Fs: 40Hz
SD: 216,8 sqCM
Vas: 38,55 Ltr
Cms: 590 µM/N
Mms: 18,5 g
Bl™: 5.64
Qms: 2.55
Qes: 0.35
Qts: 0.3

* praxis born Inline passiv Filter with 3M Sticker and minimized Dimension (50x37x24mm).
